CABLE REEL 32(50) MT AC MCP + 1POT 5PASS

1034545

Code: 45.90.0506XX.01

€3,878.28
tax excluded

(4731.50 € tax incl.)

Quantity

  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

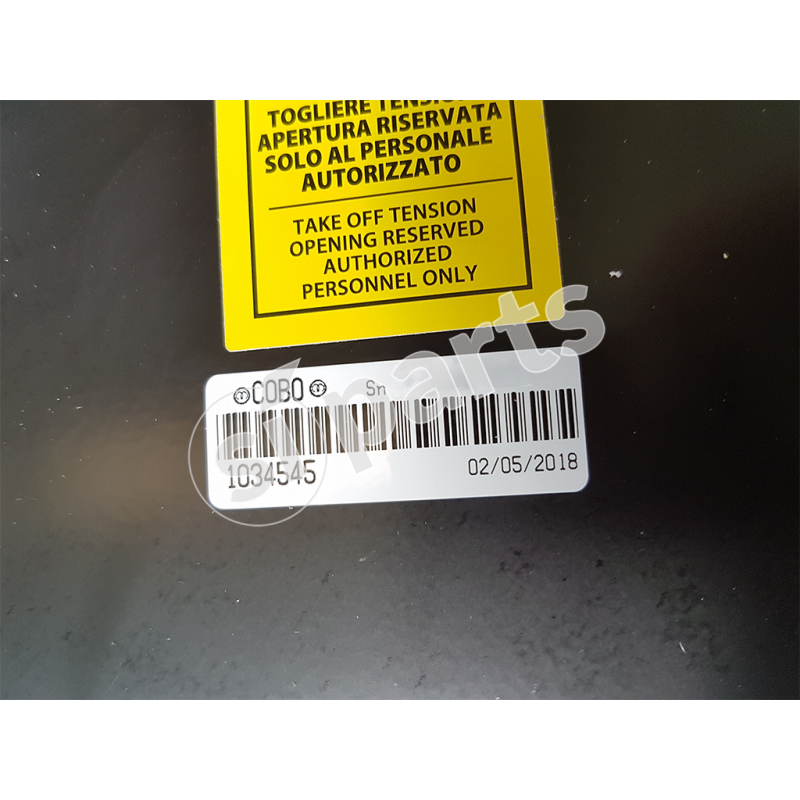

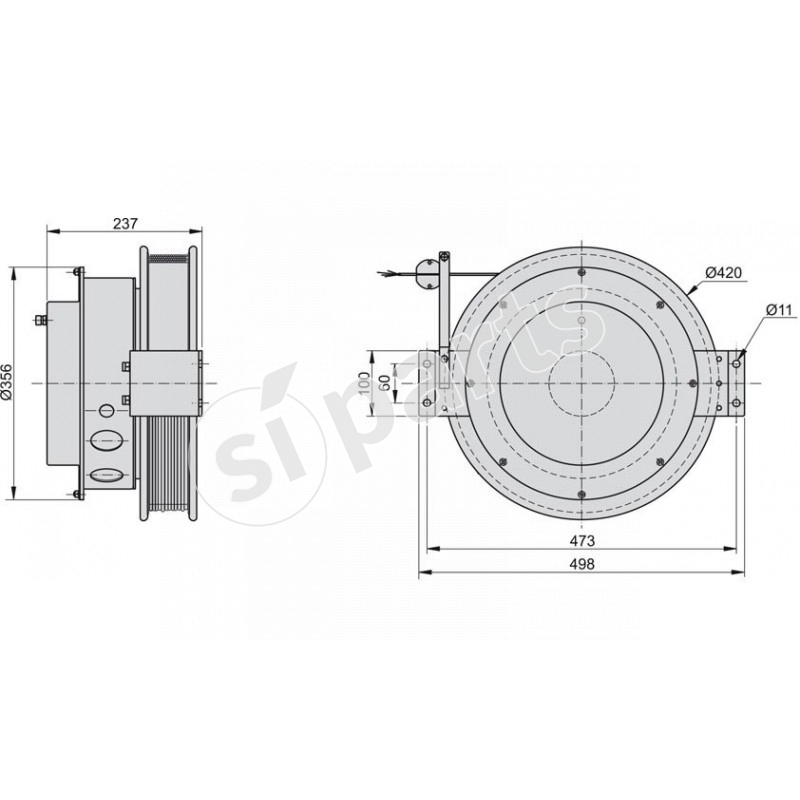

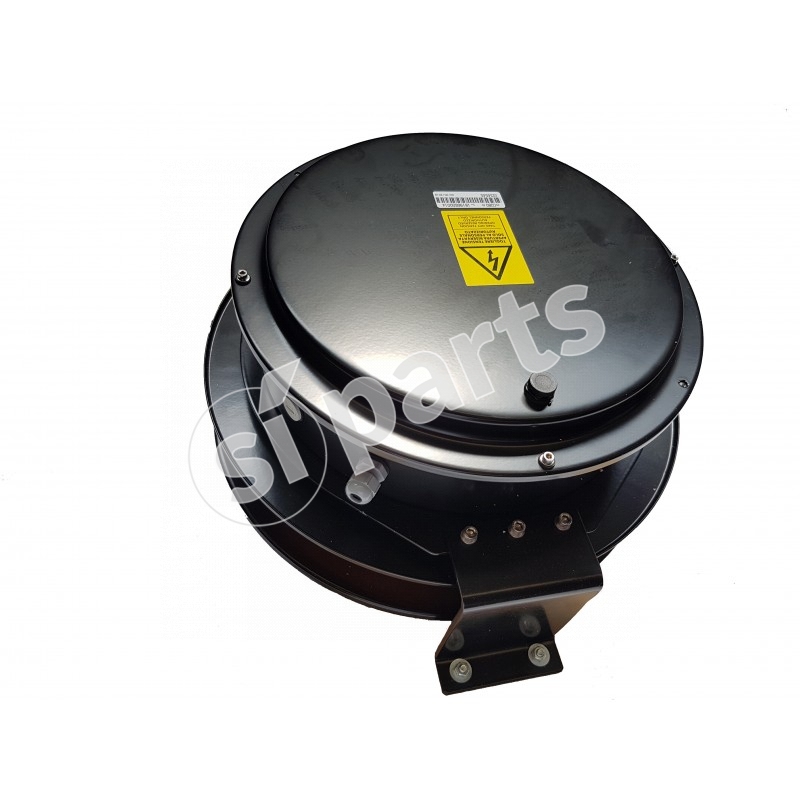

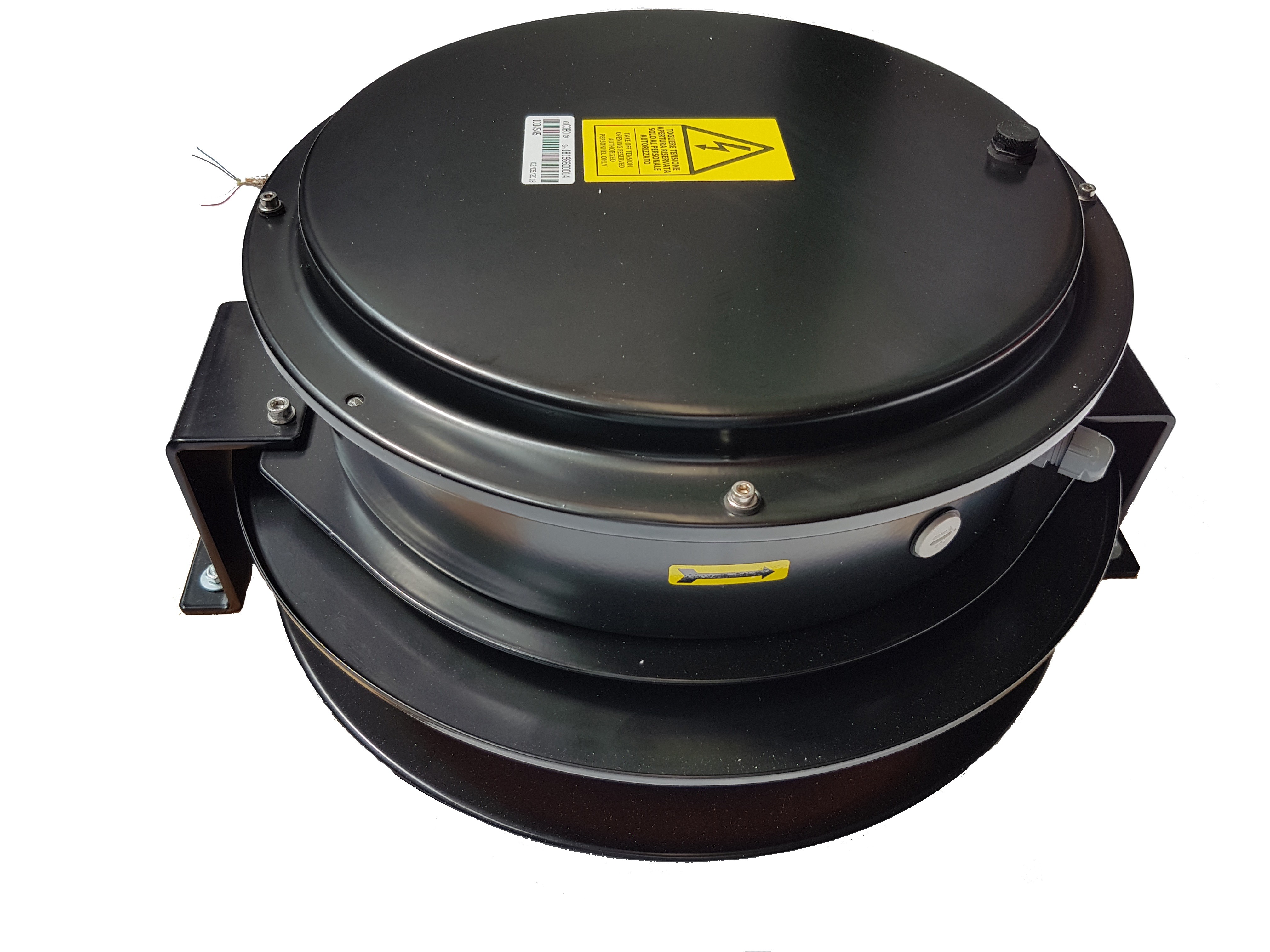

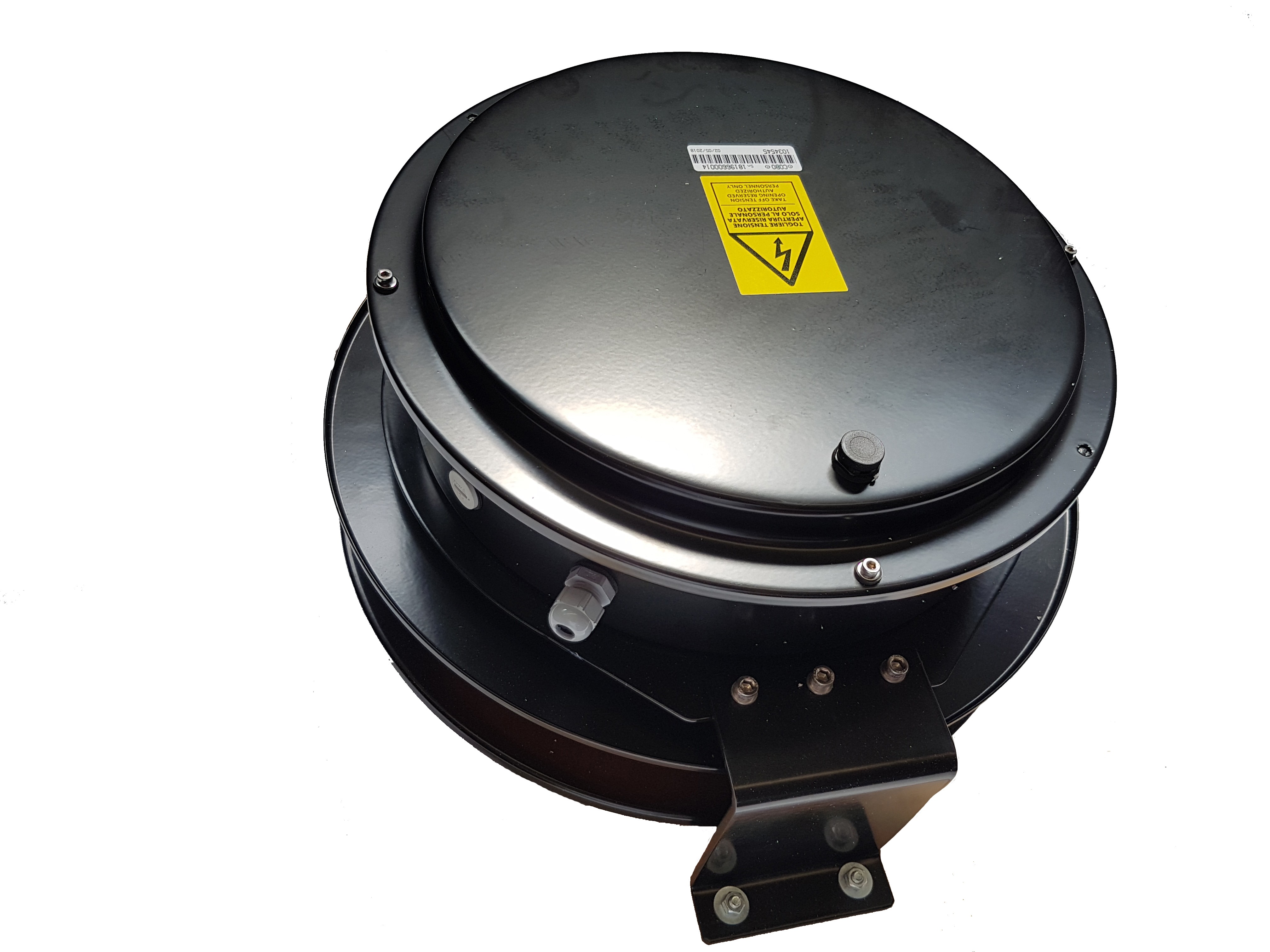

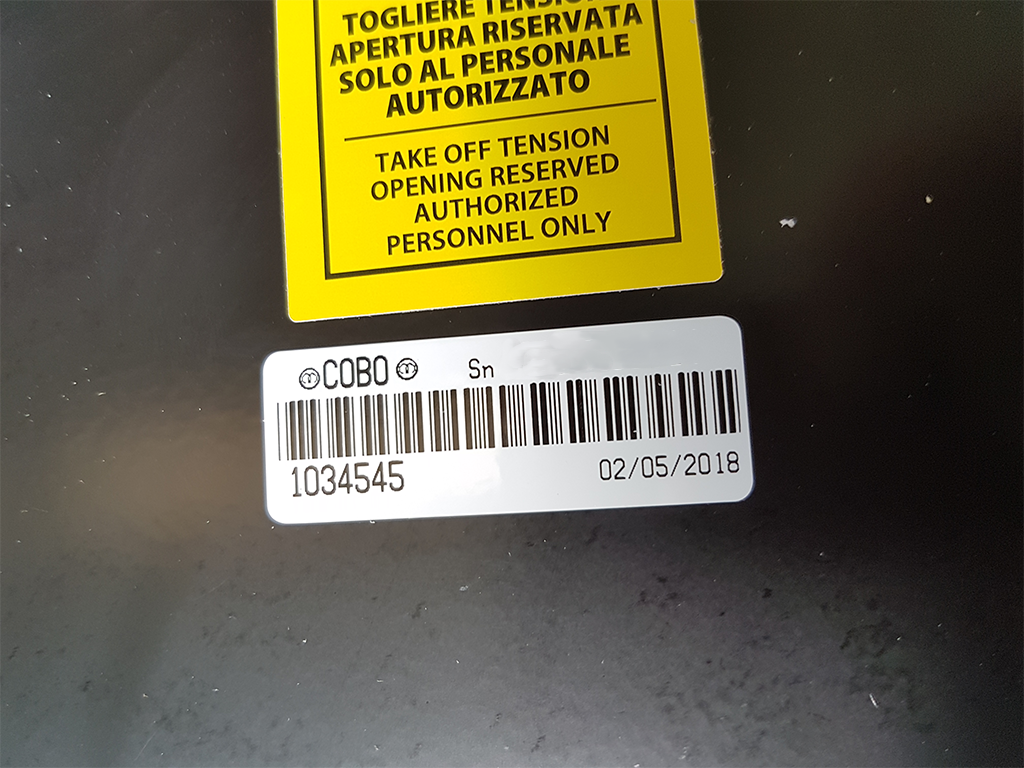

AC MCP CABLE REEL + 1POT

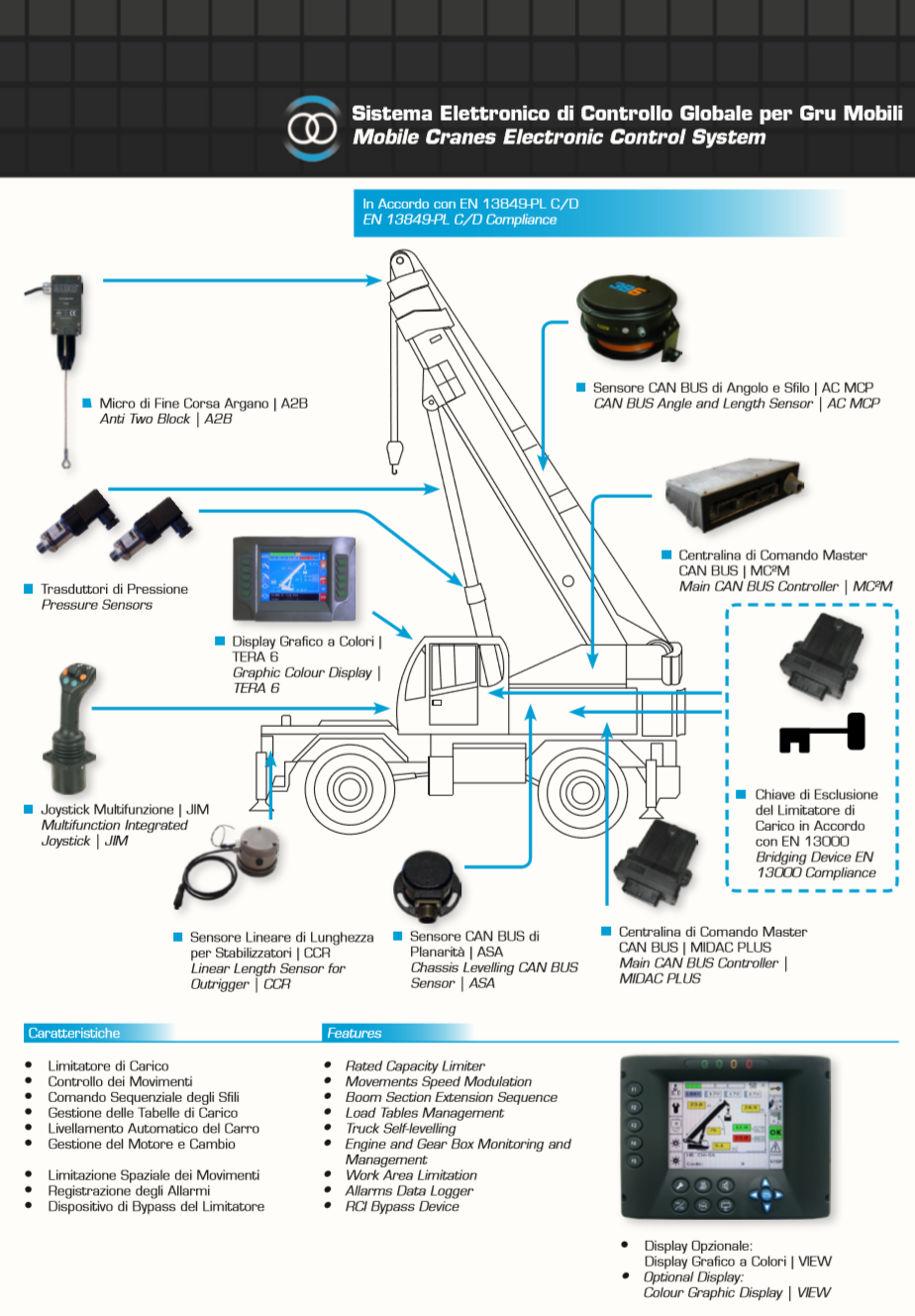

AC MCP cable reel is a product for length measuring from 32 to 50 mt. Its mechanical design has been studied for harsh environments and long endurance, typical of telescopic boom cranes. It is a basic part of a safety system, thanks to its high MTTF value, and it has different sensor configurations for different applications. Versions available with slip ring collector for additional electrical signals transportation.

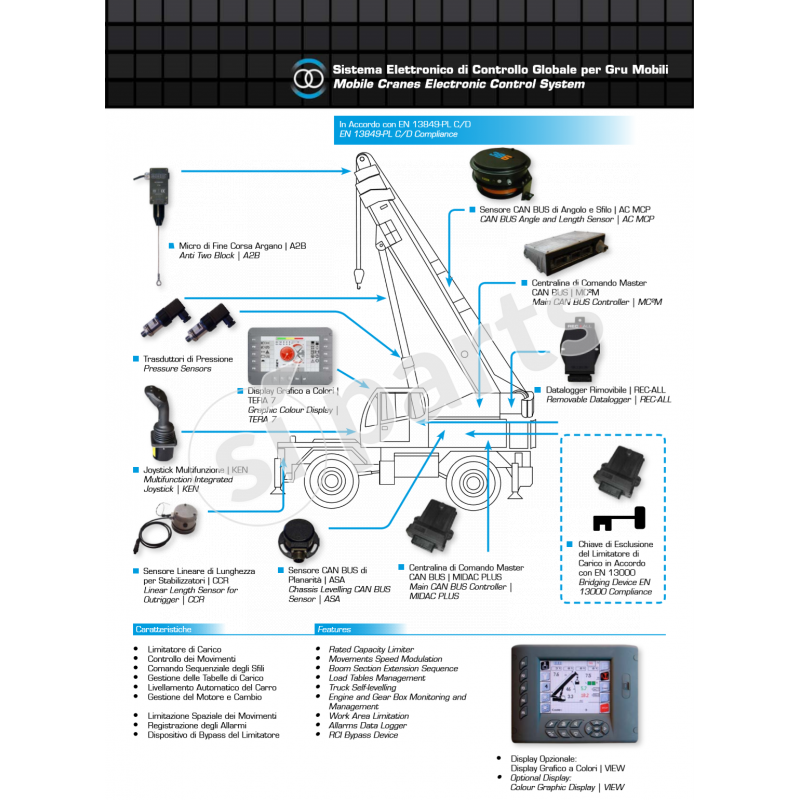

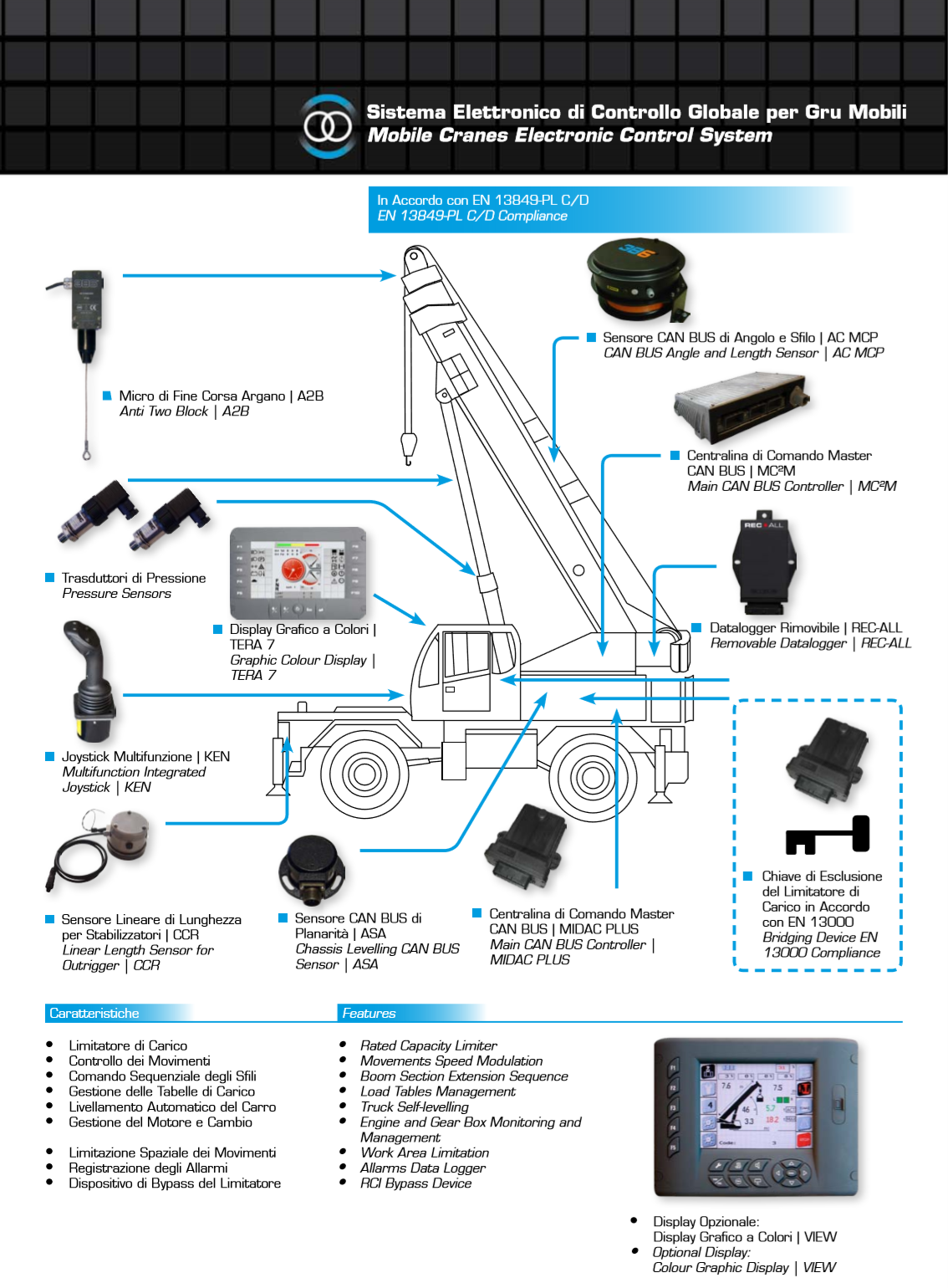

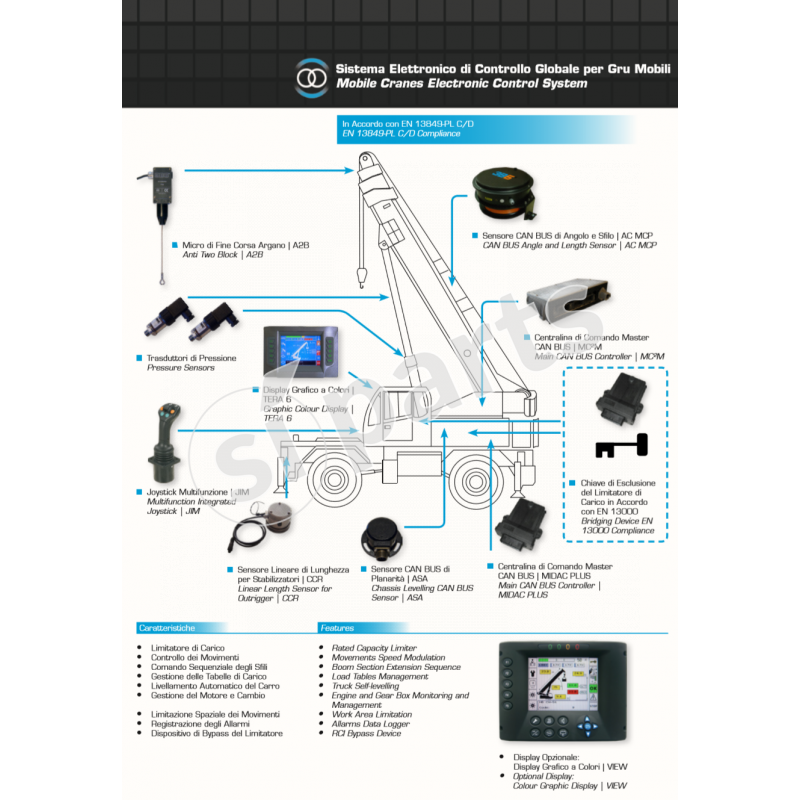

Typical applications are boom length measurement for medium and big crabe size.

1P: equipped with a single potentiometer for length measurement with analogue output, for an easy integration in any system.

Technical specifications
Slip-ring: Available 15 A gold plated slip-ring
Number of way: 4
Rated current: 15A
Operating temperature: - 20 + 70°C (-4 .. +158 °F)
Electrical wire
Description: 26 AWG bare copper strand, heavy duty kevlar
reinforced cable
Wire gauge: 0.14 mm2 (26 AWG)
Insulating material: thermoplastic solid polypropilene
Internal wires color: blue, white, red, brown
Outer jacket color: orange
Shield: tinned copper braid, (shielding 85 -90%)
Jacket material: thermoplastic PUR/other base polymer (TPE-U) resistant to oil, hydrolisis and abrasion with MATT surface
External nominal diameter: 4.1 ±0.1 mm
Electrical resistance @ 20 °C (68 °F): <148 ohm> Test voltage: 1000 V
Nominal voltage: 50 V
Minimum bending radius: 42 mm
Operating temperature: - 40 .. +80 °C (-40 .. +176 °F)
Minimum breaking strength: 40 Kg

Additional resources
(*1)
3 analogue inputs with 0 .. 5 V voltage range, 12 bit resolution
3 analogue inputs with 0 .. 30 V voltage range, 12 bit resolution
1 RPM input, high side type
1 auxiliary output 15 V 100 mA
(*2)
2 analogue inputs with 0 .. 5 V voltage range, 12 bit resolution
LENGTH SENSOR
0-100
MEASURING RANGE
12, 19, 32, 42 m
CONNECTION
WIRE TERMINAL BLOCK
INCLINOMETER
NO
B10D
>= 2.8*10^4 cycles 0 ..100% FS
LENGTH SENSOR DETAIL
1 x 0 .. 2 kOhm potentiometer
POTENTIOMETER LINEARITY
0.15%
POTENTIOMETER TOLLERANCE
5%
MAXIMUM POWER DISSIPATION
2.0 W @ 25 °C +77 °F
MAXIMUM MEASUREMENT CURRENT
50 mA @ 25 °C +77 °F
POTENTIOMETER TEMPCO
20 ppm / °C
CABLE DIAMETER
4 mm
MAX OUTPUT CABLE SPEED
30 m/s
SLIP-RING OPTION
Yes
ADDITIONAL RESOURCES OPTION
No
SEALING ACCORDIN TO DIN40050
IP65
TEMPERATURA D'IMPIEGO °C
-20 .. +70 °C -4 .. +158 °F optional -40 .. +70 °C -40 .. +158 °F
STORAGE TEMPERATURE
-40 .. +85 °C -40 .. 185°F
VIBRATION ENDURANCE TO EN 60068-2-6
10 .. 500 Hz, @ 98 m/s2, amplitude ±7.5 mm, 2h for each axis
MECHANICAL SHOCK ENDURANCE TO EN 60068-2-7
25 g for 6 ms semisinusoidal, 4000 positive and 4000 negative pulses
CERTIFICATIONS
EN61000-6-2, -4
WEIGHT
Aprox 23 kg for 32 m version, to aprox 40 kg for 50 m version
OUTPUT SIGNAL
resistance 0 .. 2 kOhm
APPLICATIONS

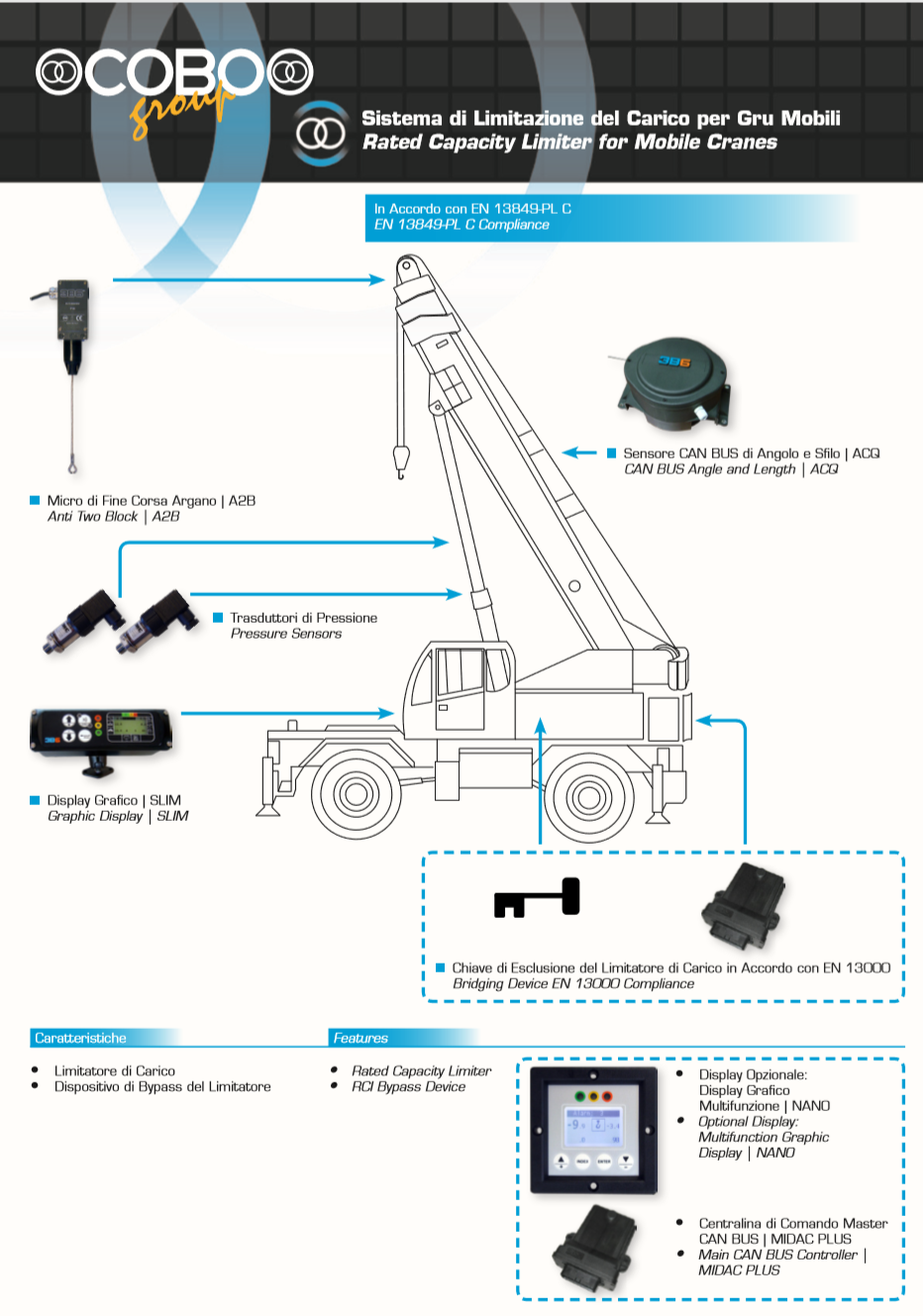

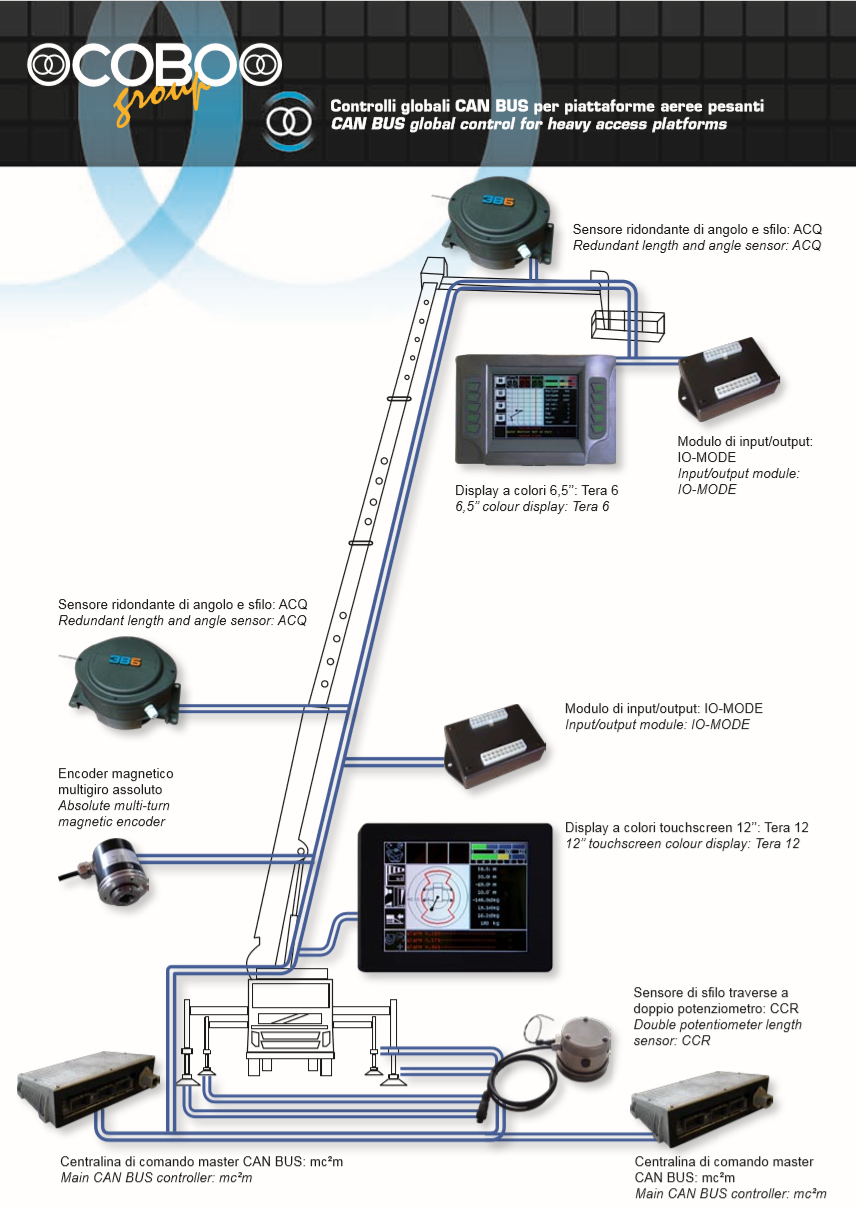

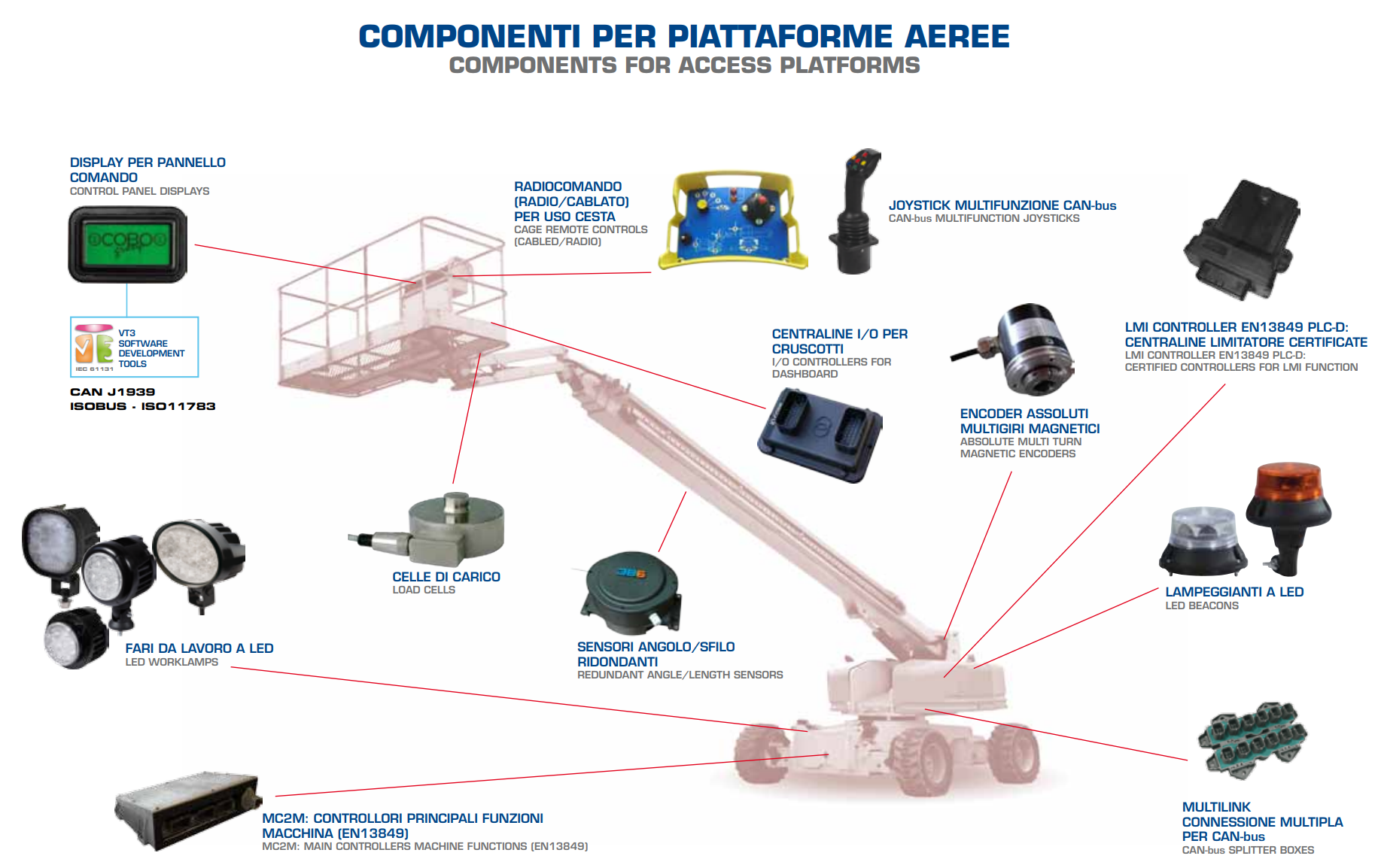

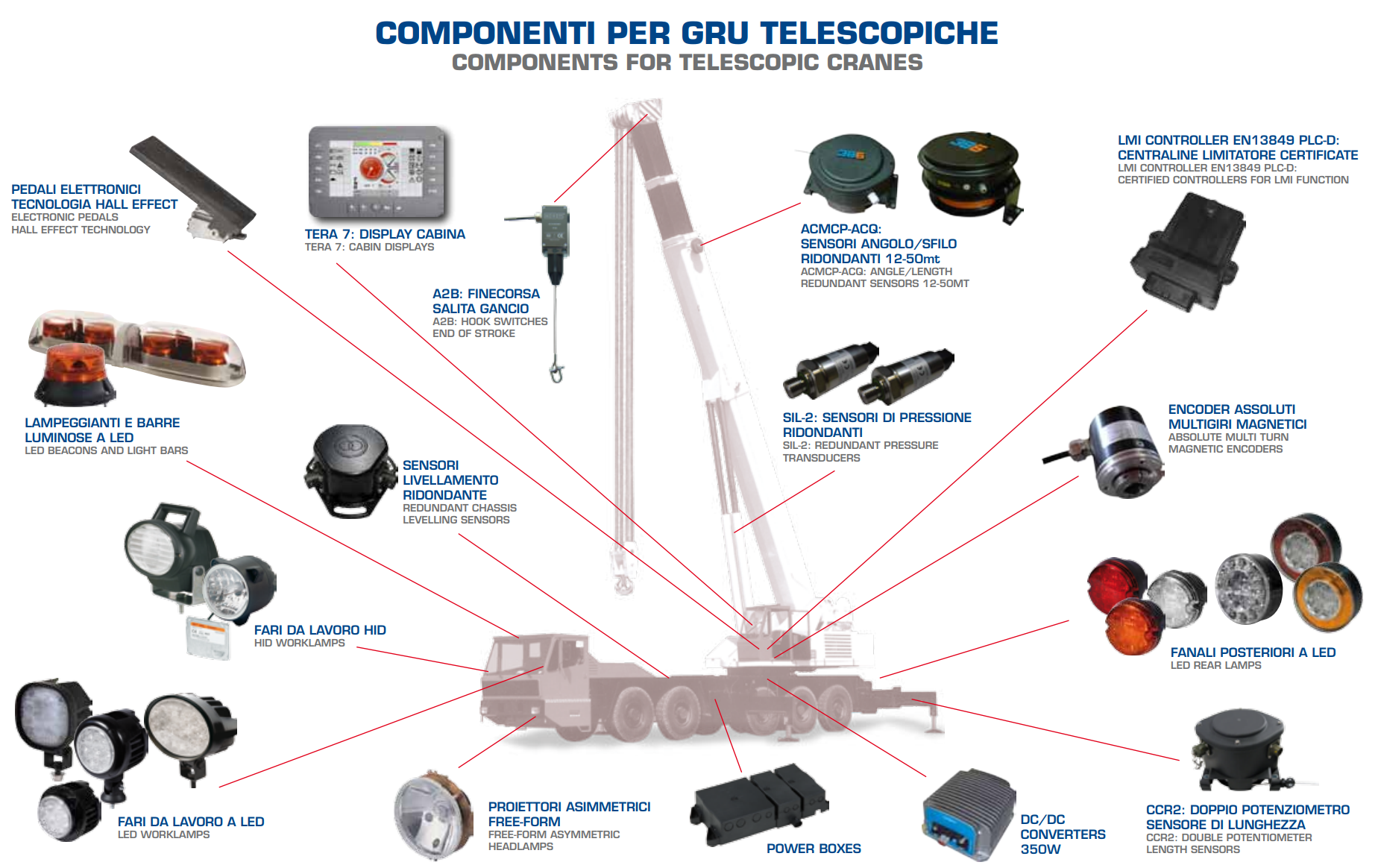

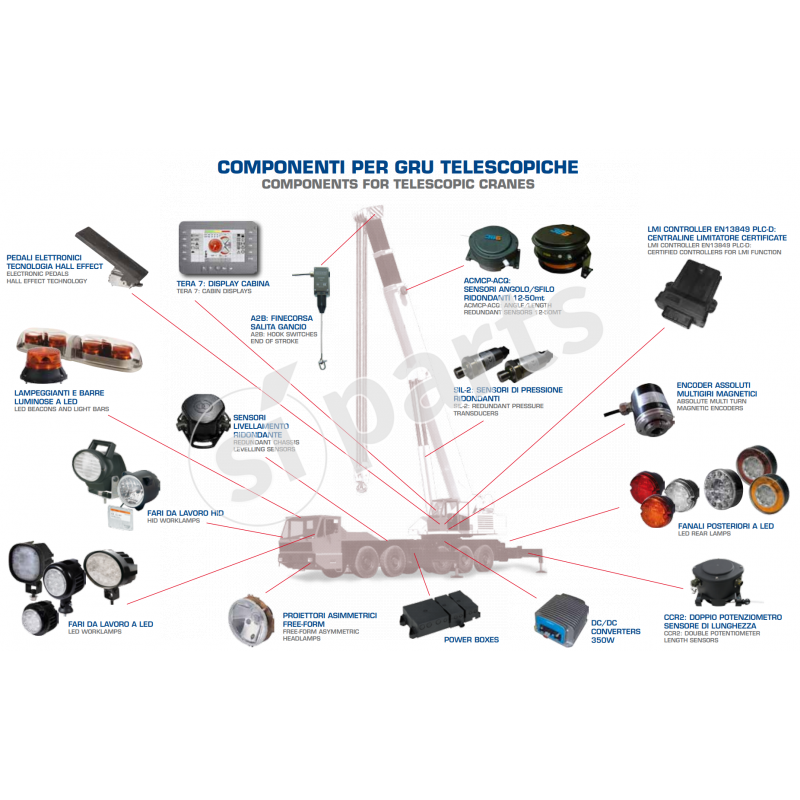

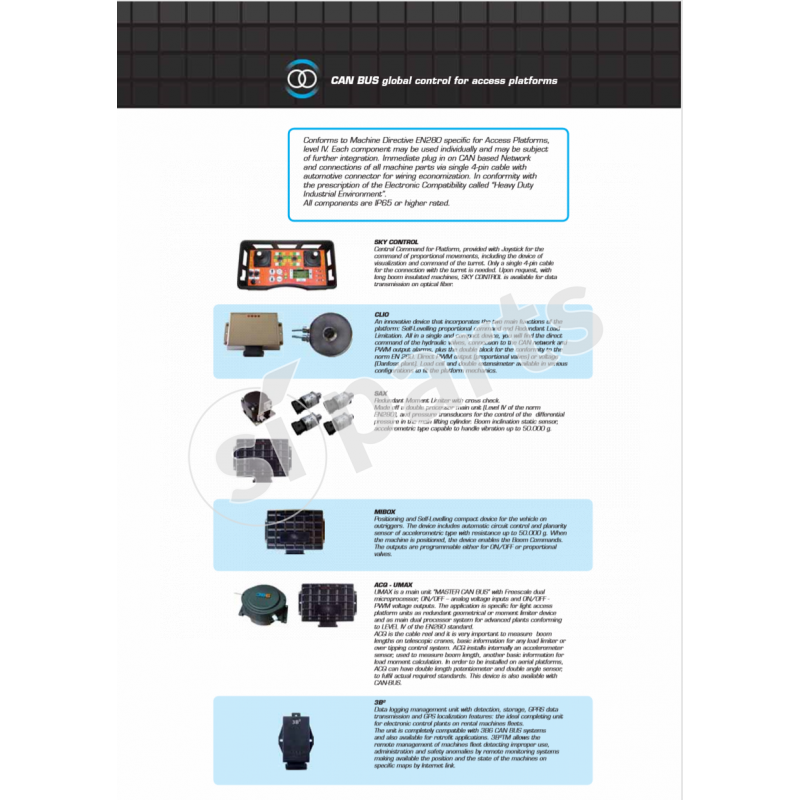

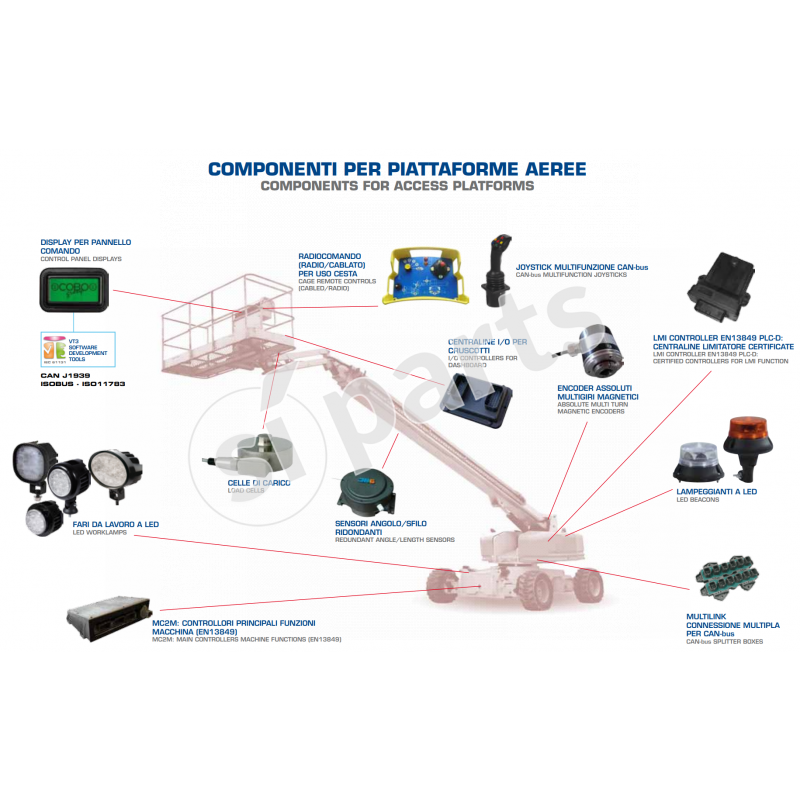

Components for access platforms telescopic - cranes

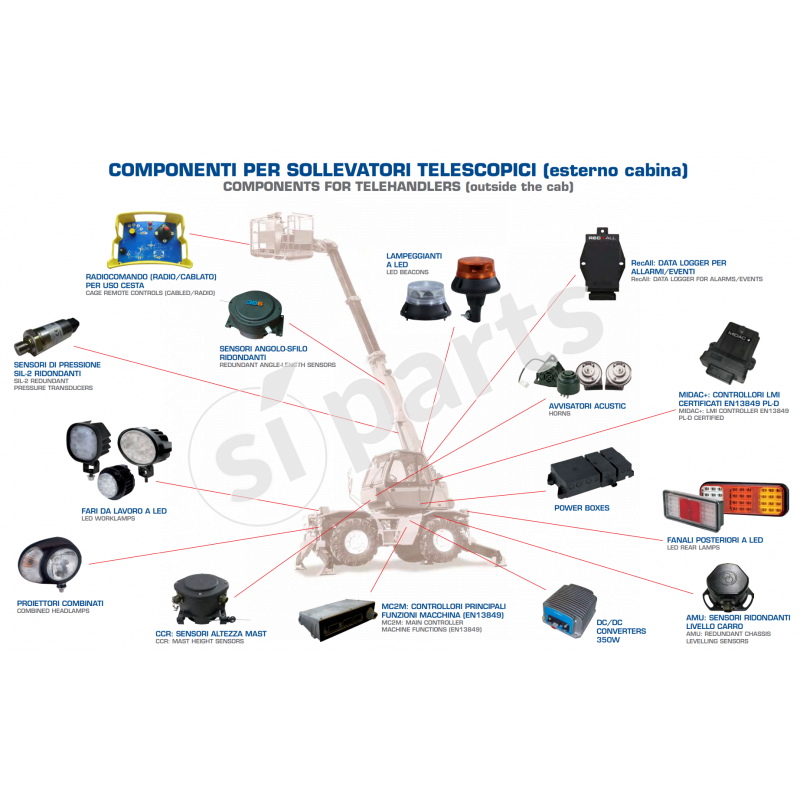

Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
