LOAD CELL AMPLIFIER (ENTRY LEVEL) AOL SERIES

3B6 (Original product)
1031702

Code: 42.20.0100A0.01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

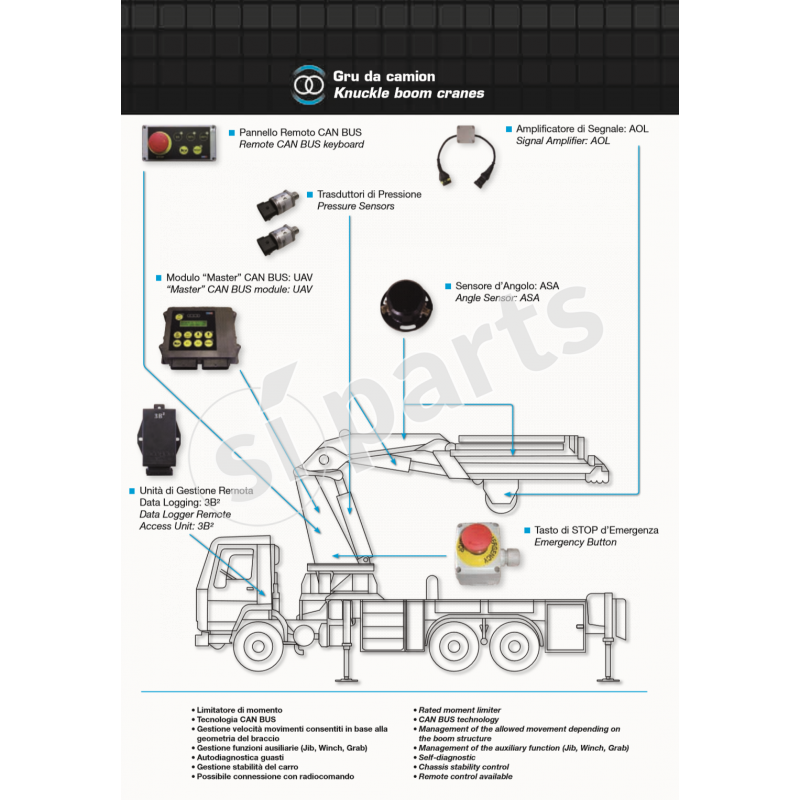

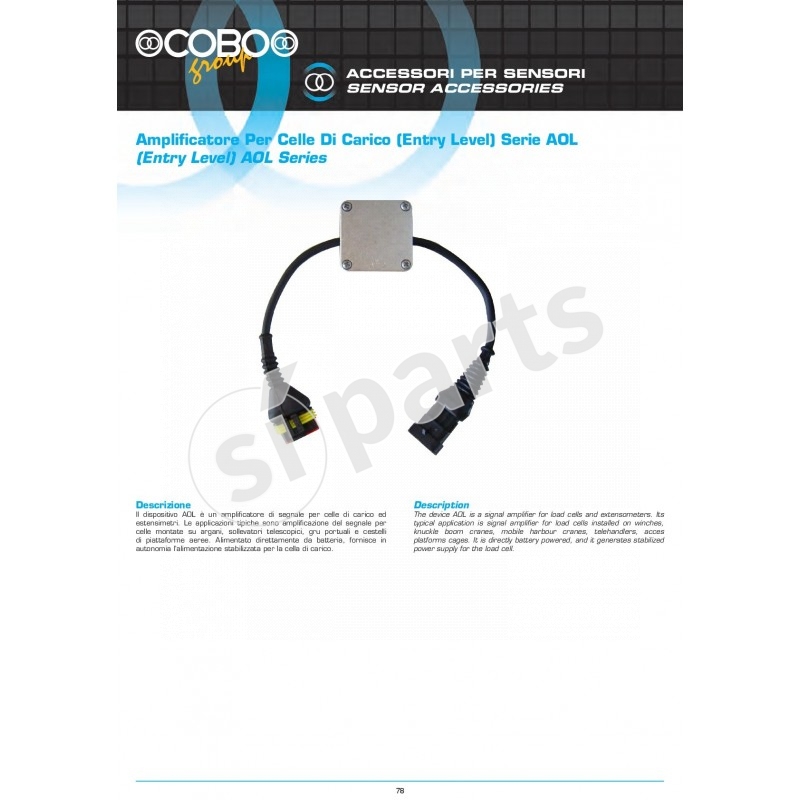

Description The device AOL is a signal amplifier for load cells and extensometers. Its typical application is signal amplifier for load cells installed on winches, knuckle boom cranes, mobile harbour cranes, telehandlers, access platforms cages. It is directly battery powered, and it generates stabilized power supply for the load cell.

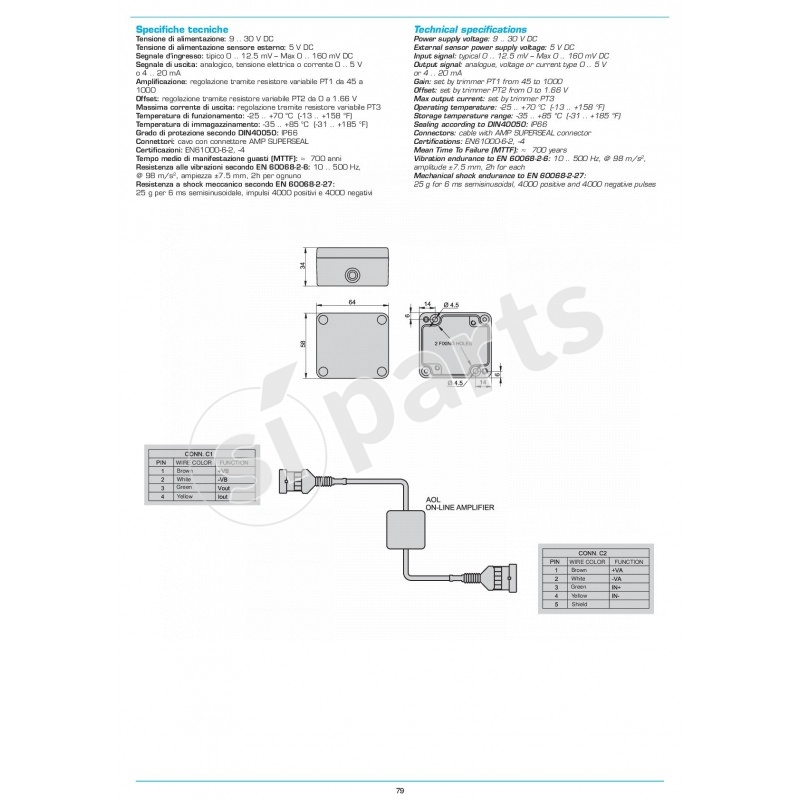

POWER SUPPLY VOLTAGE V
9 .. 30 V DC 5 V DC EXTERNAL SENSOR
INPUT SIGNAL
typical 0 .. 12.5 mV Max 0 .. 160 mV DC
OUTPUT SIGNAL
ANALOGUE, VOLTAGE OR CURRENT TYPE 0 .. 5 V OR 4 .. 20 MA
GAIN
SET BY TRIMMER PT1 FROM 45 TO 1000
OFFSET
set by trimmer PT2 from 0 to 1.66 V
MAX OUTPUT CURRENT
set by trimmer PT3
TEMPERATURA D'IMPIEGO °C
-25 .. +70 °C -13 .. +158 °F
STORAGE TEMPERATURE
-35 .. +85 °C -31 .. +185 °F
SEALING ACCORDIN TO DIN40050
IP66

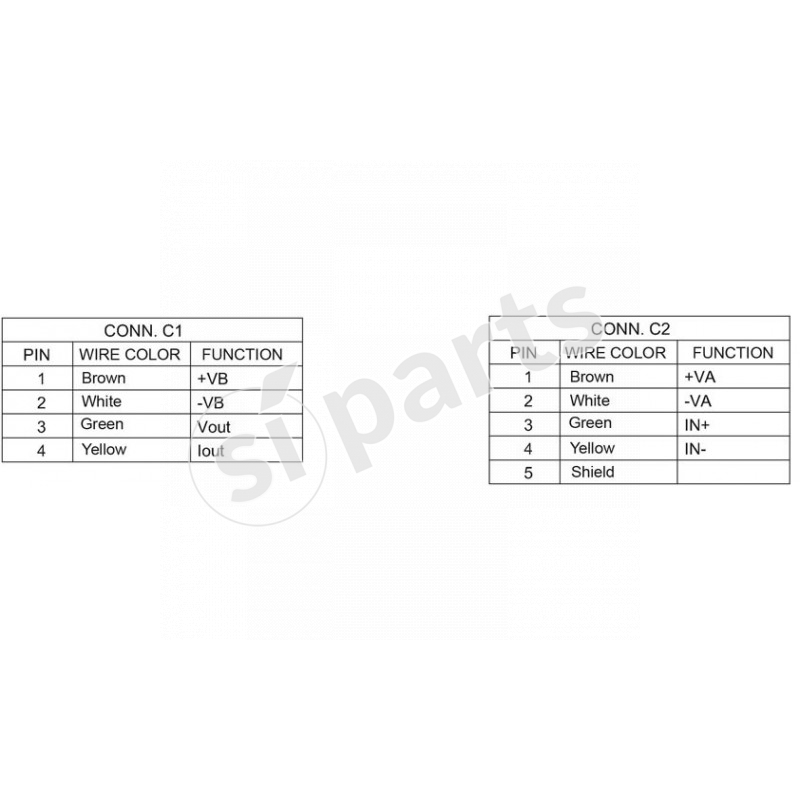

CONNECTOR TYPE
CABLE WITH AMP SUPERSEAL CONNECTOR
CERTIFICATIONS
EN61000-6-2, -4
MEAN TIME TO FAILURE MTTF
700 YEARS
VIBRATION ENDURANCE TO EN 60068-2-6
10 .. 500 Hz, @ 98 m/s2, amplitude ±7.5 mm, 2h for each
MECHANICAL SHOCK ENDURANCE TO EN 60068-2-7
25 g for 6 ms semisinusoidal, 4000 positive and 4000 negative pulses
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
