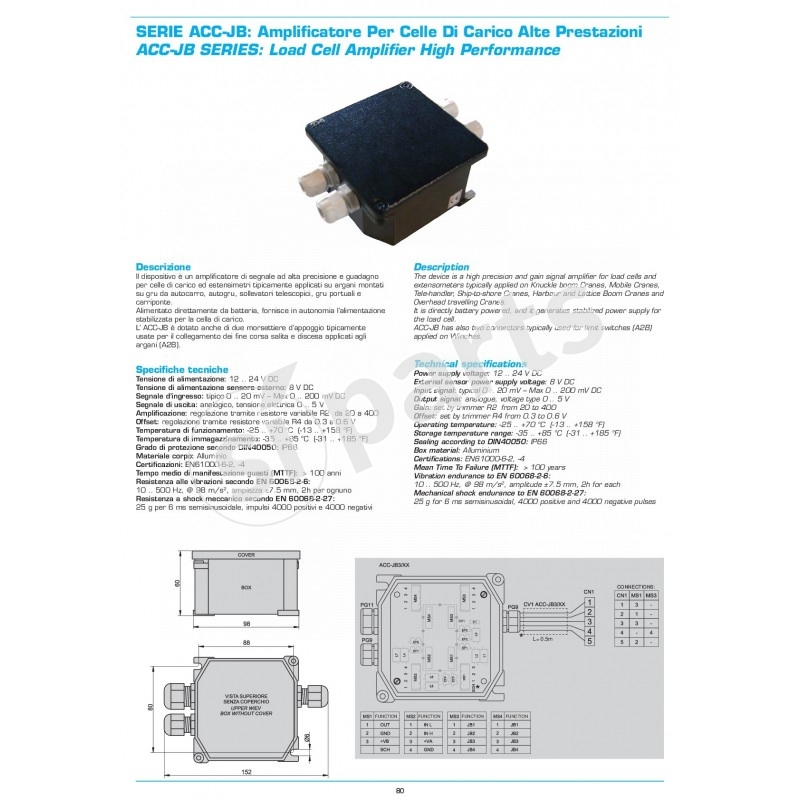

ACC-JB SERIES: LOAD CELL AMPLIFIER HIGH PERFORMANCE
Description The device is a high precision and gain signal amplifier for load cells and extensometers typically applied on Knuckle boom Cranes, Mobile Cranes, Tele-handler, Ship-to-shore Cranes, Harbour and Lattice Boom Cranes and Overhead travelling Cranes.
It is directly battery powered, and it generates stabilized power supply for the load cell.

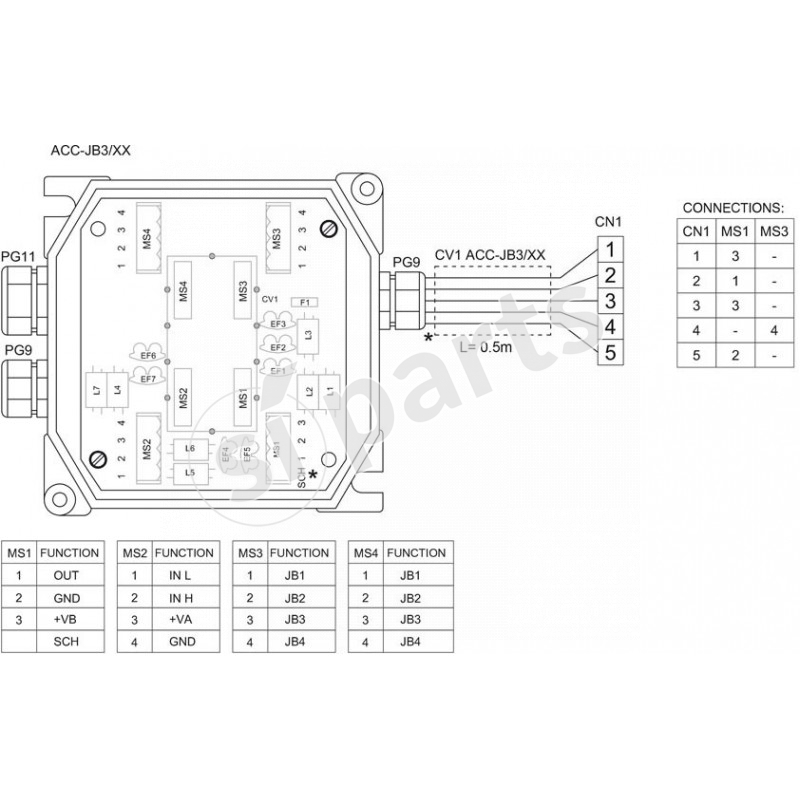

ACC-JB has also two connectors typically used for limit switches (A2B) applied on Winches.
It is directly battery powered, and it generates stabilized power supply for the load cell.
ACC-JB has also two connectors typically used for limit switches (A2B) applied on Winches.
POWER SUPPLY VOLTAGE V
12 .. 24 V DC 8 V DC EXTERNAL SENSOR
INPUT SIGNAL
typical 0 .. 20 mV Max 0 .. 200 mV DC
OUTPUT SIGNAL
ANALOGUE, VOLTAGE TYPE 0 .. 5 V
GAIN
SET BY TRIMMER R2 FROM 20 TO 400
OFFSET
SET BY TRIMMER R4 FROM 0.3 TO 0.6 V
TEMPERATURA D'IMPIEGO °C
-25 .. +70 °C -13 .. +158 °F
STORAGE TEMPERATURE
-35 .. +85 °C -31 .. +185 °F
SEALING ACCORDIN TO DIN40050
IP66
HOUSING MATERIAL
ALUMINIUM
CERTIFICATIONS
EN61000-6-2, -4
MEAN TIME TO FAILURE MTTF
> 100 years
VIBRATION ENDURANCE TO EN 60068-2-6
10 .. 500 Hz, @ 98 m/s2, amplitude ±7.5 mm, 2h for each
MECHANICAL SHOCK ENDURANCE TO EN 60068-2-7
25 g for 6 ms semisinusoidal, 4000 positive and 4000 negative pulses
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
serie.acc.jb
Code: serie.acc.jb
