CIAM PRODUCTS- Original product

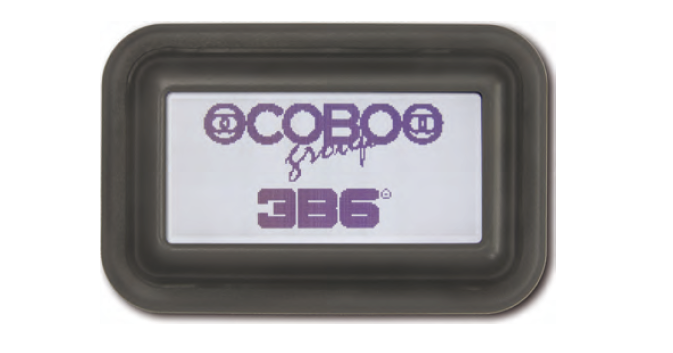

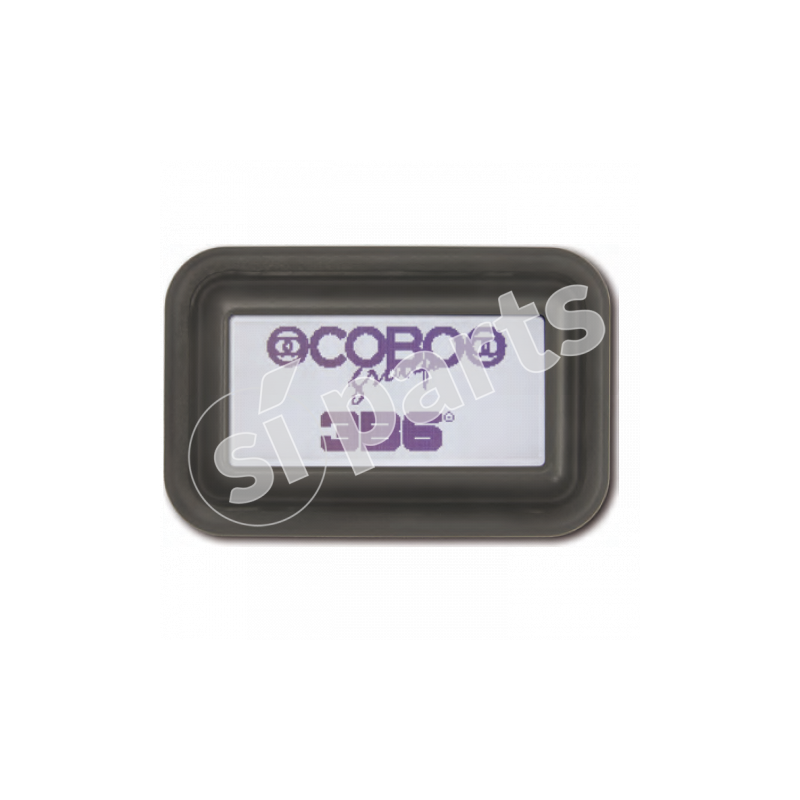

canview 3+ interlocking display
model interlocking, black frame, white backlighting, no touchscreen.
available in the following versions:
- p/n 06512026, new code 1017604, interlocking, black frame, green backlighting, no touchscreen.
- p/n 06512027, new code 1017605, interlocking, grey frame, green backlighting, touchscreen.
- p/n 06512030, new code 1017609, interlocking, black frame, yellow/green backlighting, no touchscreen.
- p/n 06512031, new code 1017611, interlocking, black frame, yellow/green backlighting, touchscreen.
- p/n 06512034, new code 1017621, interlocking, white frame, white backlighting, no touchscreen.
- p/n 06512035, new code 1017622, interlocking, white frame, white backlighting, touchscreen.
- p/n 06512038, new code 1017626, interlocking, black frame, white backlighting, touchscreen.
- p/n 06512041, new code 1017640, interlocking, grey frame, white backlighting, no touchscreen.
- p/n 06512042, new code 1017643, interlocking, black frame, green backlighting, touchscreen.

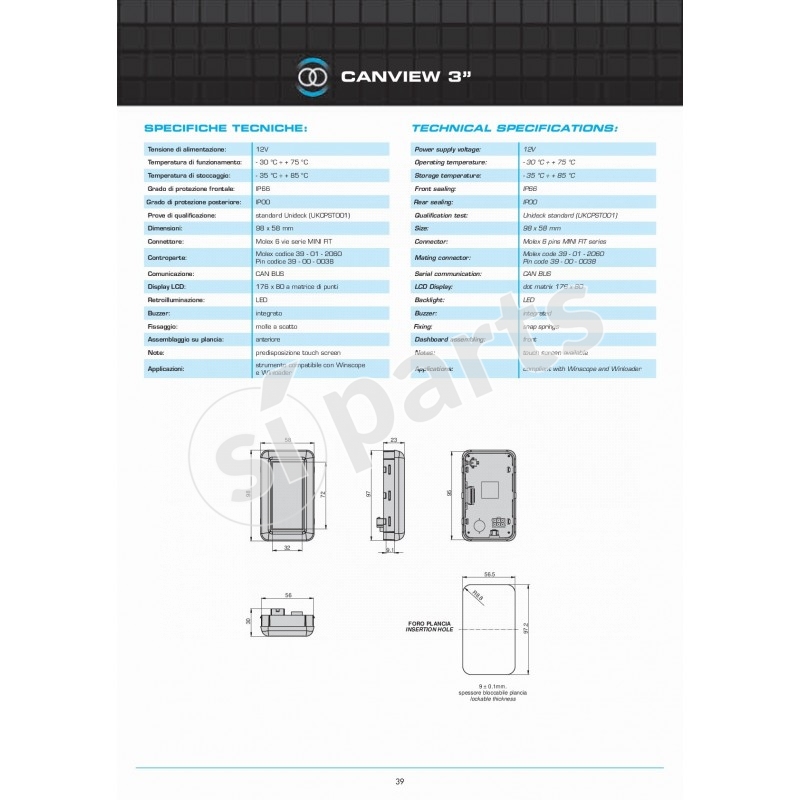

power supply voltage v
9 - 32v
operating temperature
- 30 °c ÷ + 75 °c
storage temperature
- 35 °c ÷ + 85 °c
front sealing
ip66
rear sealing
ip65
qualification test
unideck standard ukcpst001

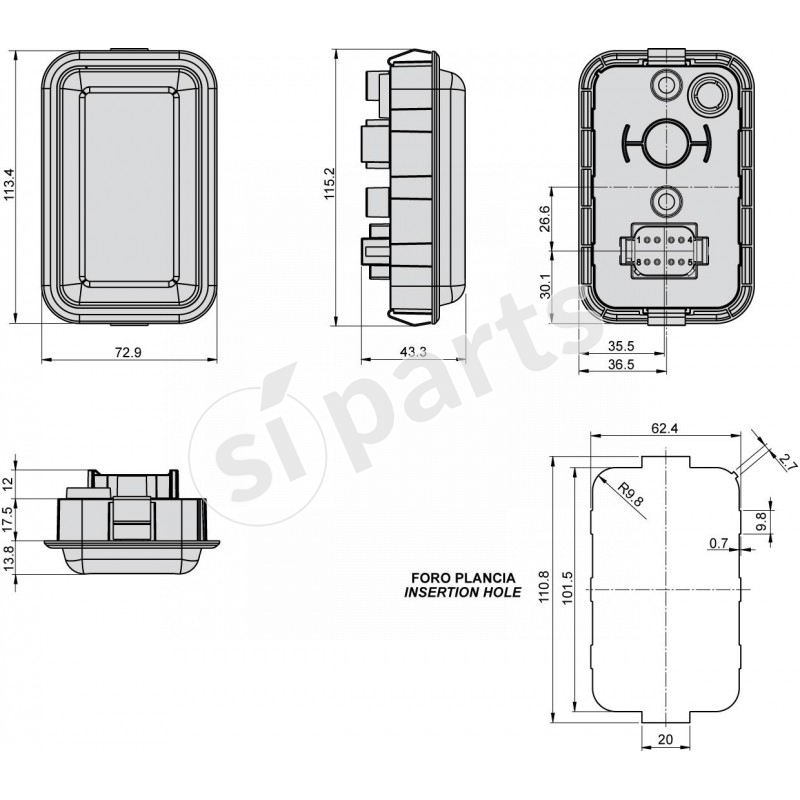

dimensions mm
113,4 x 72,9 mm
connector
1 x deutsch dt series 8 pins
counterpart
deutsch dt06-08sa
communication
1 line can-bus
backlight
led
buzzer
integrated
fixing
panel mount with snap springs
display lcd
dot matrix 176 x 80
APPLICATIONS

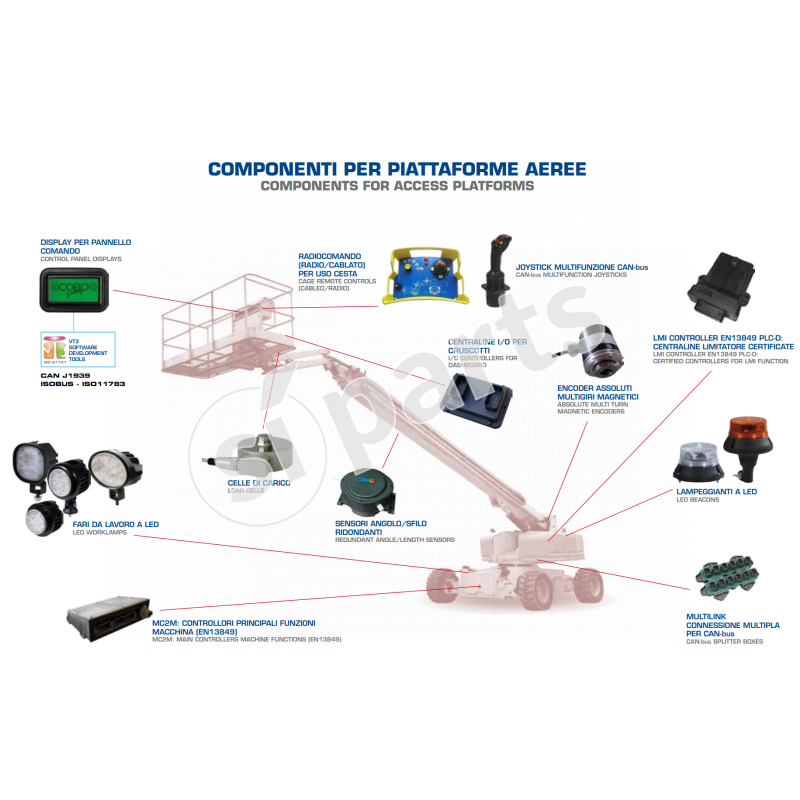

Components for access platforms telescopic - cranes
Telehandlers

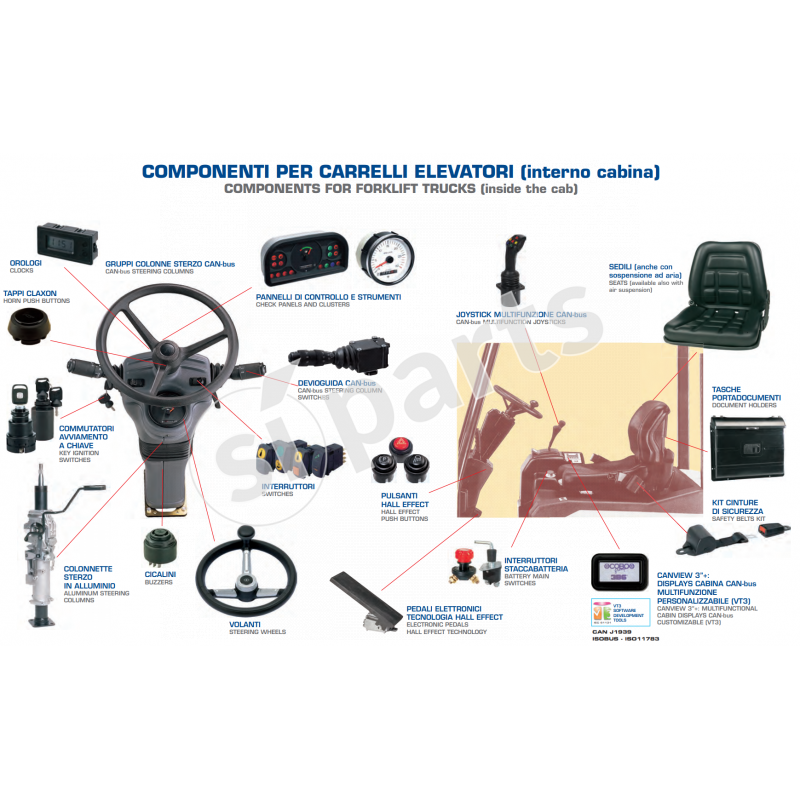

Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1017599
Code: 06512024
