CIAM PRODUCTS- Original product

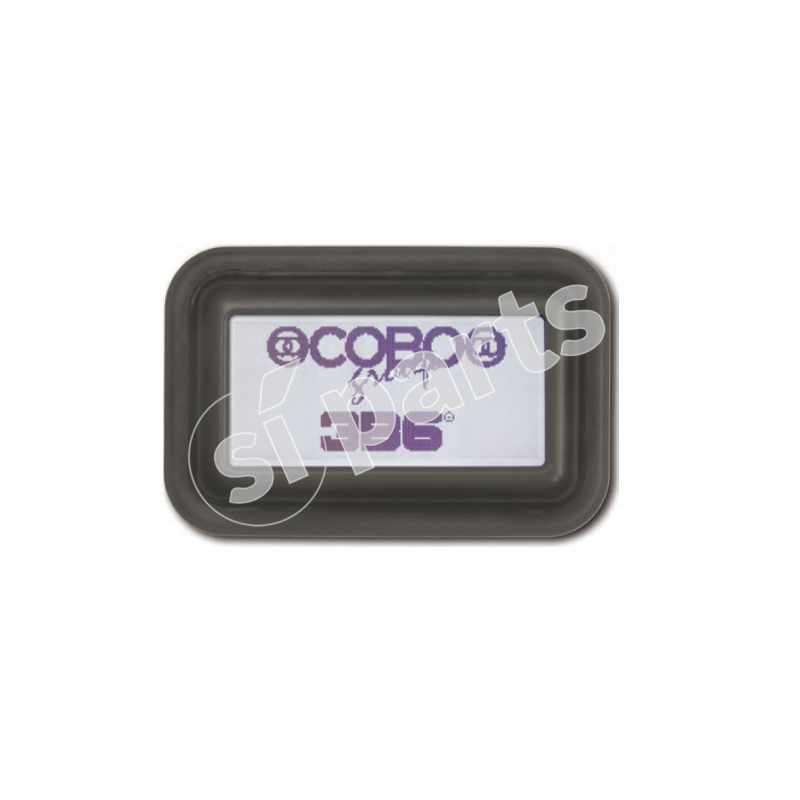

DISPLAY CANVIEW 3+ WITH BRACKET

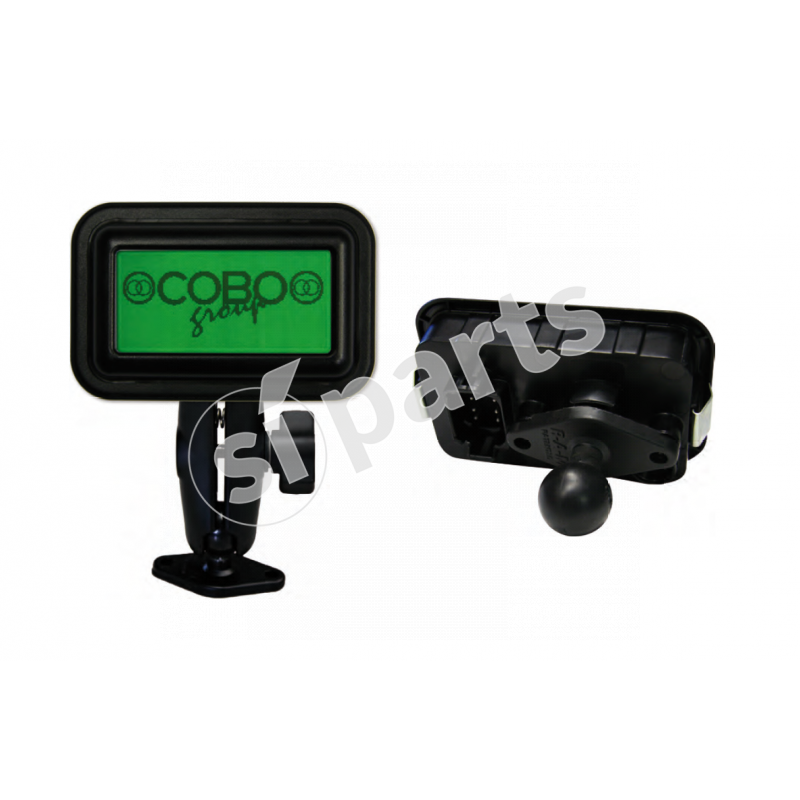

Version with bracket intended with ram bracket, BRACKET NOT INCLUDED.
Model WITH BRACKET, BLACK FRAME, WHITE BACKLIGHTING, NO TOUCHSCREEN.

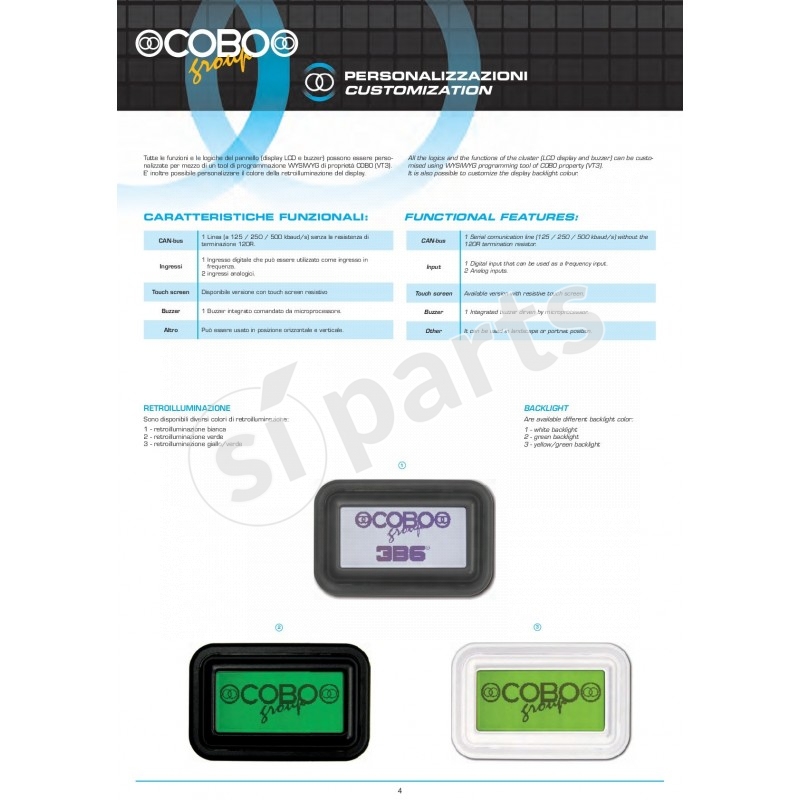

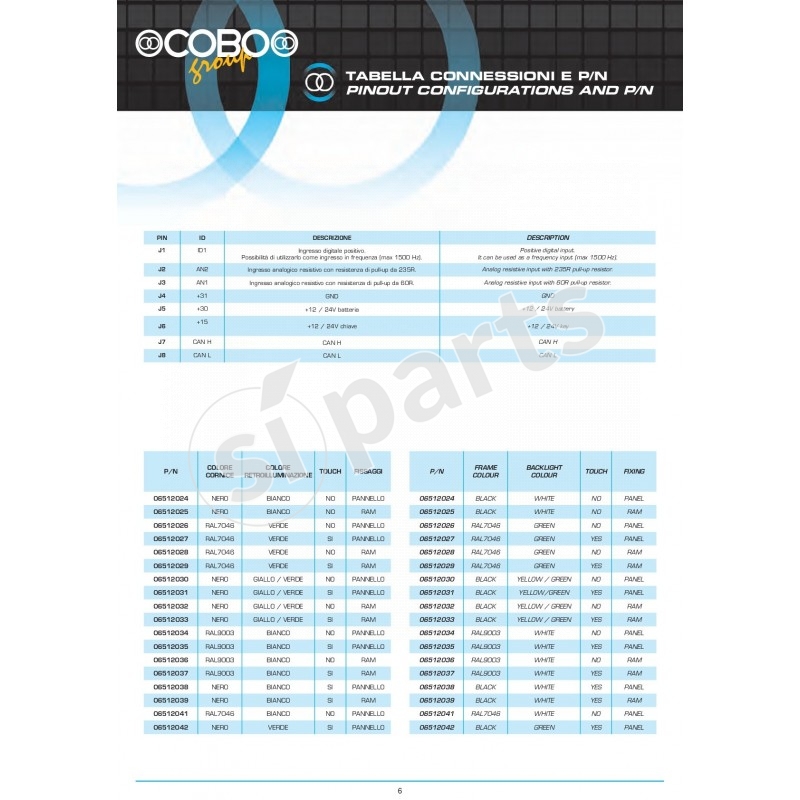

Available in the following versions:
- P/N 06512028, NEW Code 1017606, WITH BRACKET, GREY FRAME, GREEN BACKLIGHTING, NO TOUCHSCREEN.
- P/N 06512029, NEW Code 1017607, WITH BRACKET, GREY FRAME, GREEN BACKLIGHTING, TOUCHSCREEN.
- P/N 06512032, NEW Code 1017615, WITH BRACKET, BLACK FRAME, YELLOW/GREEN BACKLIGHTING, NO TOUCHSCREEN.
- P/N 06512033, NEW Code 1017617, WITH BRACKET, BLACK FRAME, YELLOW/GREEN BACKLIGHTING, TOUCHSCREEN.

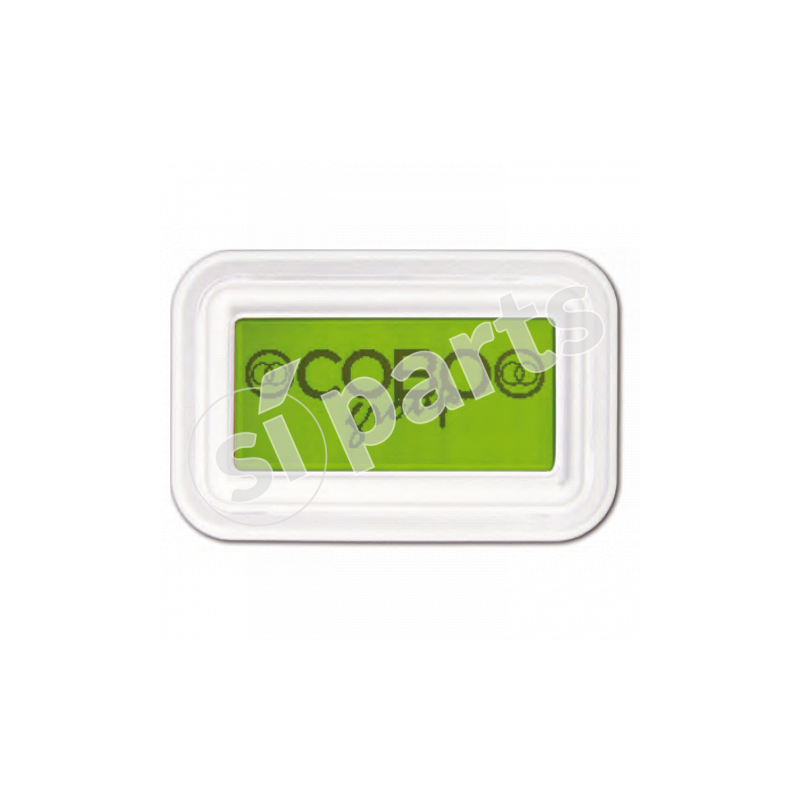

- P/N 06512036, NEW Code 1017623, WITH BRACKET, WHITE FRAME, WHITE BACKLIGHTING, NO TOUCHSCREEN.
- P/N 06512037, NEW Code 1017624, WITH BRACKET, WHITE FRAME, WHITE BACKLIGHTING, TOUCHSCREEN.
- P/N 06512039, NEW Code 1017631, WITH BRACKET, BLACK FRAME, WHITE BACKLIGHTING, TOUCHSCREEN.

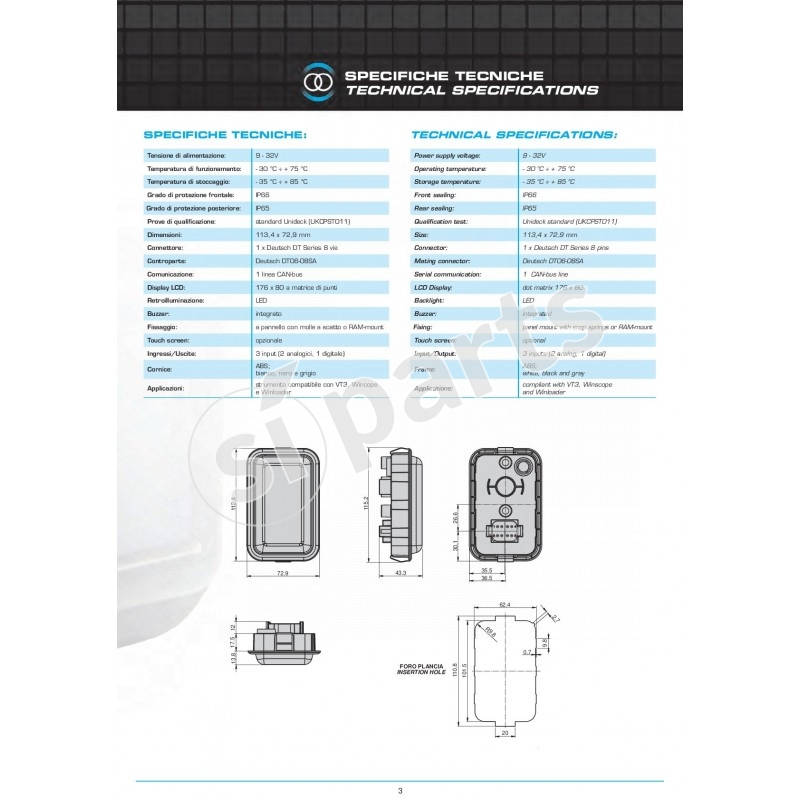

POWER SUPPLY VOLTAGE V
9 - 32V
OPERATING TEMPERATURE
- 30 °C ÷ + 75 °C
STORAGE TEMPERATURE
- 35 °C ÷ + 85 °C
FRONT SEALING
IP66
REAR SEALING
IP65
QUALIFICATION TEST
Unideck standard UKCPST001

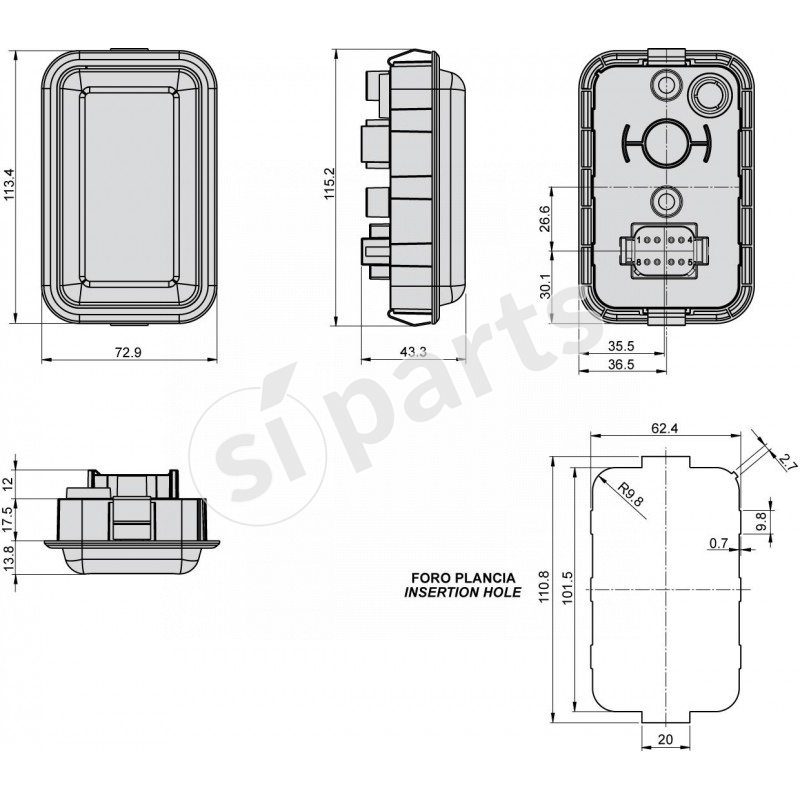

DIMENSIONS MM
113,4 x 72,9 mm
CONNECTOR
1 x Deutsch DT Series 8 pins
COUNTERPART
Deutsch DT06-08SA
COMMUNICATION
1 line CAN-bus
BACKLIGHT
LED
BUZZER
INTEGRATED
FIXING
PANEL MOUNT WITH SNAP SPRINGS
DISPLAY LCD
DOT MATRIX 176 X 80
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1017601
Code: 06512025
