CANVIEW 4 NO KEYS HIGH SPECS INDASH

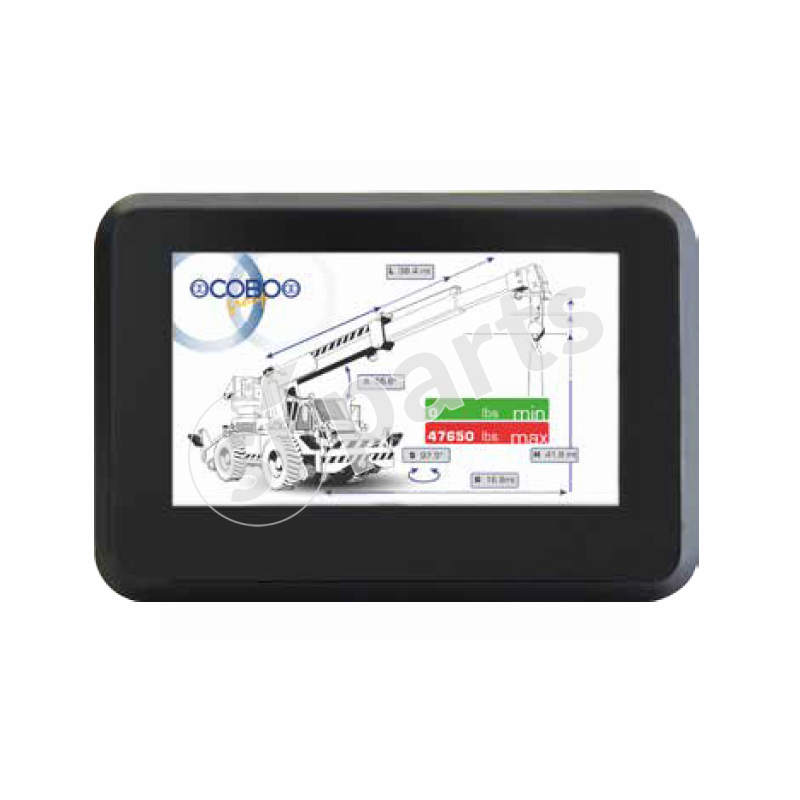

CANVIEW4 is a general purpose programmable 4.3” size display, usable for any mobile machine applications. Compact and very modern looking, it is anyway designed under the hardest industrial standard requirements. It can be installed indoor or outdoor, and its wide memory and speed makes it the best option for any machine.
POWER SUPPLY VOLTAGE
8 - 32 V, I max 2A
OPERATIVE TEMPERATURE
- 30 °C ÷ + 75 °C
SEALING
IP65
MAIN CPU
ARM Cortex M4, 32 bit
FREQUENCY
180 Mhz
INTERNAL MEMORY
2MB Program Flash, 64MB SDRAM (Data), 8KB EEPROM
RAM MEMORY
260 KB
DISPLAY
TFT 4.3”, 480 x 272 pixels, 800 cdm, 600:1 contrast ratio
SUN READABILITY
YES
RTC
YES
WAKE UP MODE
Power supply, CAN message
BOOT TIME
< 3 seconds
INTERNAL TEMPERATURE SENSOR
YES
KEYS
NO
BUZZER
85 db
COMMUNICATION PORTS
2 CAN bus, 1 USB port, 1 RS232 port (TX/RX)
VIDEO INPUT (OPTIONAL)
1 PAL/NTSC standard input
INPUT / OUTPUT (OPTIONAL)
2 analog/digital Inputs, 4 Outputs High Side 2A
CONNECTOR
AMP automotive 26 pin
STANDARDS
CE EMC industrial, automotive
PROGRAMMING
C, C++ (ARM Gnu, HAL graphic library), VT3 tool
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
