CCR2 SERIES: CABLE REEL 3-6 MT

ccr2...1p

Code: ccr2...1p

CONTACT US FOR MORE INFORMATION

  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

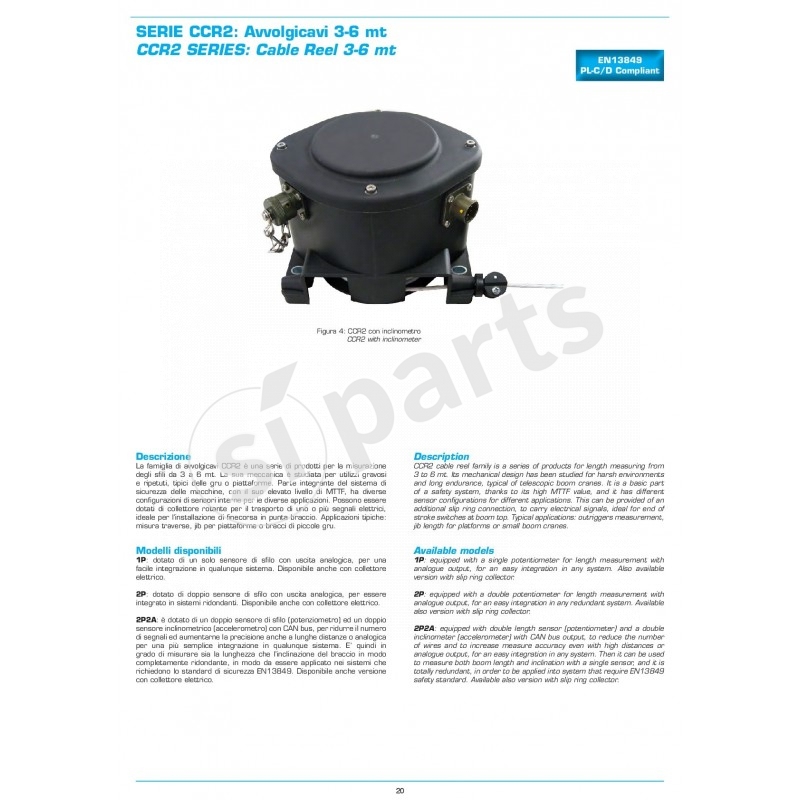

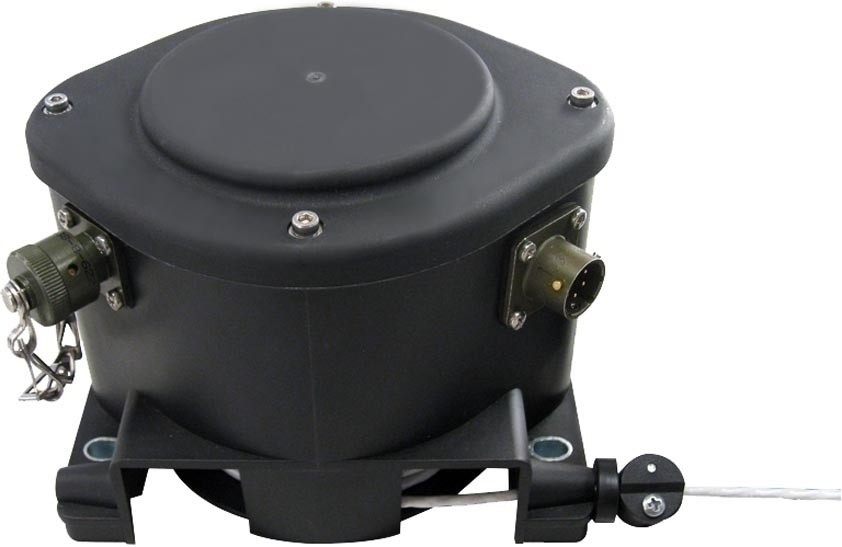

Description CCR2 cable reel family is a series of products for length measuring from 3 to 6 mt. Its mechanical design has been studied for harsh environments and long endurance, typical of telescopic boom cranes. It is a basic part of a safety system, thanks to its high MTTF value, and it has different sensor configurations for different applications. This can be provided of an additional slip ring connection, to carry electrical signals, ideal for end of stroke switches at boom top. Typical applications: outriggers measurement, jib length for platforms or small boom cranes.

Available models

1P: equipped with a single potentiometer for length measurement with analogue output, for an easy integration in any system. Also available version with slip ring collector.

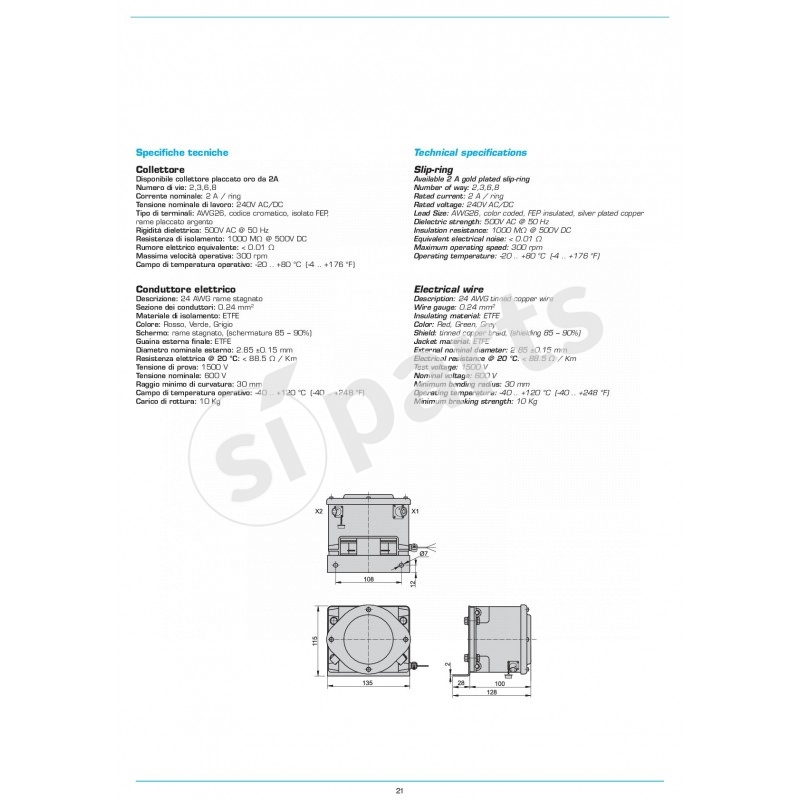

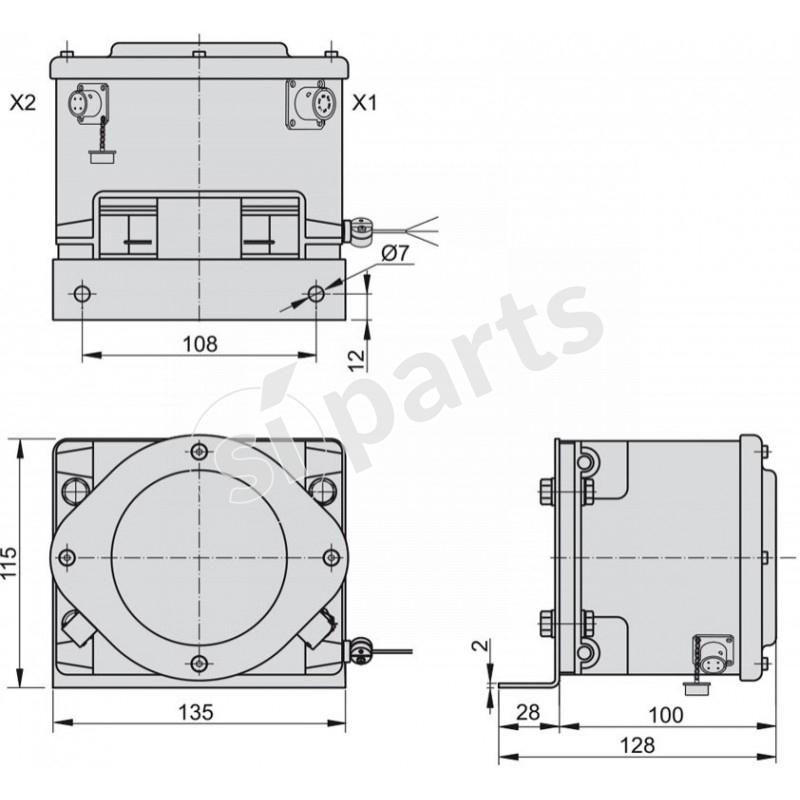

Technical specifications
Slip-ring
Available 2 A gold plated slip-ring
Number of way: 2,3,6,8
Rated current: 2 A / ring
Rated voltage: 240V AC/DC
Lead Size: AWG26, color coded, FEP insulated, silver plated copper
Dielectric strength: 500V AC @ 50 Hz
Insulation resistance: 1000 MOhm @ 500V DC
Equivalent electrical noise: < 0.01 Ohm
Maximum operating speed: 300 rpm
Operating temperature: -20 .. +80 °C (-4 .. +176 °F)
Electrical wire
Description: 24 AWG tinned copper wire
Wire gauge: 0.24 mm2
Insulating material: ETFE
Color: Red, Green, Grey
Shield: tinned copper braid, (shielding 85 - 90%)
Jacket material: ETFE
External nominal diameter: 2.85 ±0.15 mm
Electrical resistance @ 20 °C: < 88.5 Ohm / Km
Test voltage: 1500 V
Nominal voltage: 600 V
Minimum bending radius: 30 mm
Operating temperature: -40 .. +120 °C (-40 .. +248 °F)
Minimum breaking strength: 10 Kg

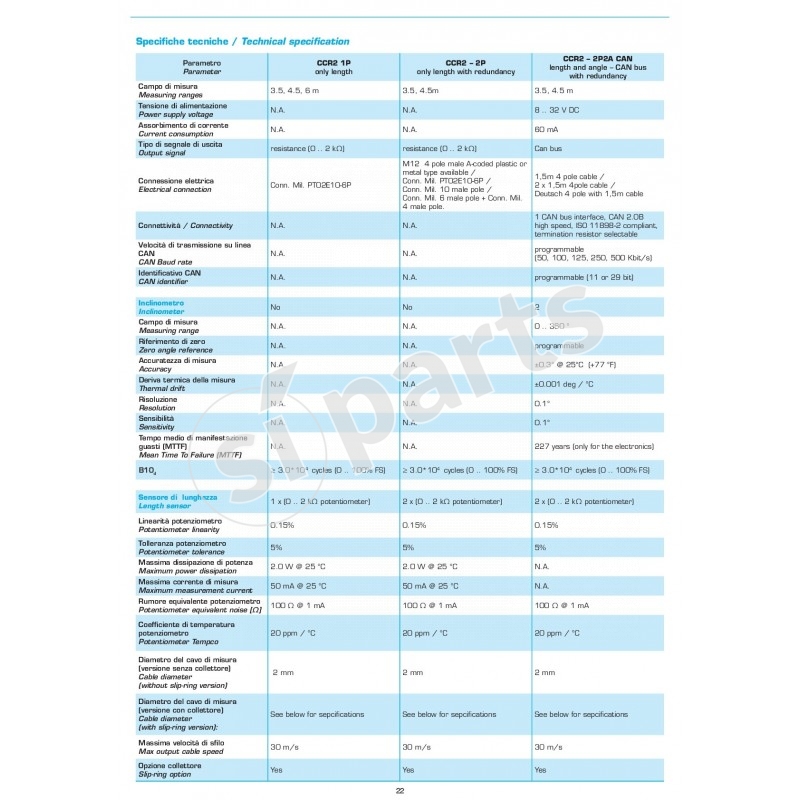

LENGTH SENSOR
0-100
MEASURING RANGE
3.5, 4.5, 6 m
OUTPUT SIGNAL
resistance 0 .. 2 kOhm
TYPE CONNECTION
Conn. Mil. PT02E10-6P
INCLINOMETER
NO
B10D
>= 3.0*10^4 cycles 0 .. 100% FS
LENGTH SENSOR DETAIL
1 x 0 .. 2 kOhm potentiometer
POTENTIOMETER LINEARITY
0.15%
POTENTIOMETER TOLLERANCE
5%
MAXIMUM POWER DISSIPATION
2.0 W @ 25 °C
MAXIMUM MEASUREMENT CURRENT
50 mA @ 25 °C
POTENTIOMETER TEMPCO
20 ppm / °C
CABLE DIAMETER WITHOUT SLIP-RING VERSION
2 mm
CABLE DIAMETER WITH SLIP-RING VERSION
See below for specifications

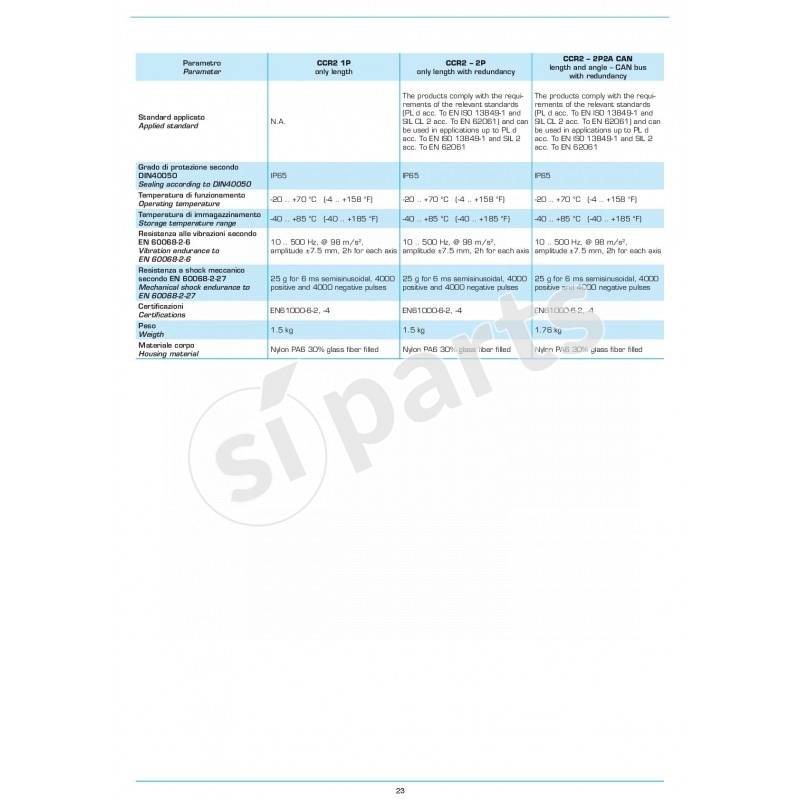

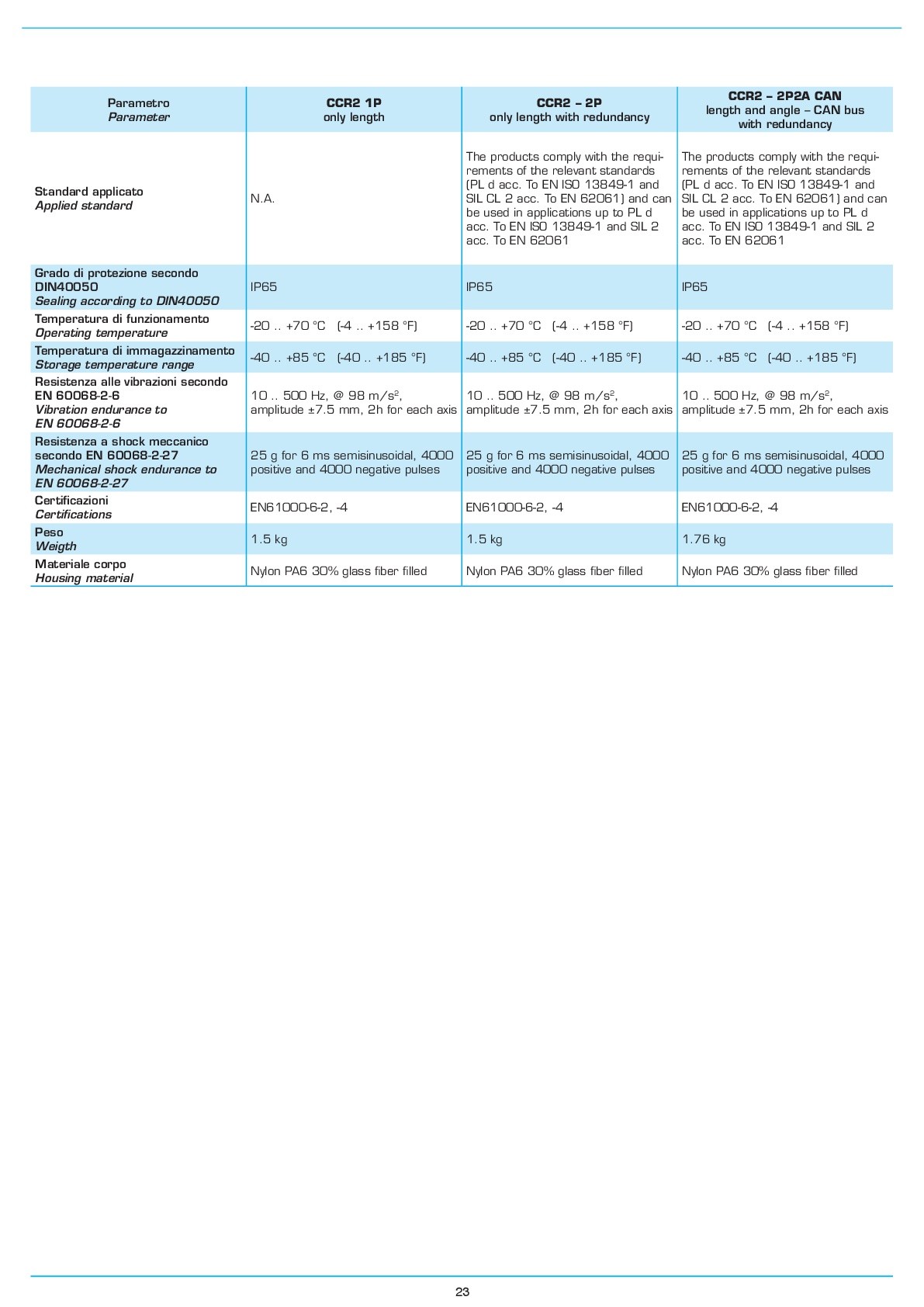

SEALING ACCORDIN TO DIN40050
IP65
TEMPERATURA D'IMPIEGO °C
-20 .. +70 °C -4 .. +158 °F
STORAGE TEMPERATURE
-40 .. +85 °C -40 .. +185 °F
VIBRATION ENDURANCE TO EN 60068-2-6
10 .. 500 Hz, @ 98 m/s2, amplitude ±7.5 mm, 2h for each axis
MECHANICAL SHOCK ENDURANCE TO EN 60068-2-7
25 g for 6 ms semisinusoidal, 4000 positive and 4000 negative pulses
CERTIFICATIONS
EN61000-6-2, -4
WEIGHT
1.5 kg
HOUSING MATERIAL
Nylon PA6 30% glass fiber filled

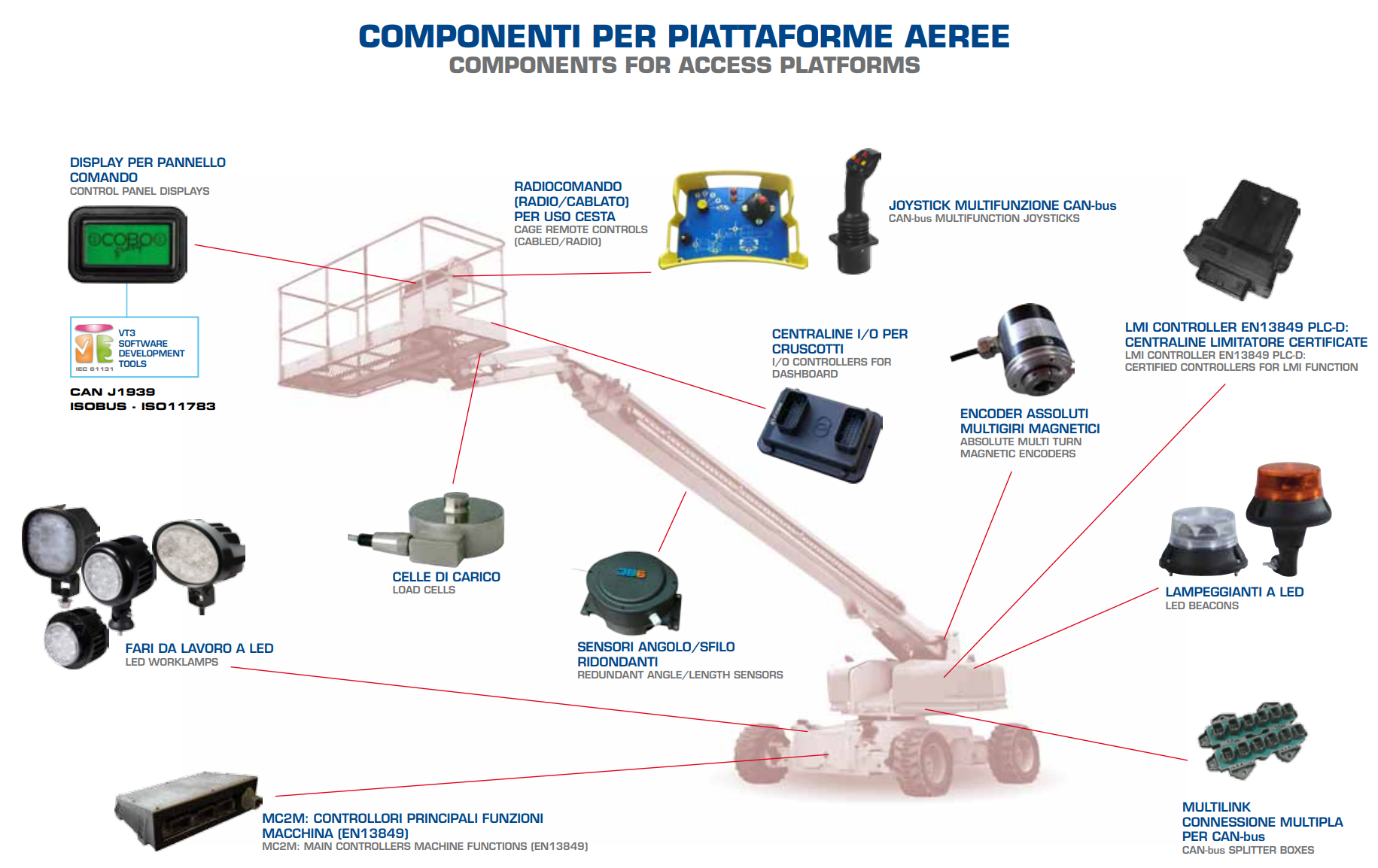

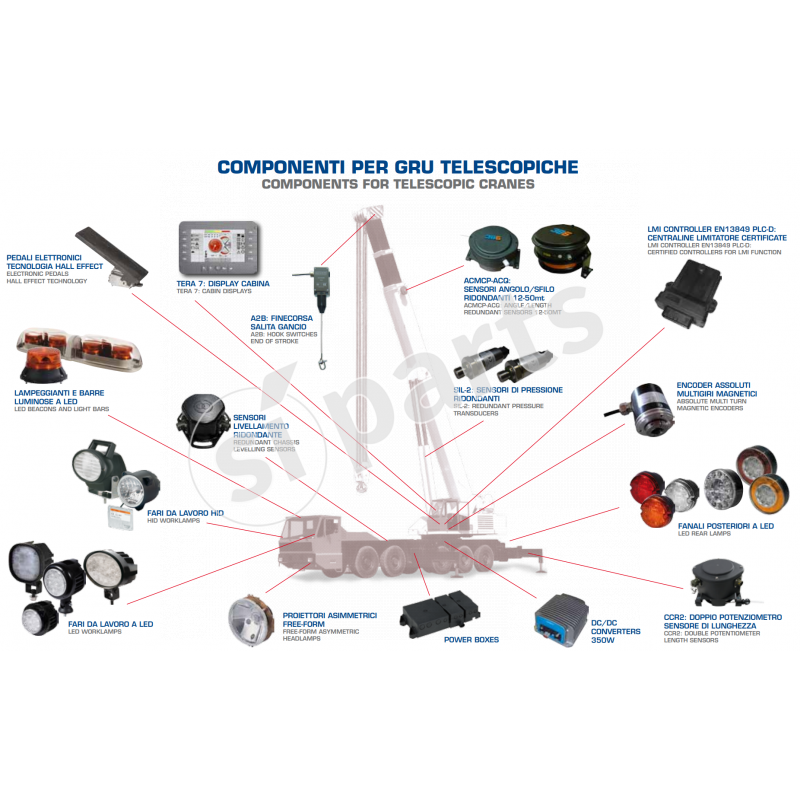

APPLICATIONS

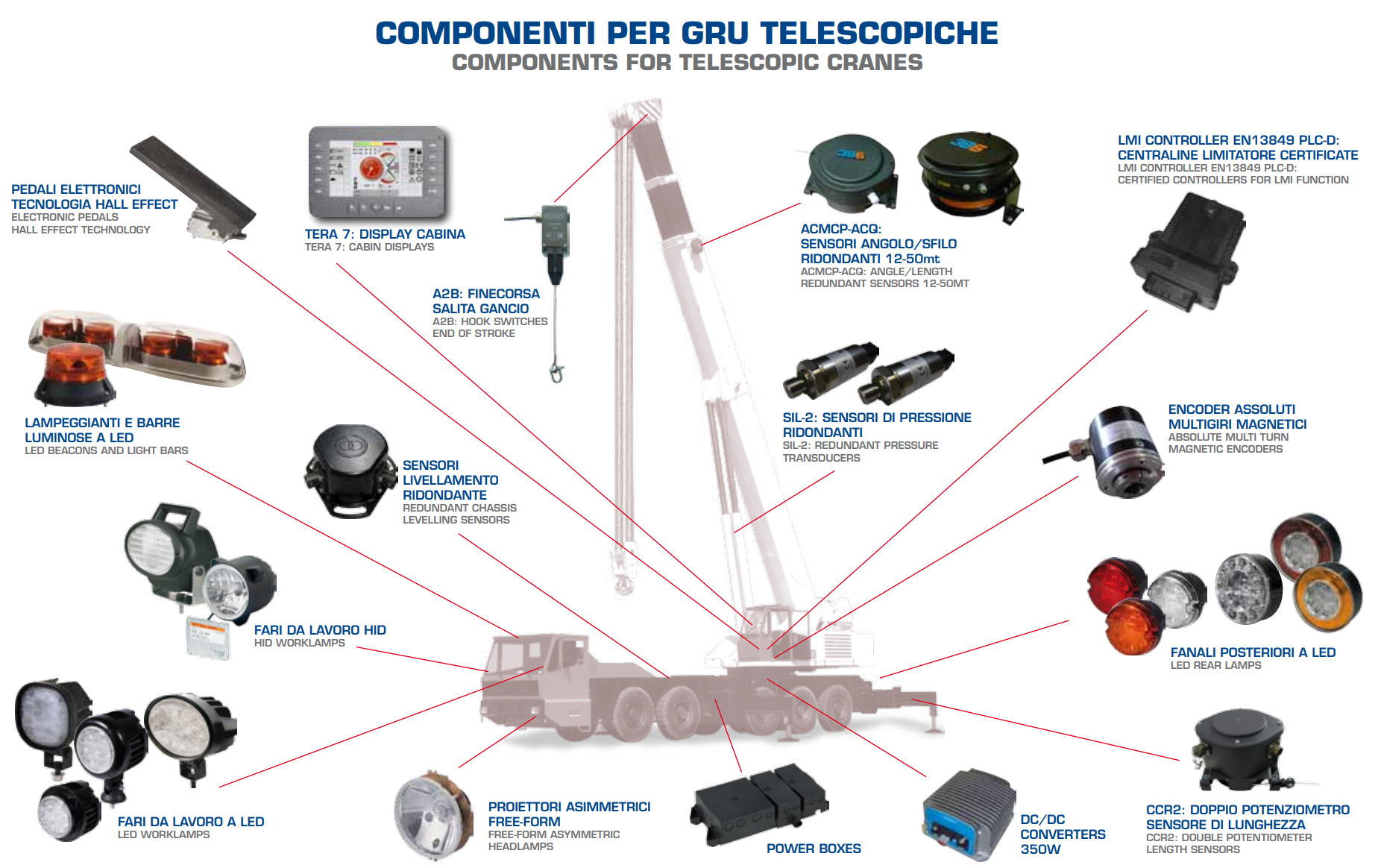

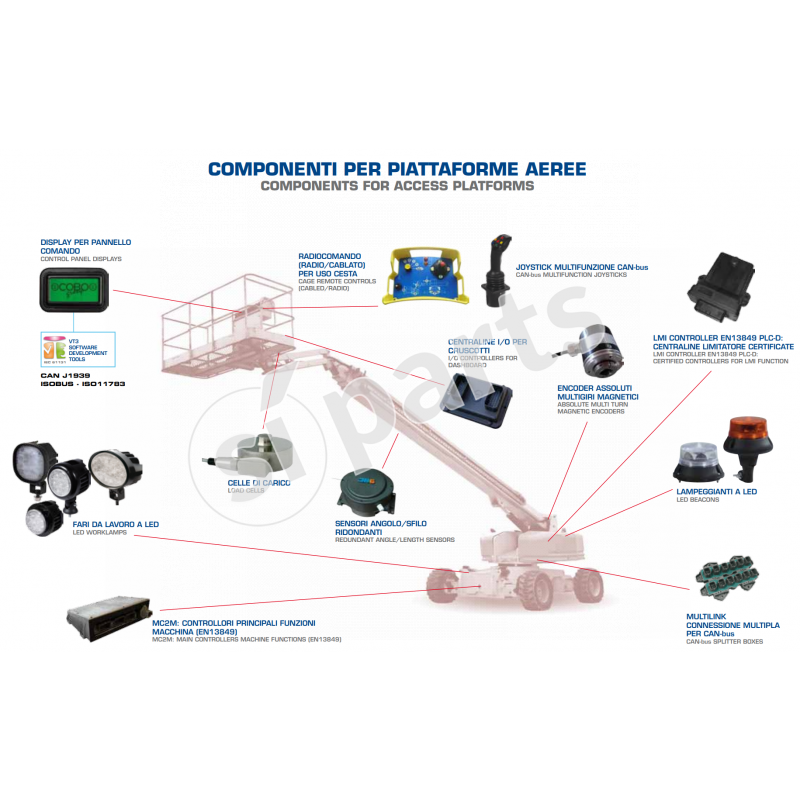

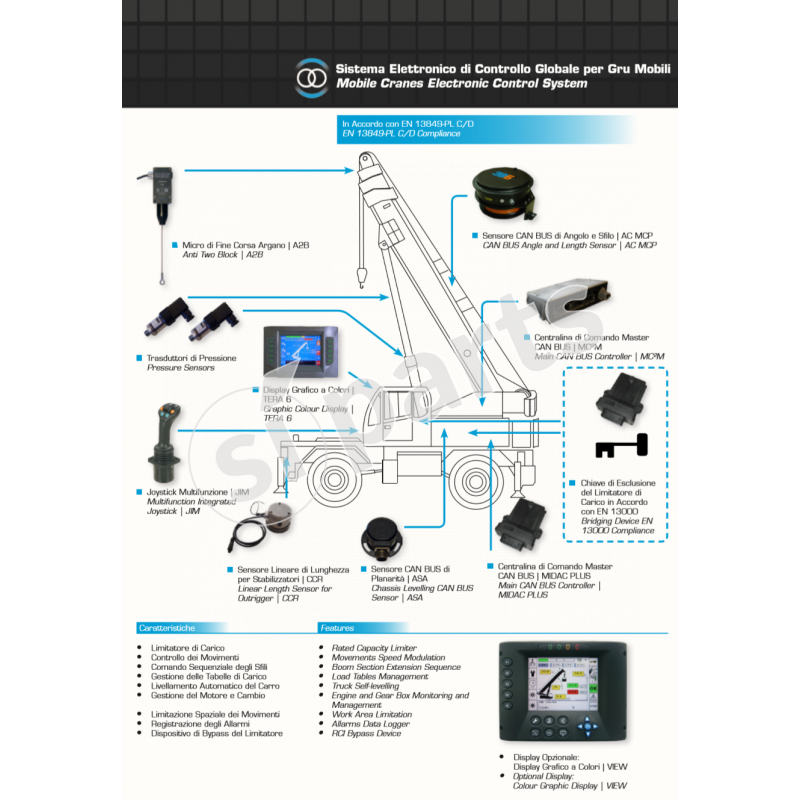

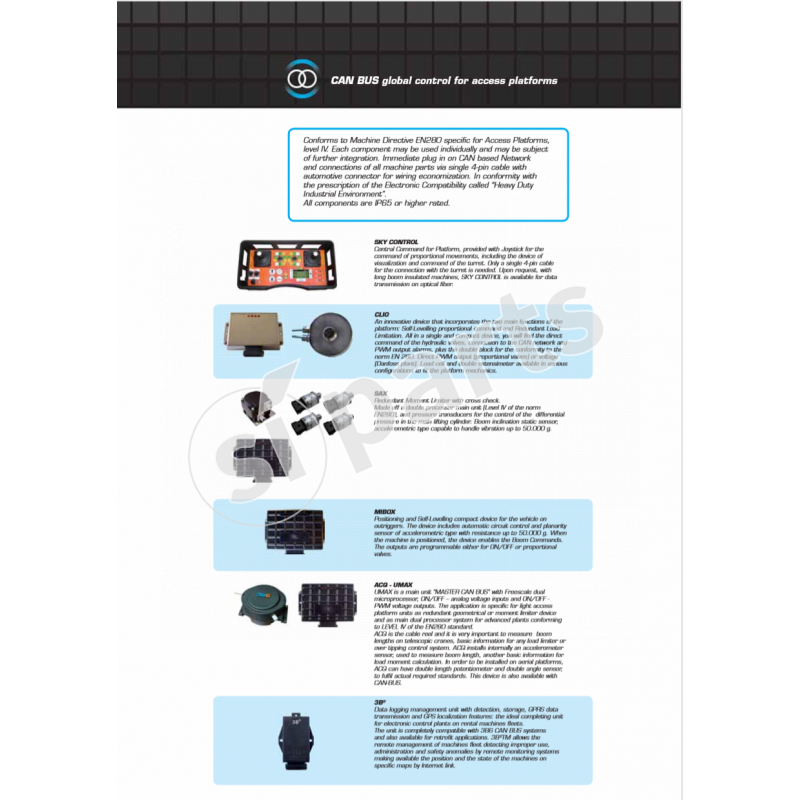

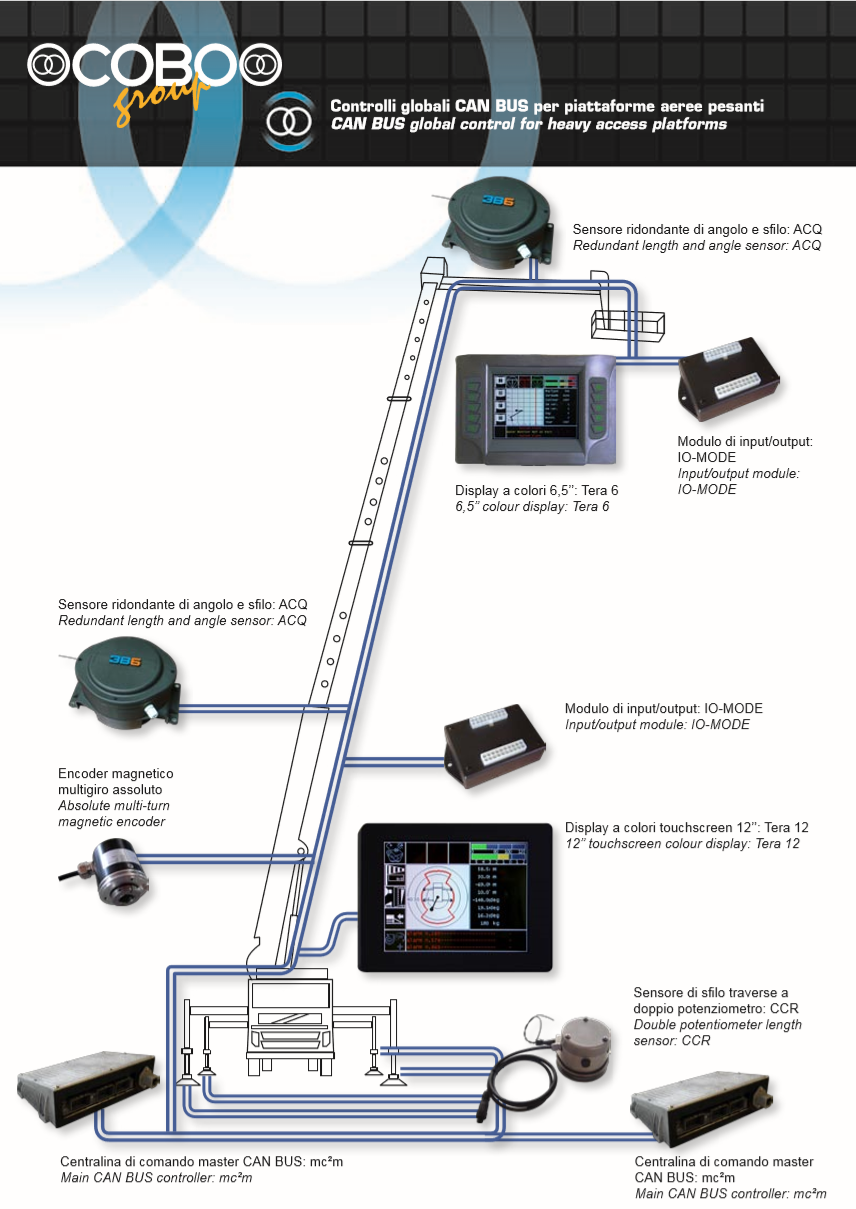

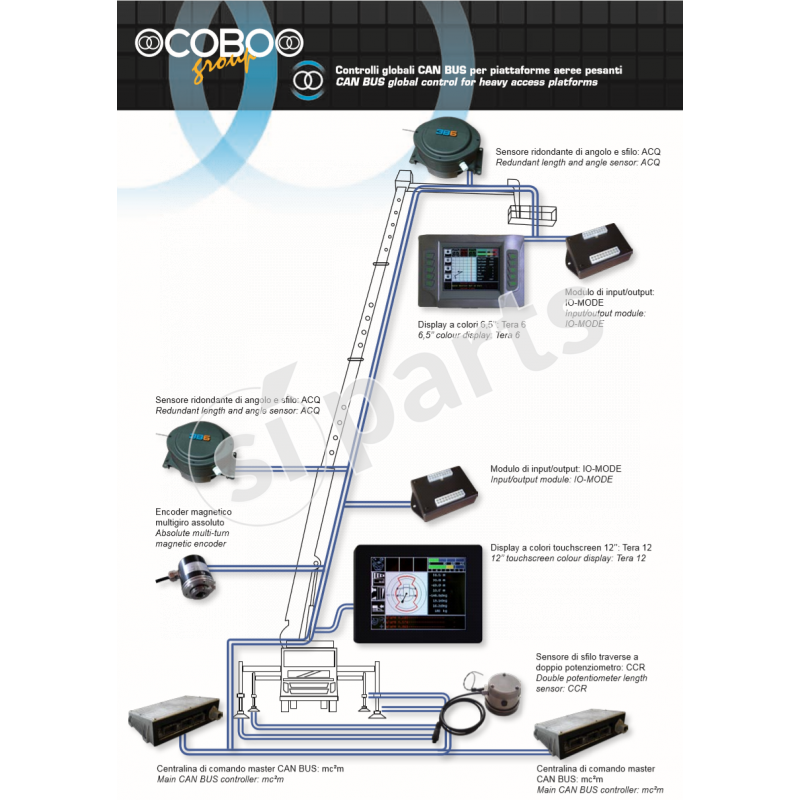

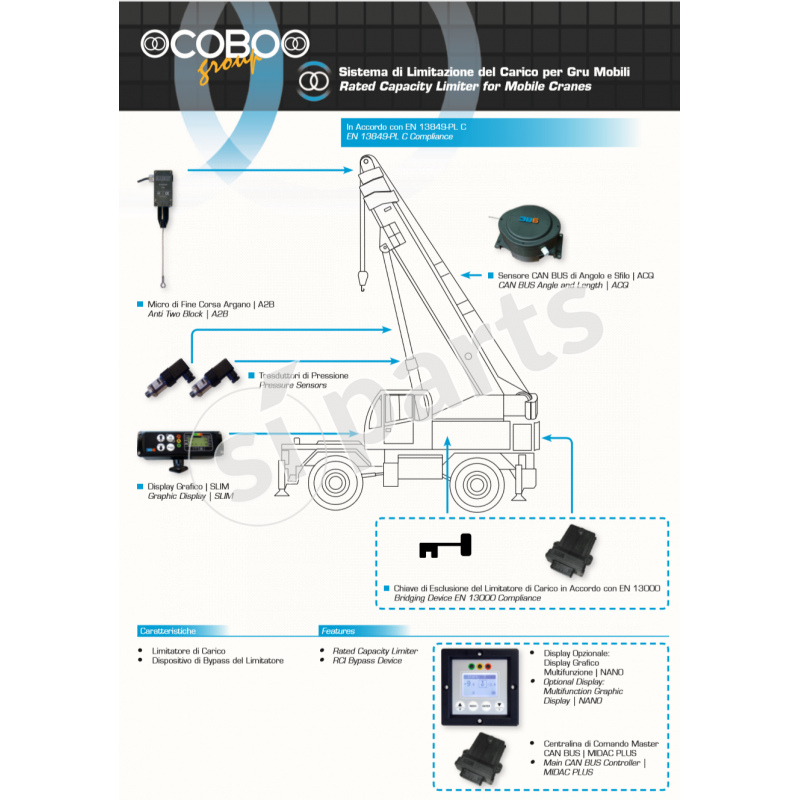

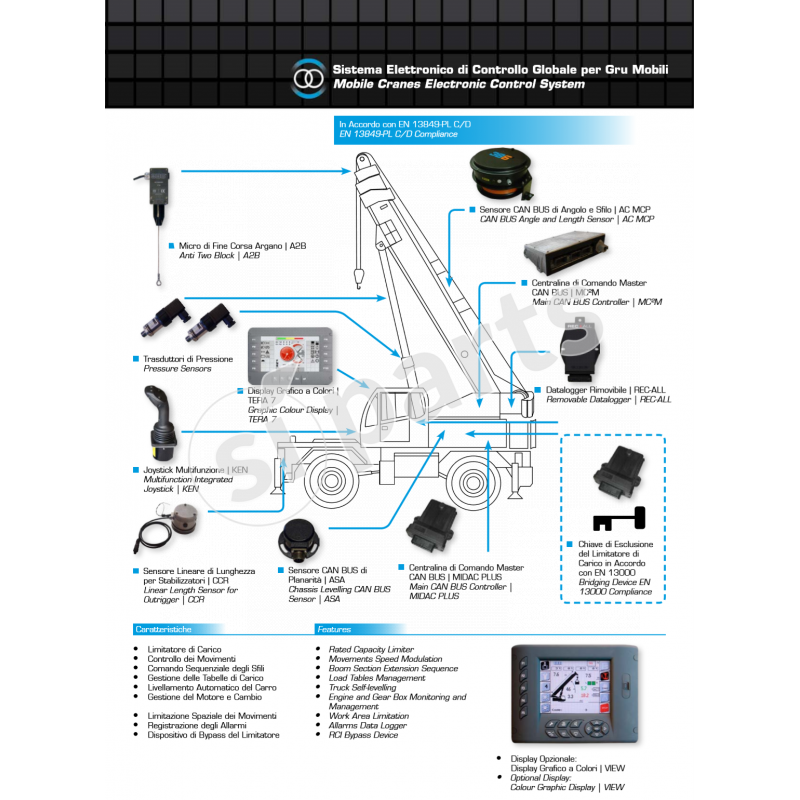

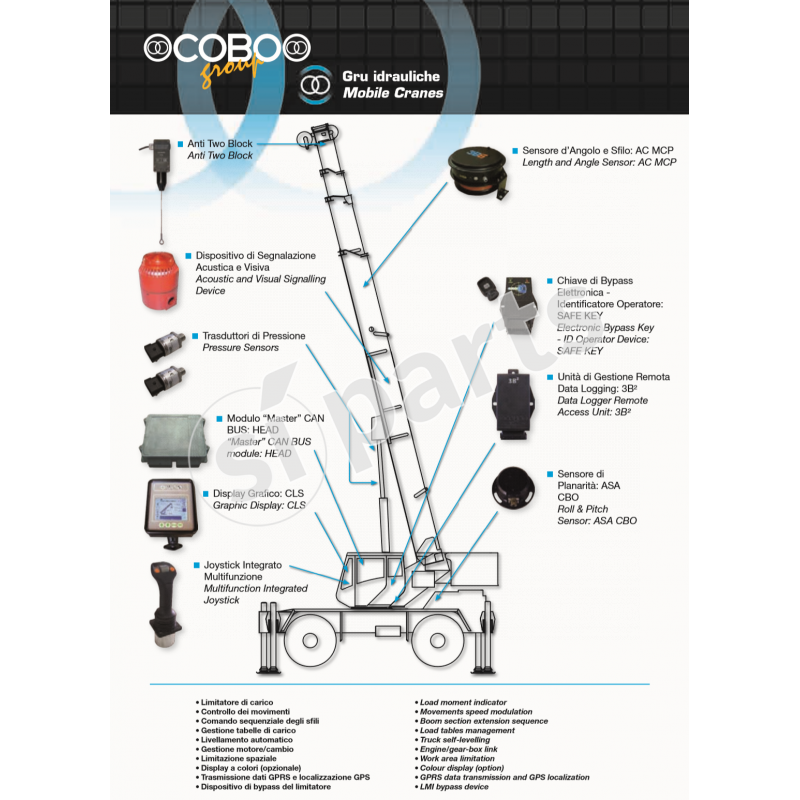

Components for access platforms telescopic - cranes

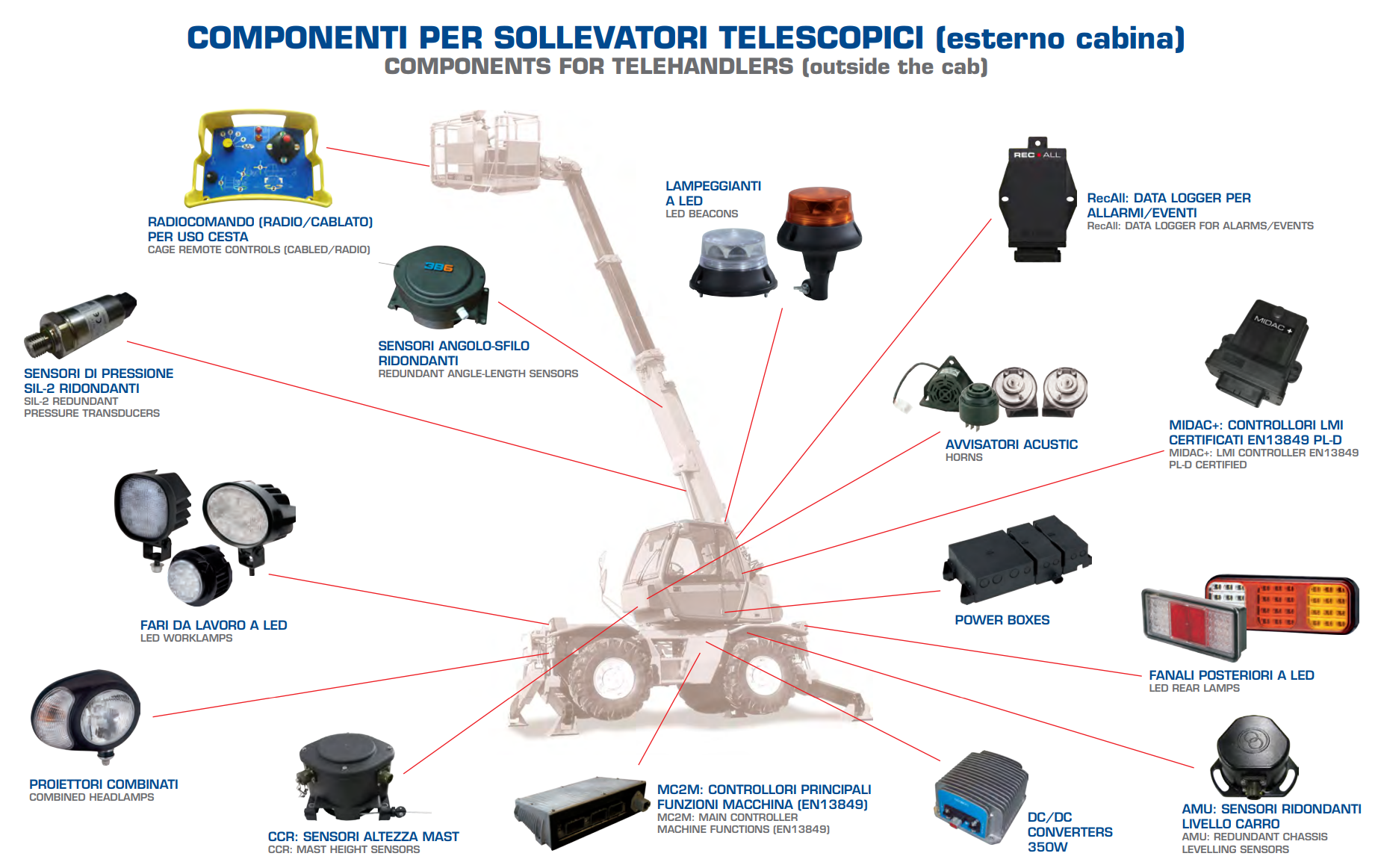

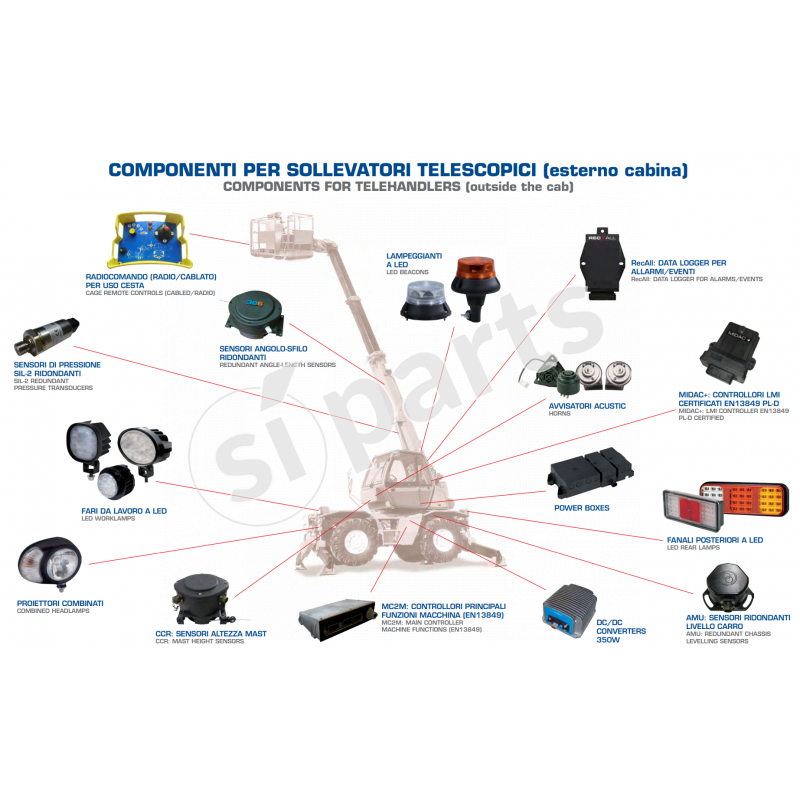

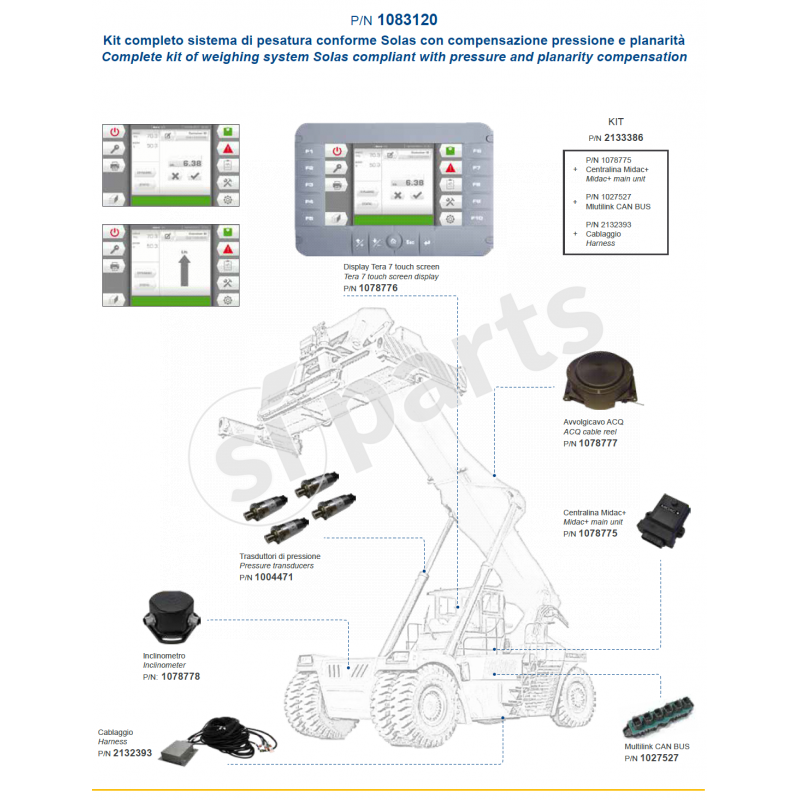

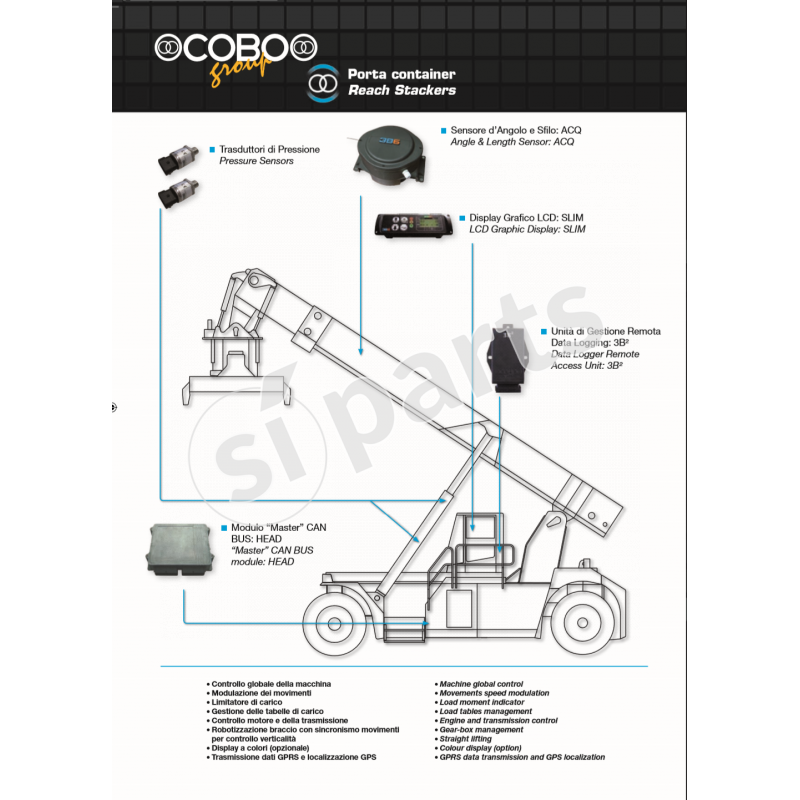

Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
