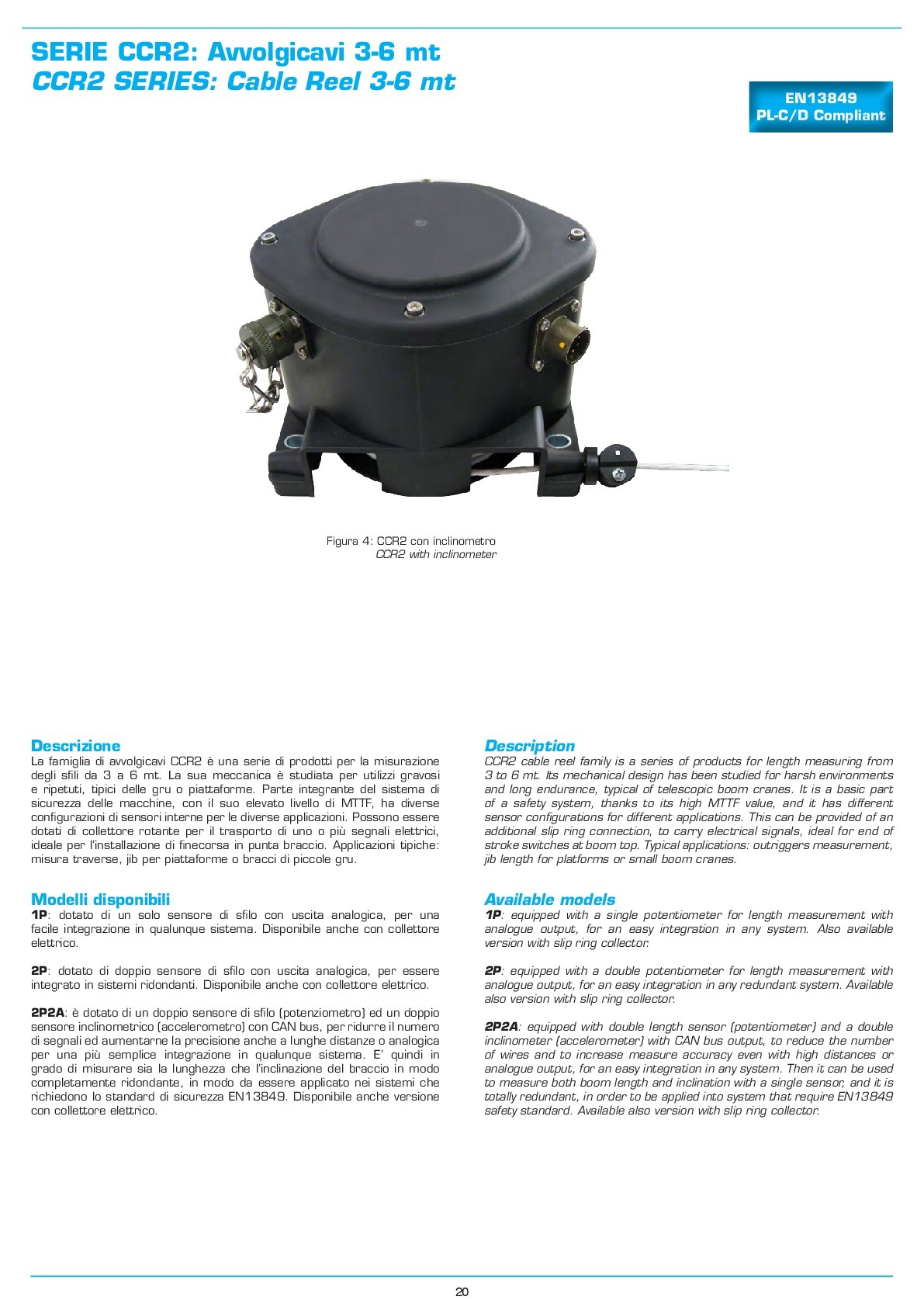

CCR2 SERIES: CABLE REEL 3-6 MT

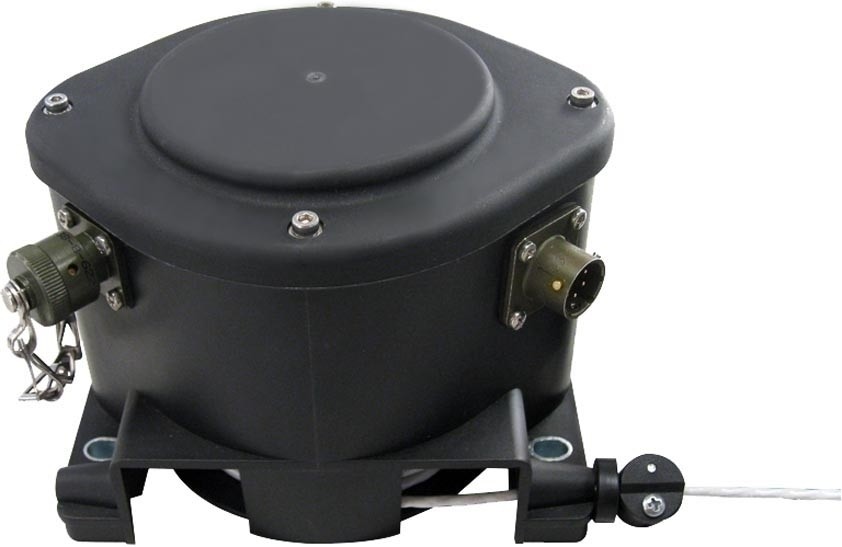

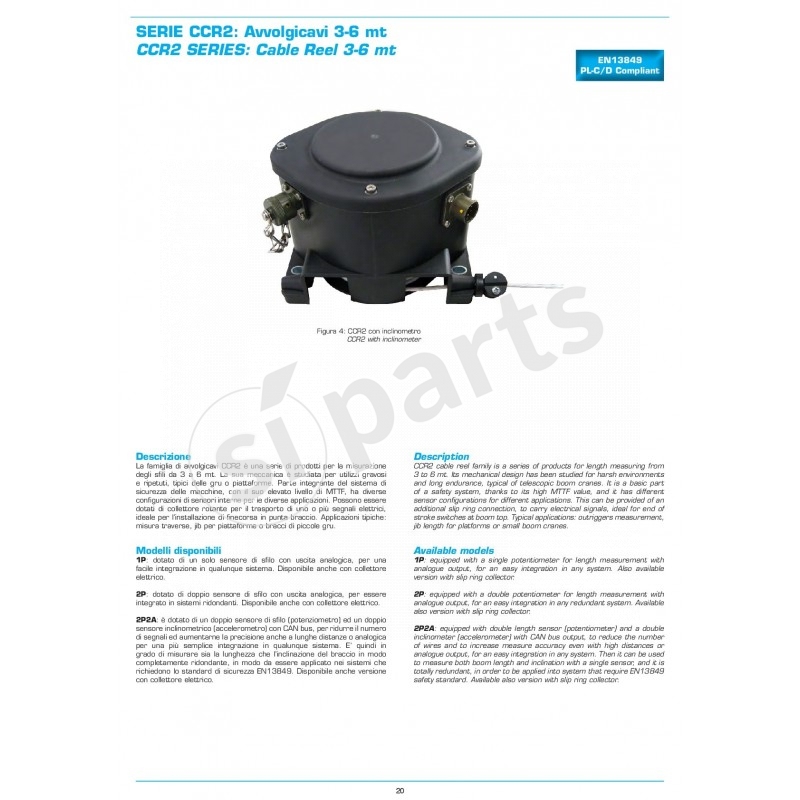

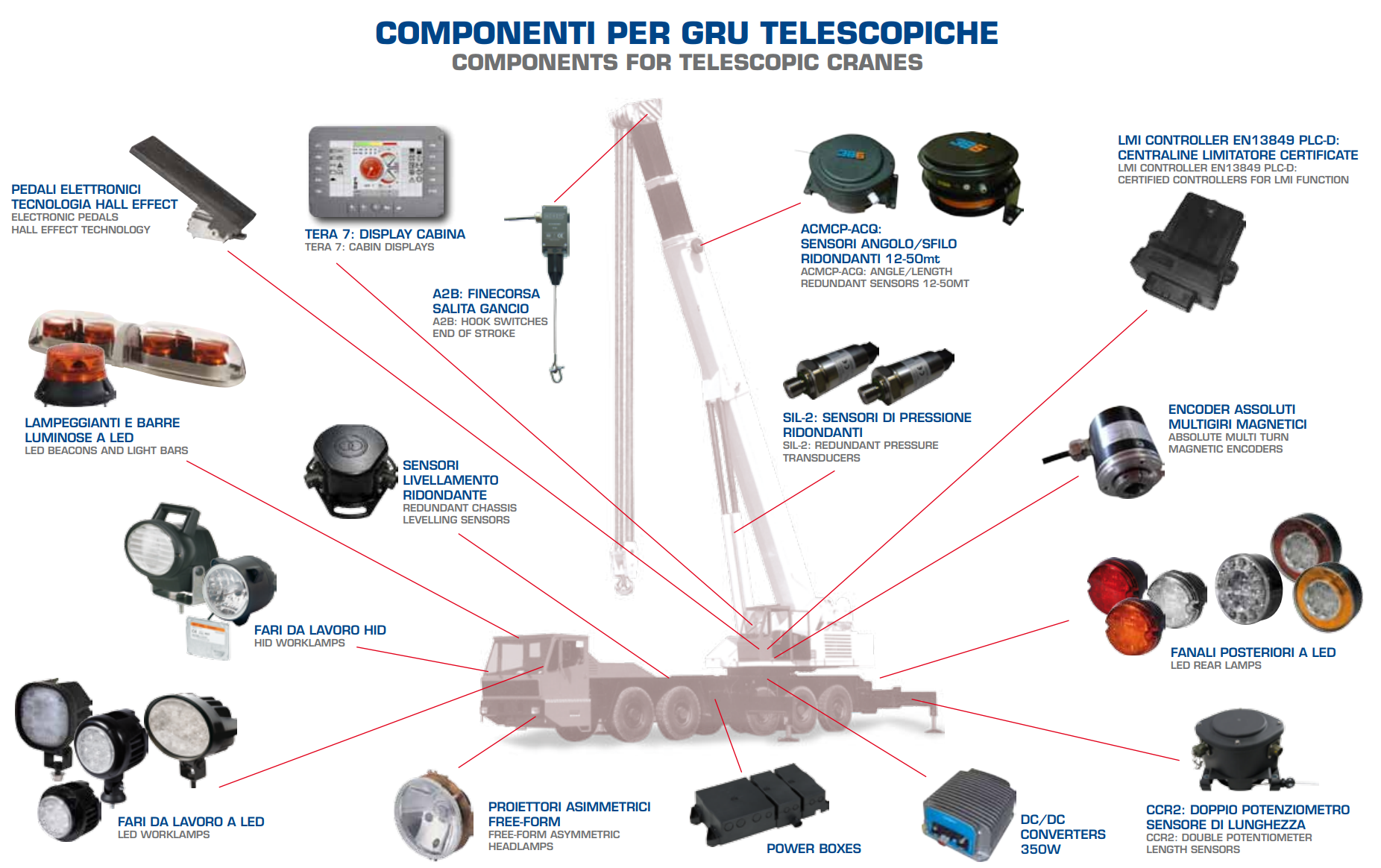

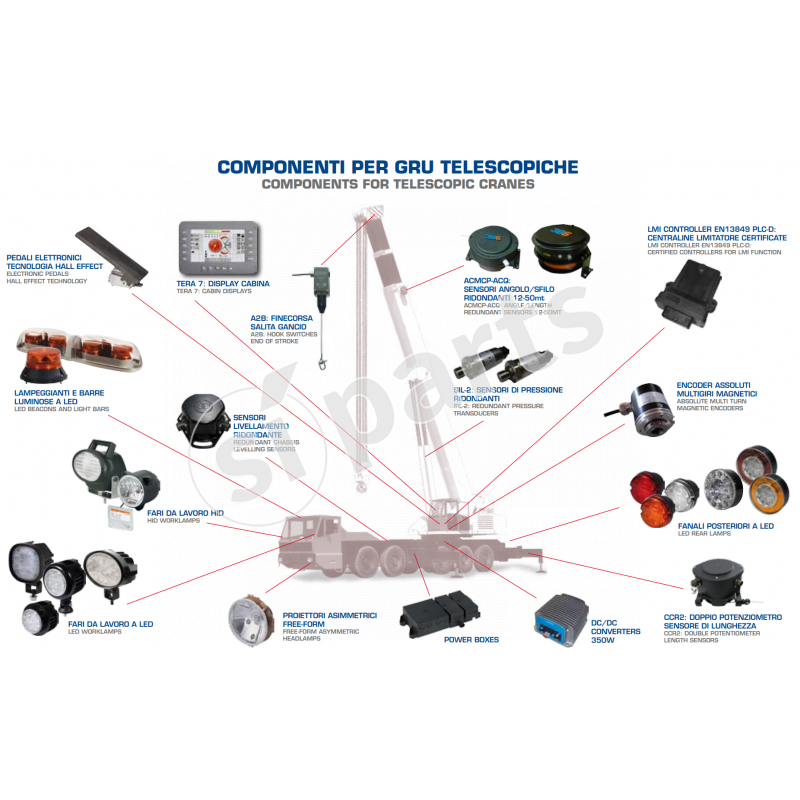

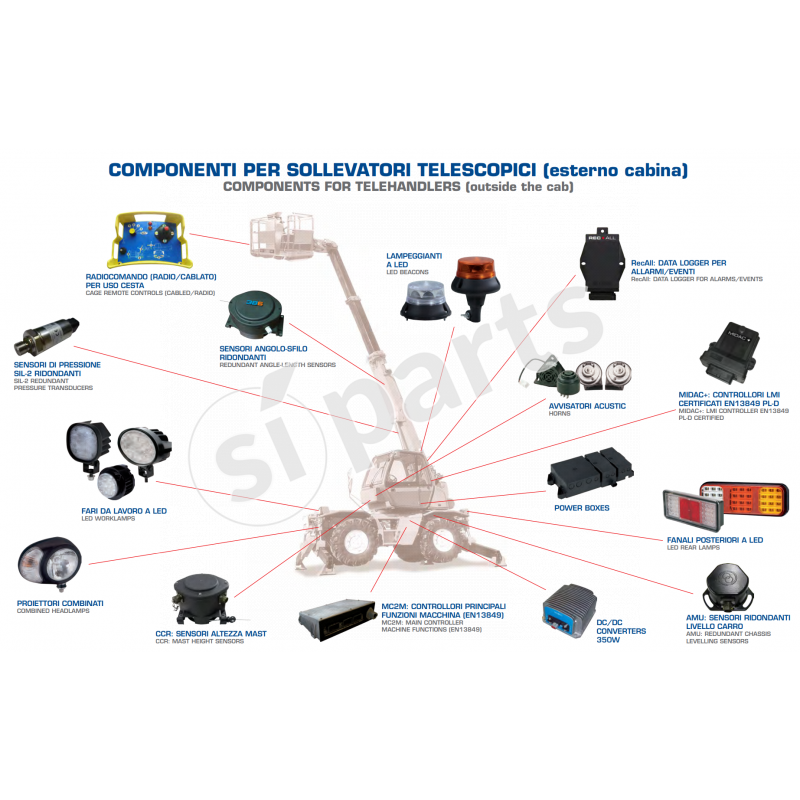

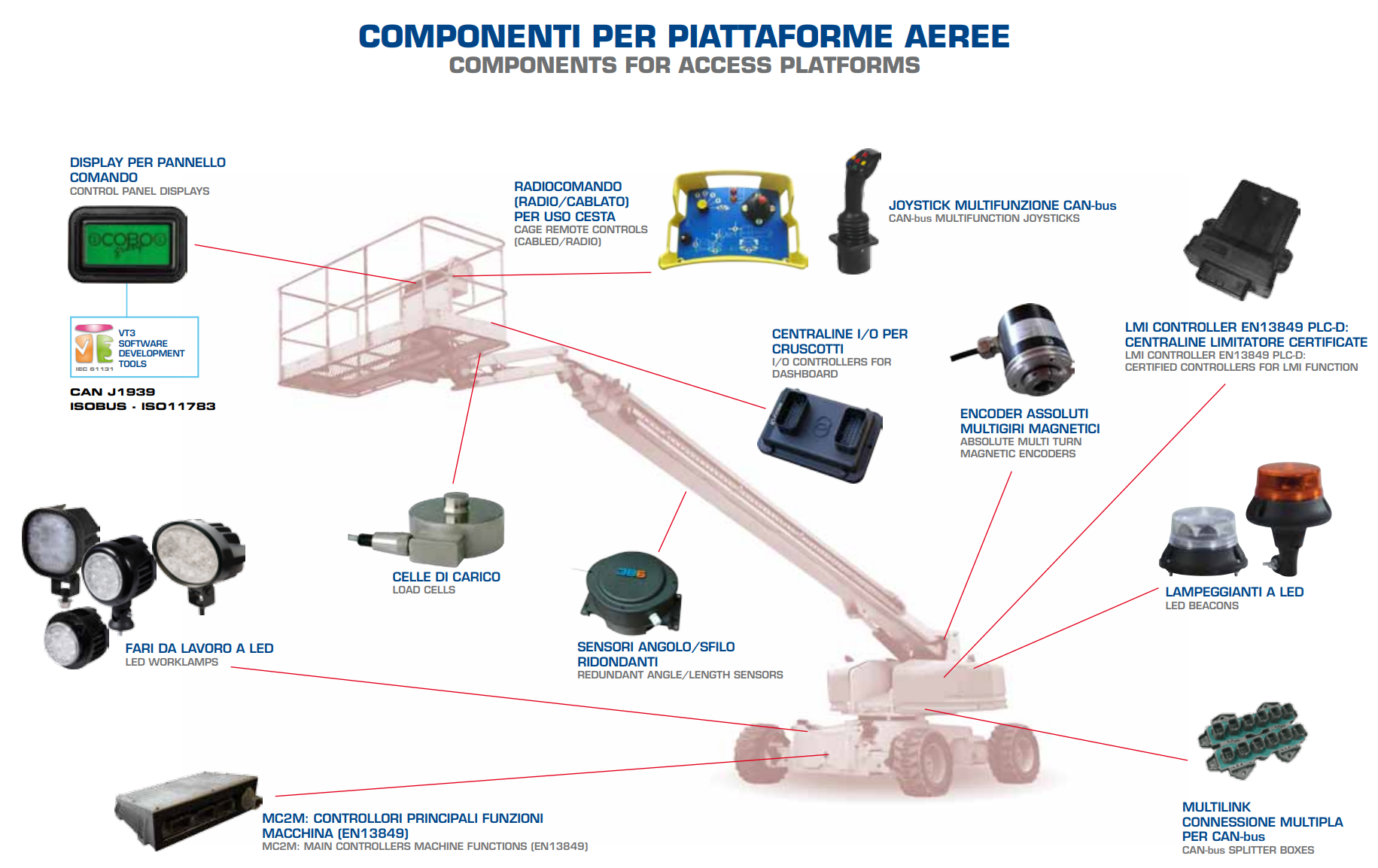

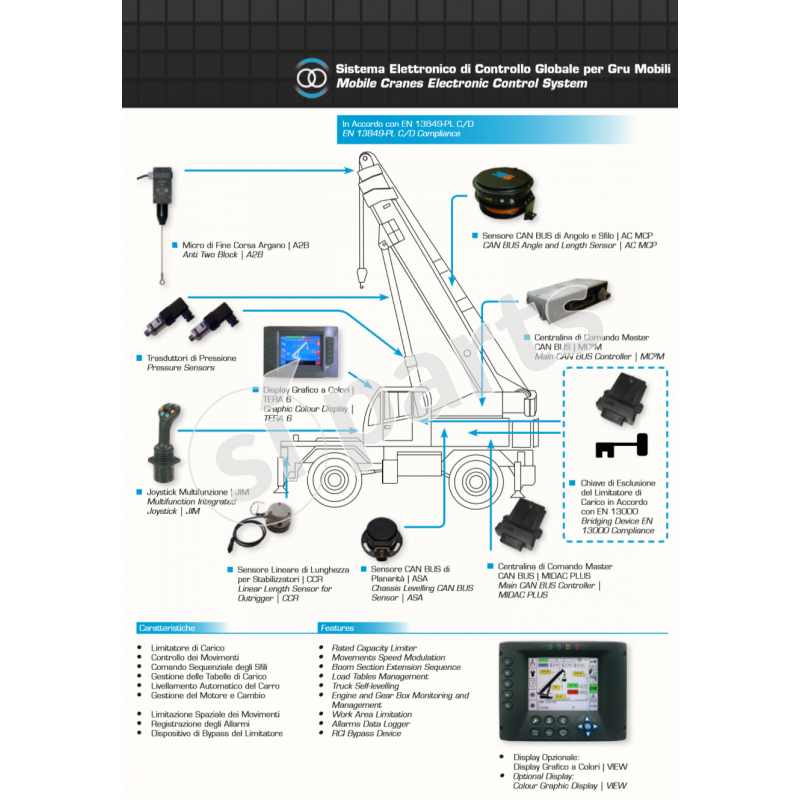

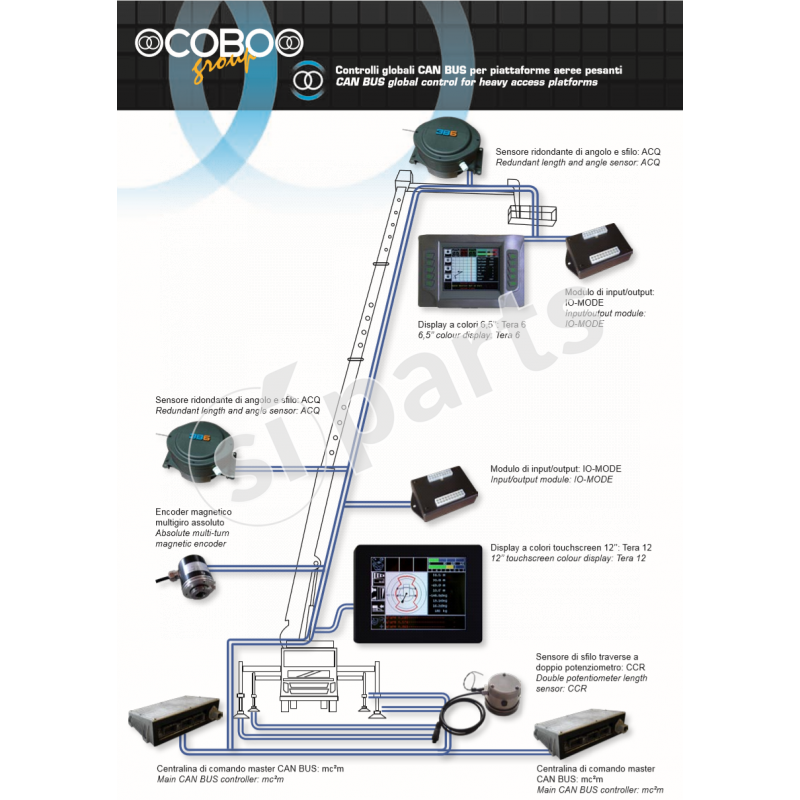

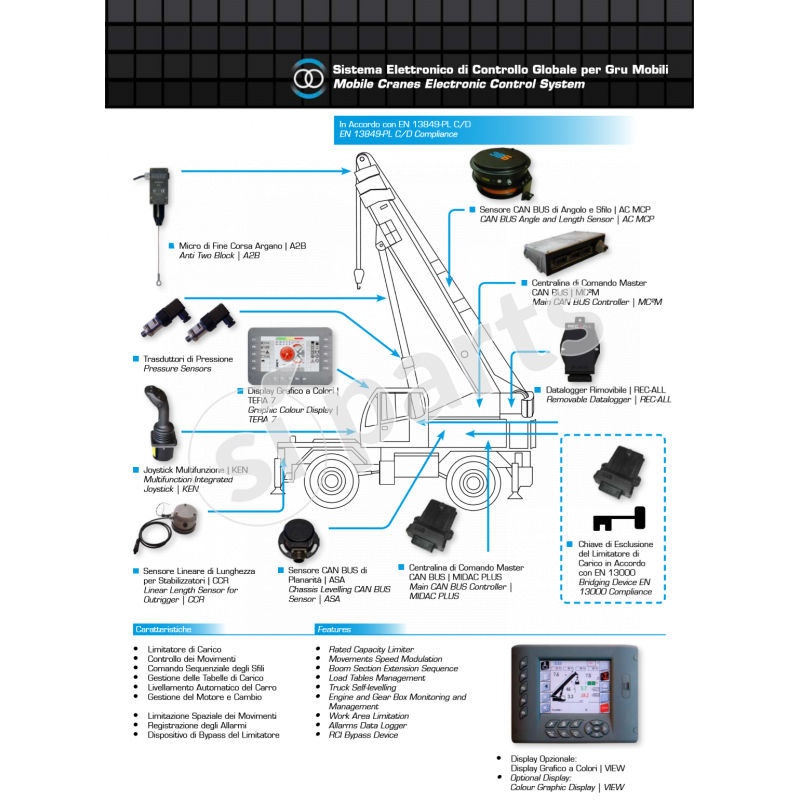

description ccr2 cable reel family is a series of products for length measuring from 3 to 6 mt. its mechanical design has been studied for harsh environments and long endurance, typical of telescopic boom cranes. it is a basic part of a safety system, thanks to its high mttf value, and it has different sensor configurations for different applications. this can be provided of an additional slip ring connection, to carry electrical signals, ideal for end of stroke switches at boom top. typical applications: outriggers measurement, jib length for platforms or small boom cranes.

available models

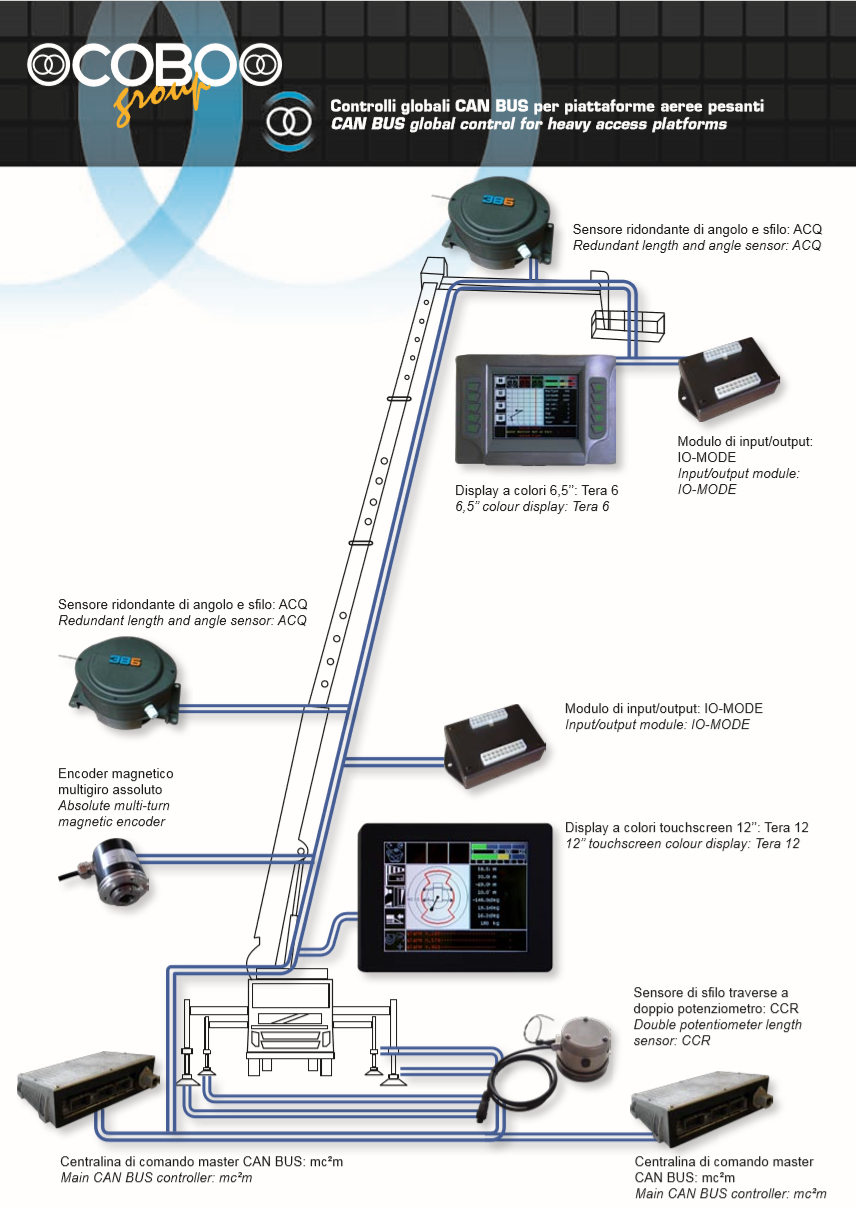

2p: equipped with a double potentiometer for length measurement with analogue output, for an easy integration in any redundant system. available also version with slip ring collector.

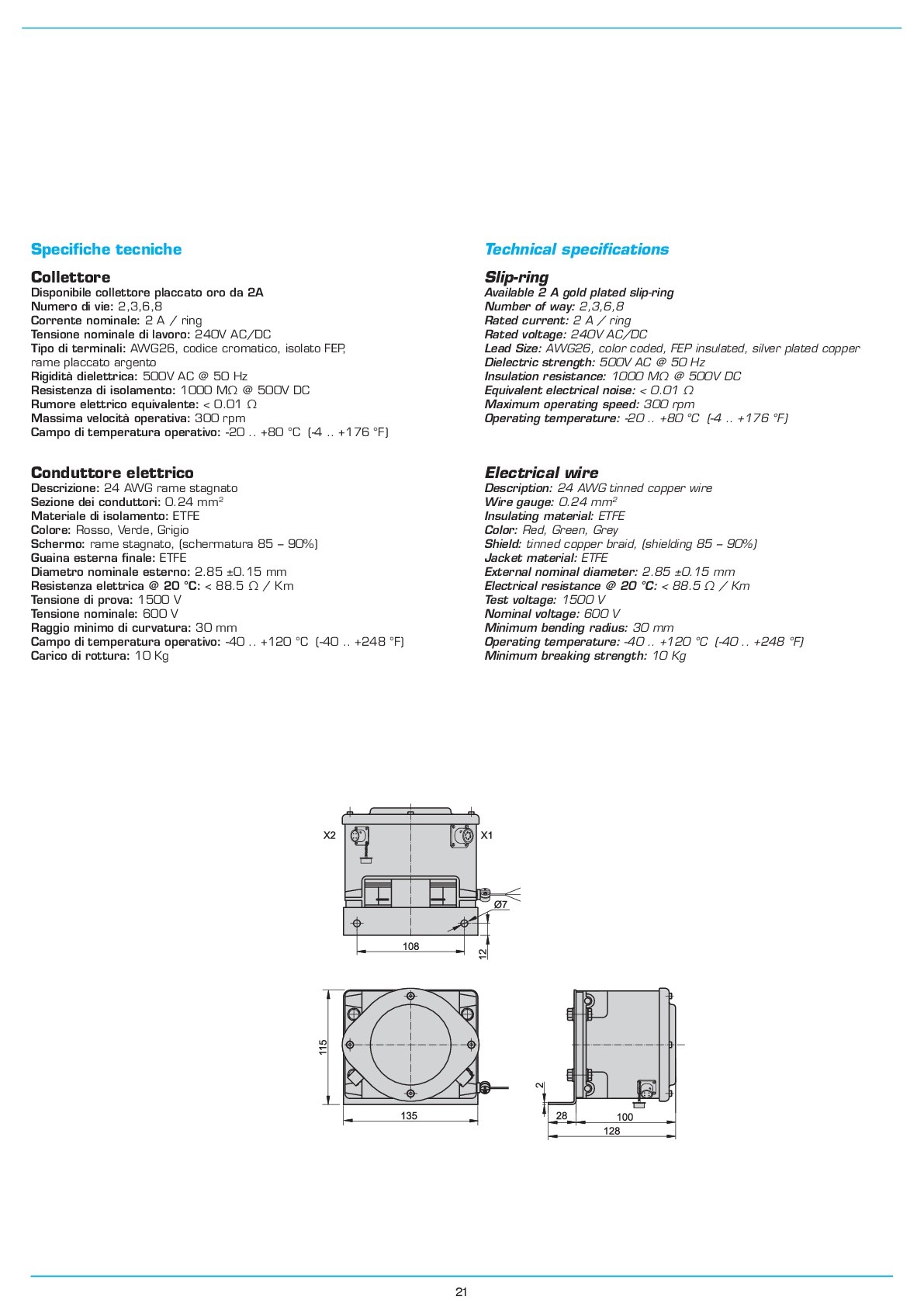

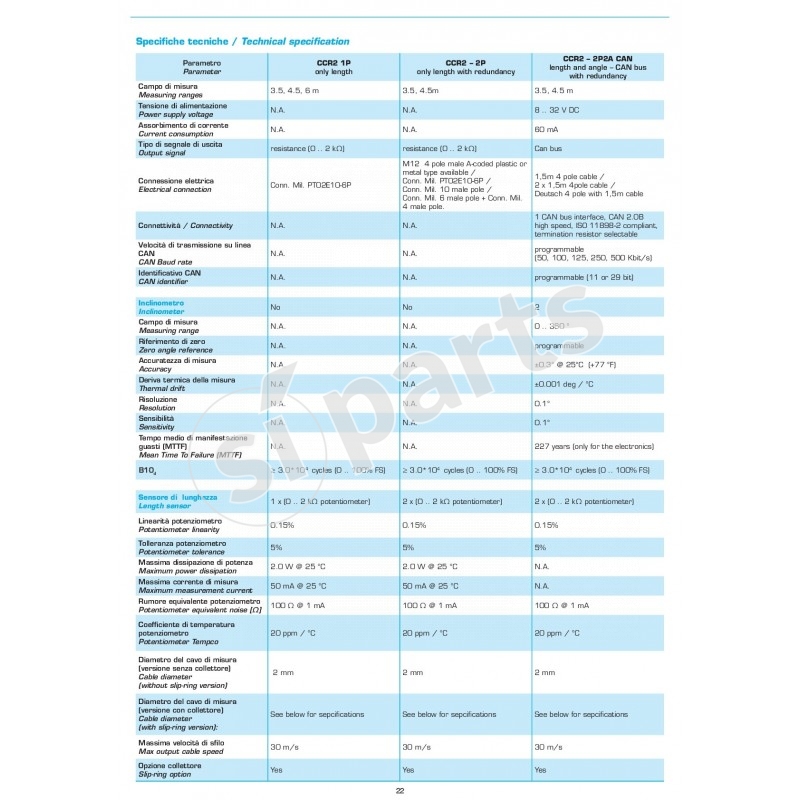

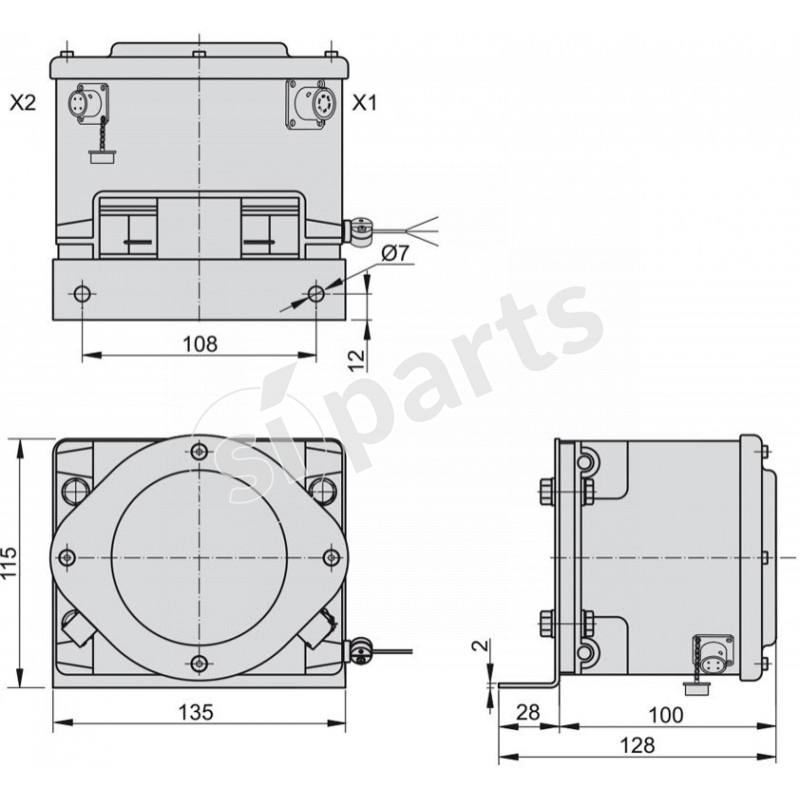

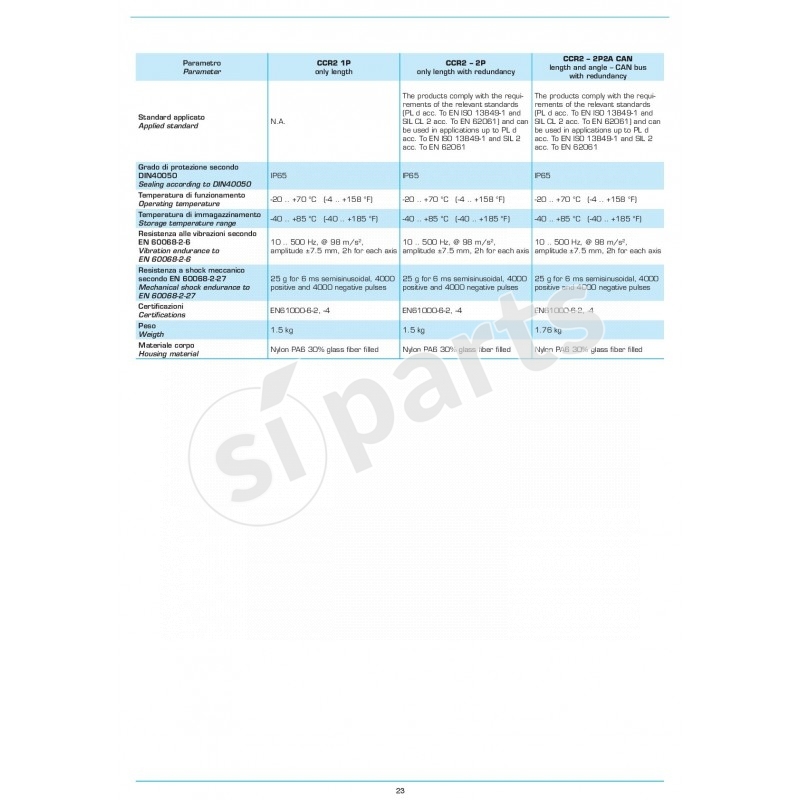

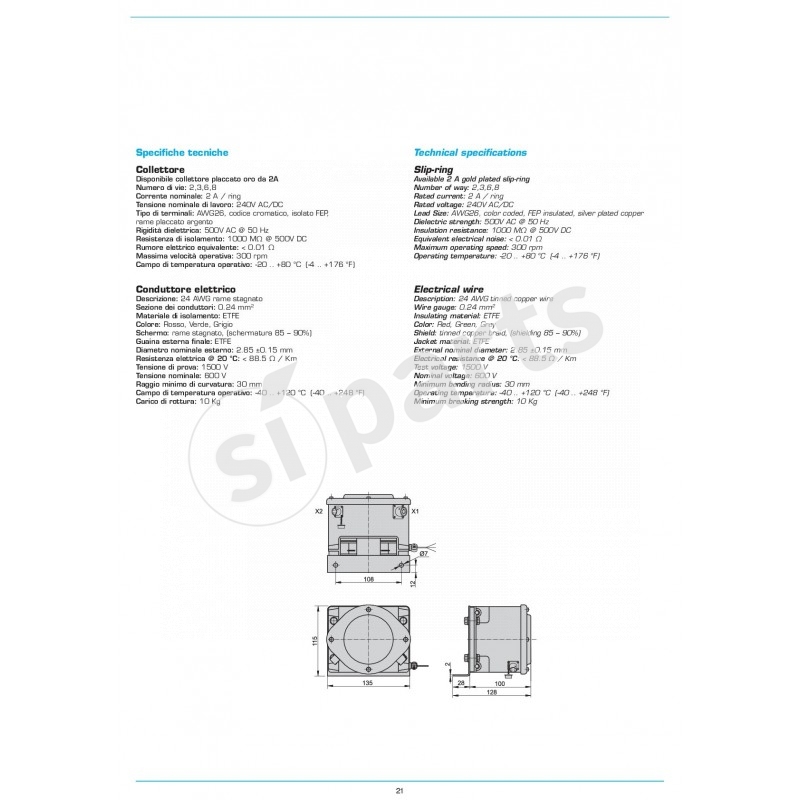

technical specifications
slip-ring
available 2 a gold plated slip-ring
number of way: 2,3,6,8
rated current: 2 a / ring
rated voltage: 240v ac/dc
lead size: awg26, color coded, fep insulated, silver plated copper
dielectric strength: 500v ac @ 50 hz
insulation resistance: 1000 mohm @ 500v dc
equivalent electrical noise: < 0.01 ohm
maximum operating speed: 300 rpm
operating temperature: -20 .. +80 °c (-4 .. +176 °f)
electrical wire
description: 24 awg tinned copper wire
wire gauge: 0.24 mm2
insulating material: etfe
color: red, green, grey
: tinned copper braid, (ing 85 - 90%)
jacket material: etfe
external nominal diameter: 2.85 ±0.15 mm
electrical resistance @ 20 °c: < 88.5 ohm / km
test voltage: 1500 v
nominal voltage: 600 v
minimum bending radius: 30 mm
operating temperature: -40 .. +120 °c (-40 .. +248 °f)
minimum breaking strength: 10 kg
