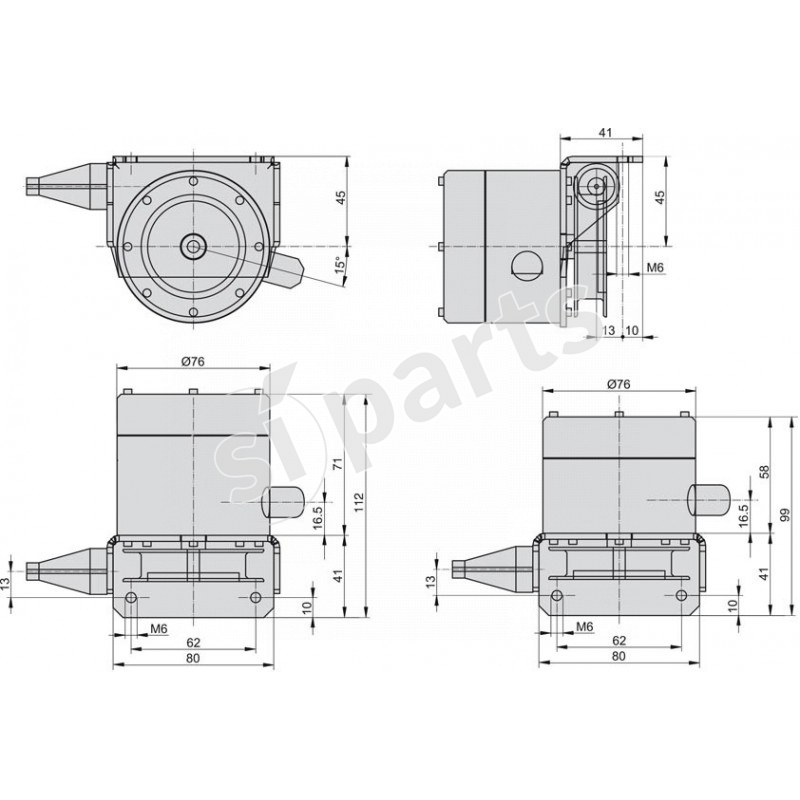

CCTM SERIES: CABLE REEL UP TO 1.5 MT

3B6 (Original product)
cctm.2p.can

Code: cctm.2p.can

CONTACT US FOR MORE INFORMATION

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

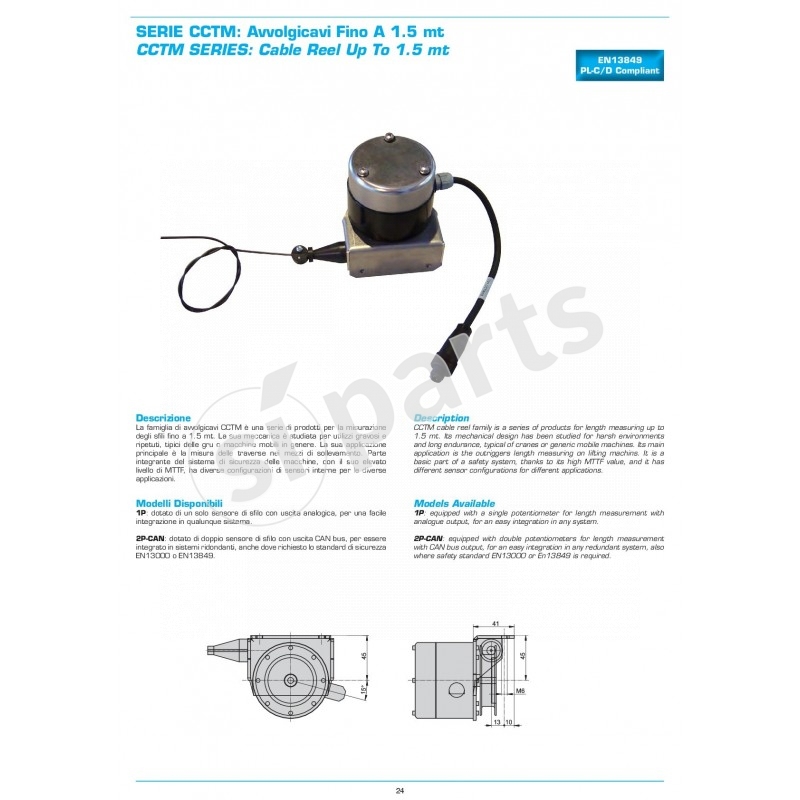

Description CCTM cable reel family is a series of products for length measuring up to 1.5 mt. Its mechanical design has been studied for harsh environments and long endurance, typical of cranes or generic mobile machines. Its main application is the outriggers length measuring on lifting machins. It is a basic part of a safety system, thanks to its high MTTF value, and it has
different sensor configurations for different applications.

Models Available

2P-CAN: equipped with double potentiometers for length measurement with CAN bus output, for an easy integration in any redundant system, also where safety standard EN13000 or En13849 is required.

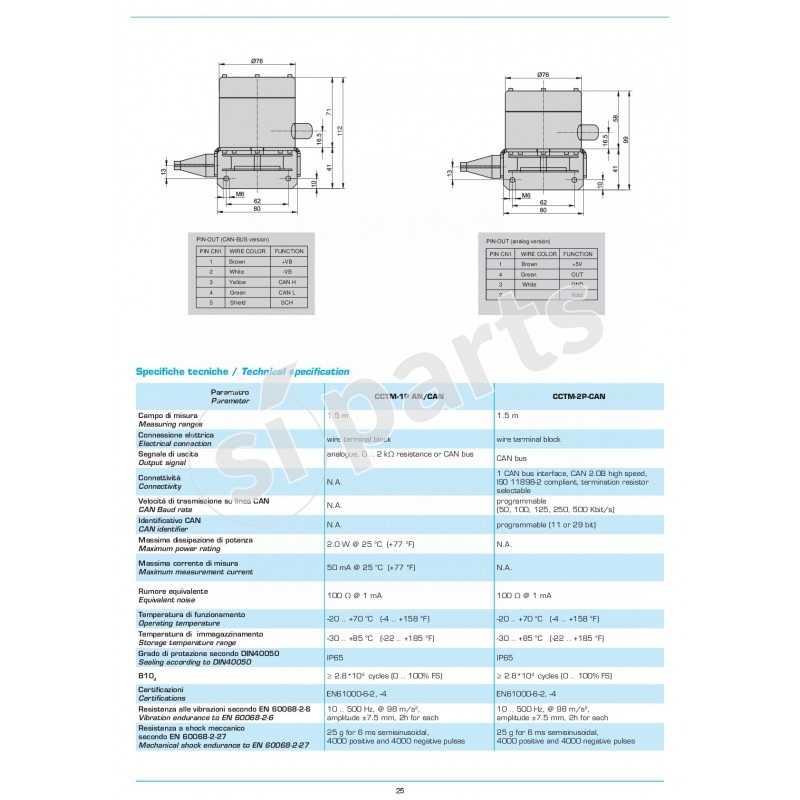

MEASURING RANGE
1.5 m

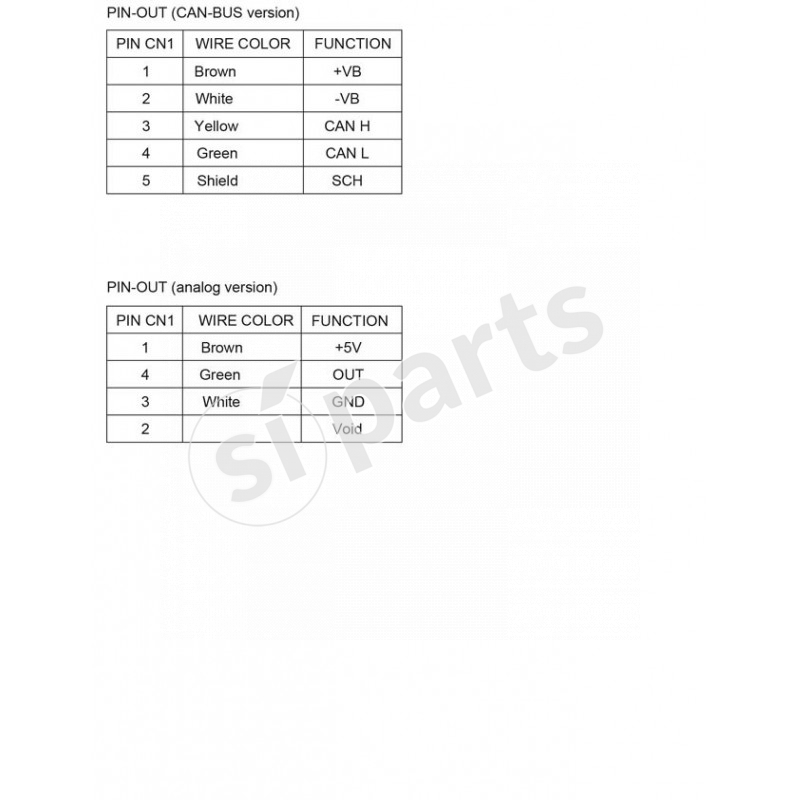

TYPE CONNECTION
WIRE TERMINAL BLOCK
OUTPUT SIGNAL
CAN BUS
EQUIVALENT NOISE
100 Ohm @ 1 mA
TEMPERATURA D'IMPIEGO °C
-20 .. +70 °C -4 .. +158 °F
STORAGE TEMPERATURE
-30 .. +85 °C -22 .. +185 °F
SEALING ACCORDIN TO DIN40050
IP65
B10D
>= 2.8*10^4 cycles 0 .. 100% FS
CERTIFICATIONS
EN61000-6-2, -4
VIBRATION ENDURANCE TO EN 60068-2-6
10 .. 500 Hz, @ 98 m/s2, amplitude ±7.5 mm, 2h for each
MECHANICAL SHOCK ENDURANCE TO EN 60068-2-7
25 g for 6 ms semisinusoidal, 4000 positive and 4000 negative pulses
CONNECTIVITY
1 CAN bus interface, CAN 2.0B high speed, ISO 11898-2 compliant, termination resistor selectable
TRANSMISSION BAUD RATE
programmable 50, 100, 125, 250, 500 Kbit/s
CAN IDENTIFIER
programmable 11 or 29 bit
APPLICATIONS

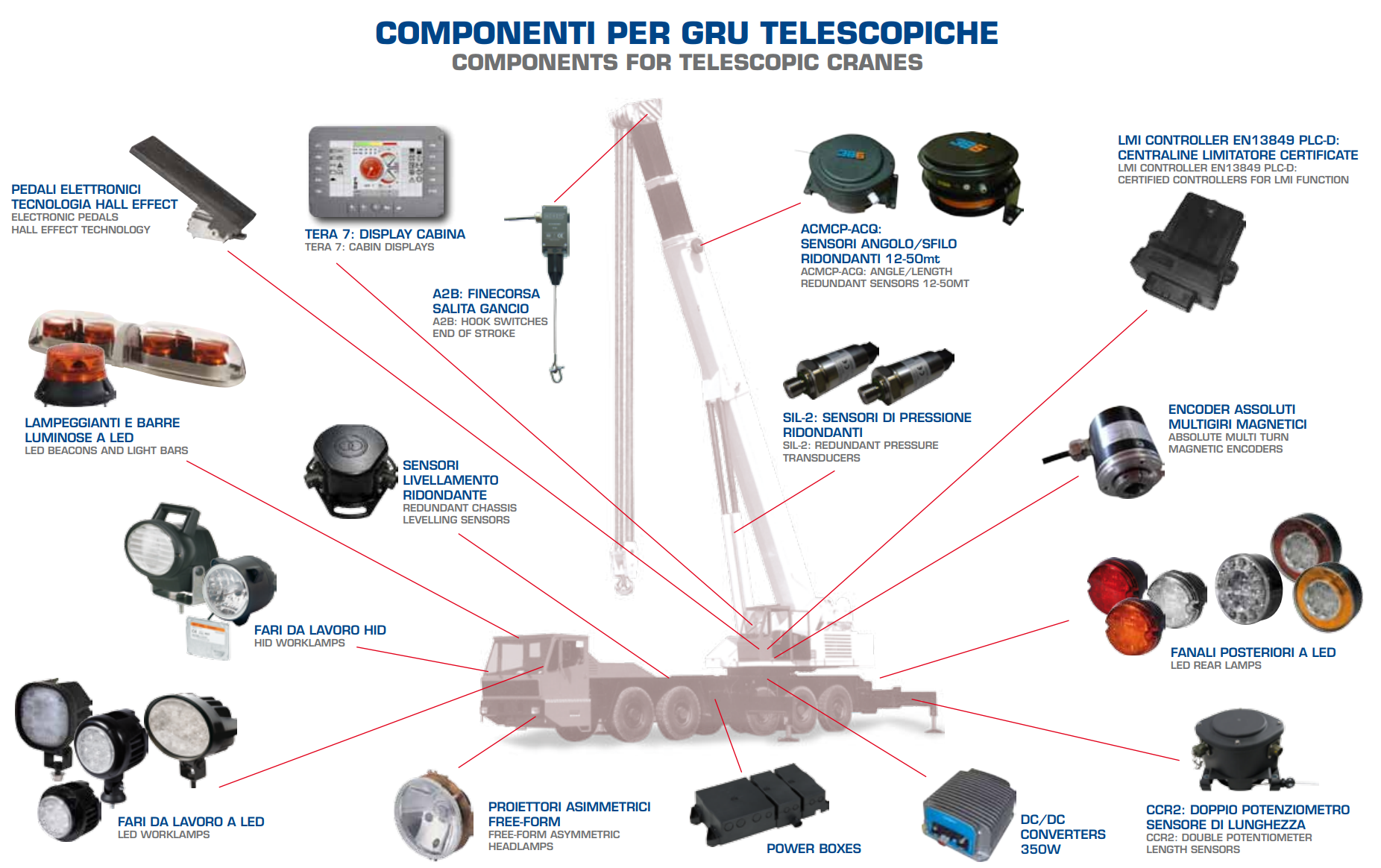

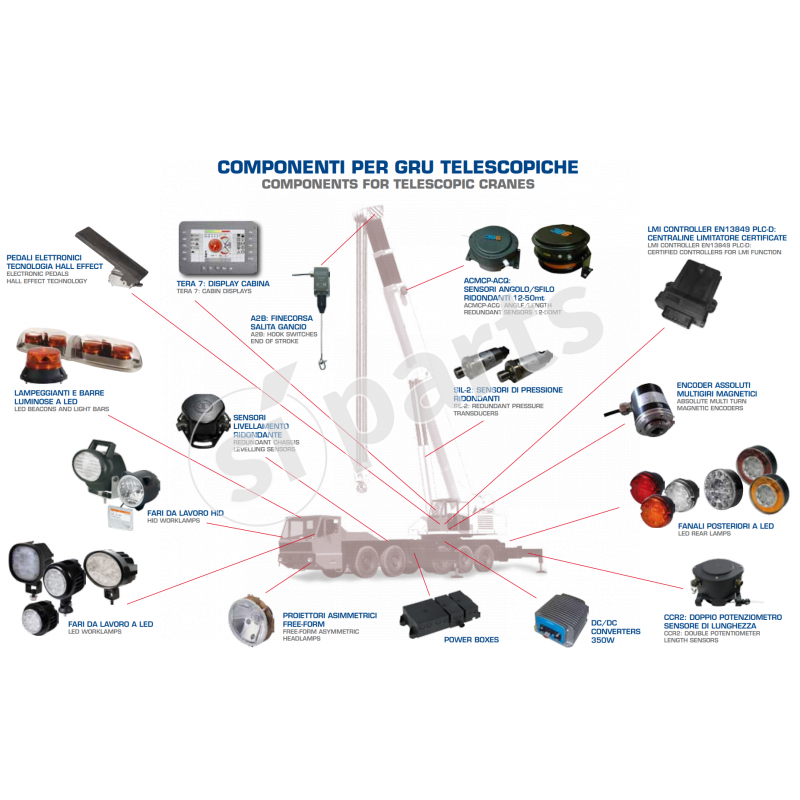

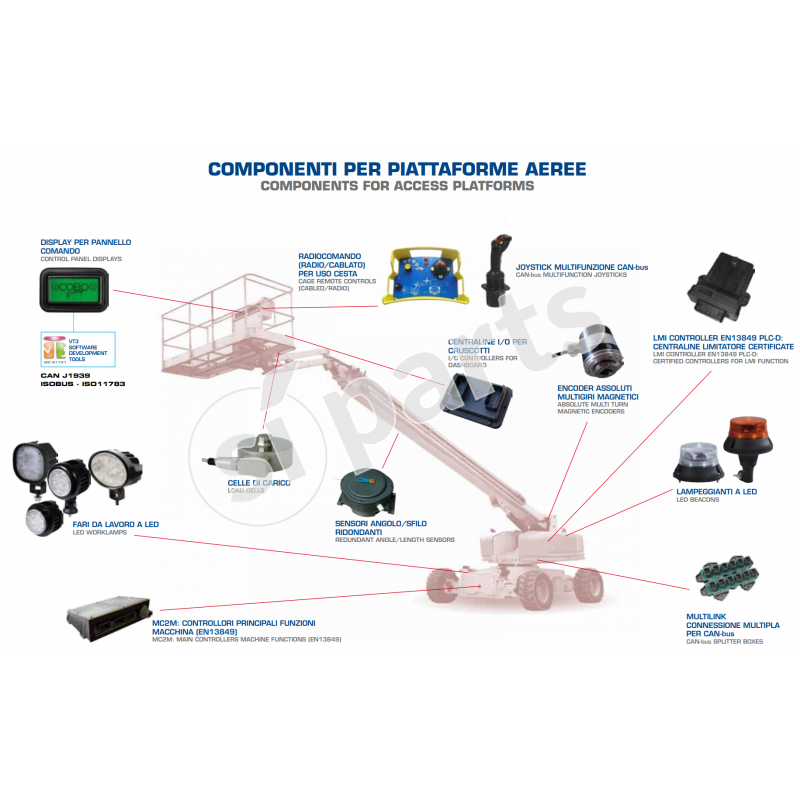

Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
