The image shown here is for illustrative purposes only.
LIGHTING PANEL
Code: 0C02139000
Doc. Code: 0C02139000
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| rated voltage | max direct current (a) | peak current 5" (a) | sealing (iec 529) | operating temperature (°c) |
|---|---|---|---|---|
| 24 v | 8 a induttivi/inductive | 15 a | ip 55 | -20° ÷ +40° |
sealing iec 529
ip55
max operating voltage
28v
max inductive current
8a
max resistive current
15a
housing material
plastic

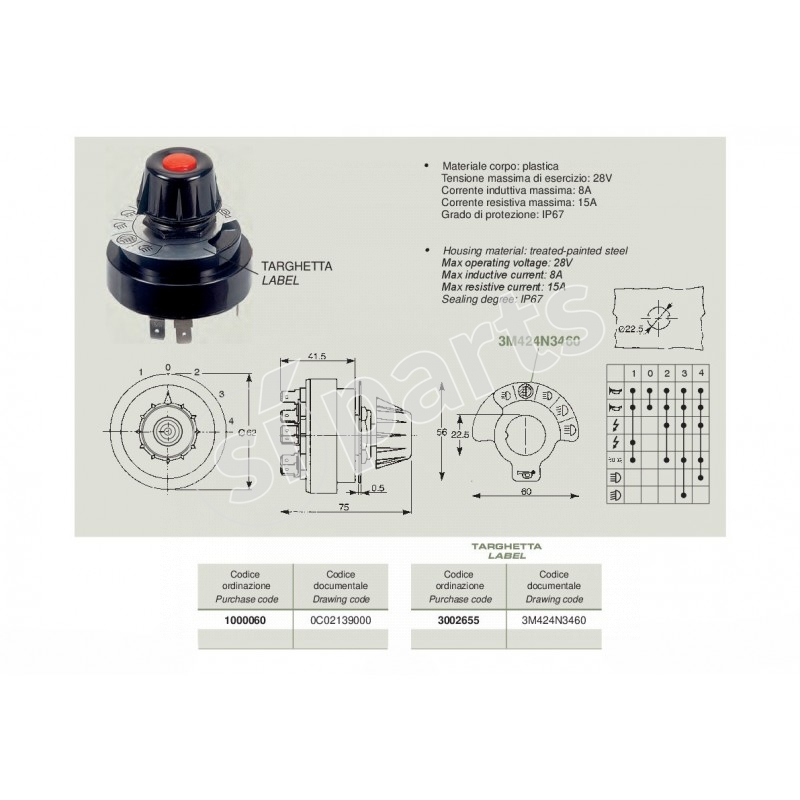

-drawing code 0c02139000, purchase code 1000060
-drawing code 1c02532000, purchase code 2001928, label
-drawing code 1c02532000, purchase code 2001928, label
