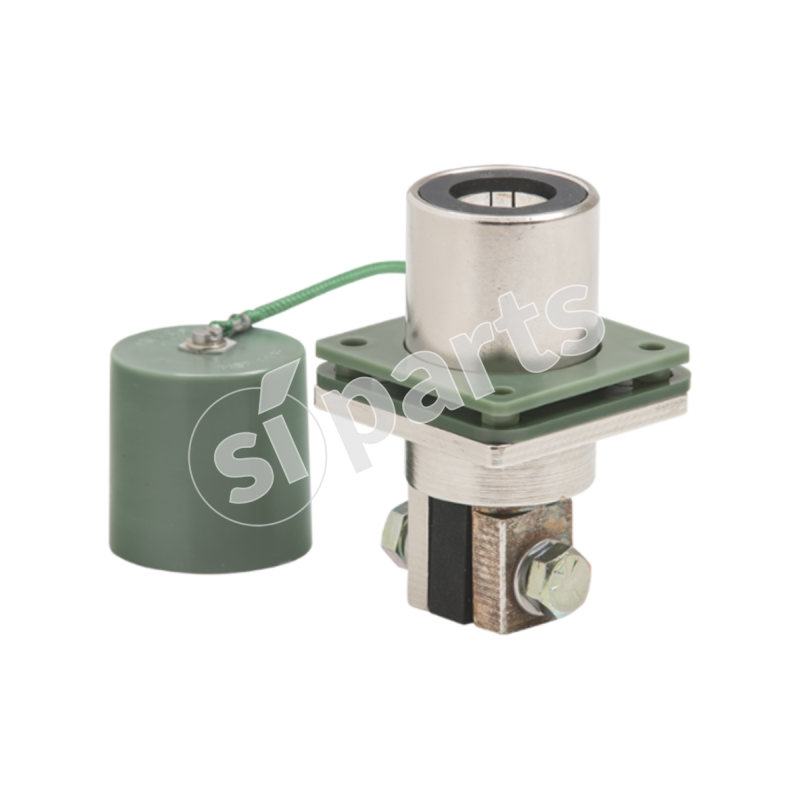

FIX COAXIAL CONNECTOR

IMEAR (Original product)
1001867

Code: 0M09937000

Doc. Code: 0M09937000-01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
FIX COAXIAL CONNECTOR

CAP AND INSULATING GASKET MATERIAL: nylon
TERMINAL: brass
CONTINUOUS OPERATING CURRENT: 500A - 24V
OPERATING CURRENT FOR 360 SEC: 1000A - 24V with cables AWG 00, 1500A - 24V with cables AWG 000
MAX CONTACT RESISTANCE: 0,5 mΩ
OPERATING TEMPERATURE: -55°C ÷ + 125°C

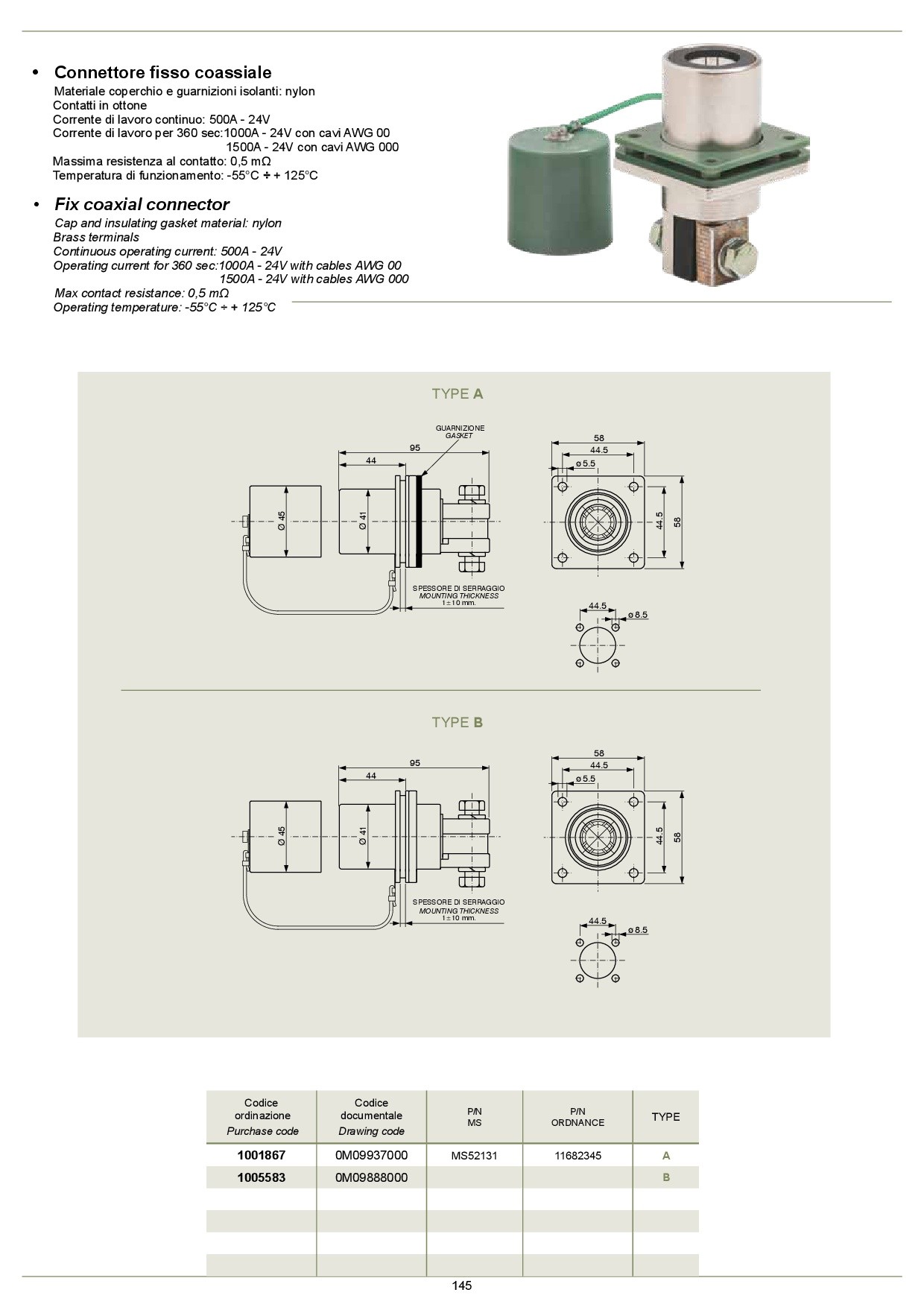

Available in the following versions:
- DRAWING CODE 0M09937000, PURCHASE Code 1001887, MS MS52131, ORDNANCE 11682345, type A
- DRAWING CODE 0M09888000, PURCHASE Code 1005583, type B
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
