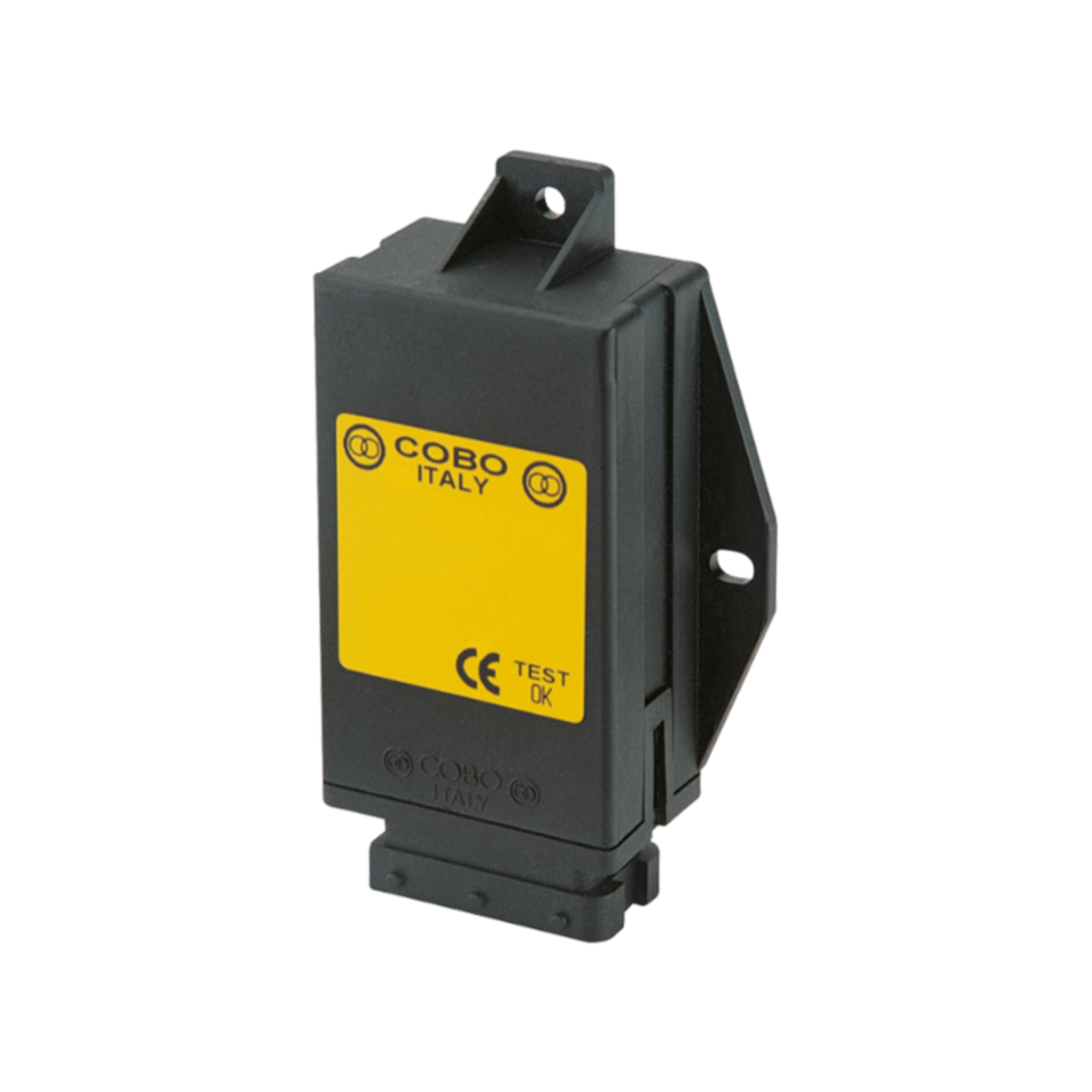

The image shown here is for illustrative purposes only.
CONTROL UNITS
Code: 34.0177.0000.02
Doc. Code: 34-0177-0000-02
Pack 50 pieces.
€5,835.00
(€116.70 Cad.)
Tax excluded
(7118.7 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
the switch lever controller can manage all lightings activated by a cabin switch lever through direct input lines. it is fully protected against short circuits and overcurrents.
| inputsoutputs | configuration | nr. i/o |
|---|---|---|
| inputs | digital input: key on, 12 v | 1 |
| inputs | digital input (on, off, memory): 12 v high side | 3 |
| inputs | digital input (enable): 24v high side | 1 |
| outputs | output (sb on), 2.5 a | 1 |
| outputs | output (sb off), 2,5 a | 1 |
| outputs | output (memory signal), 12 v - 9 a | 1 |
| outputs | output (converter signal): digital, on/off, 1 a, low side | 1 |
real time clock rtc
no
power supply voltage v
9-16v
load dump protection
yes
storage temperature
from - 30 °c to +80 °c from - 22 °f to +176 °f
operating temperature
from - 40 °c to +90 °c from - 40 °f to +194 °f
sealing iec 529
ip66
housing
abs enforced pa66
connector
1 x 24 poles automotive
goretex valve
no

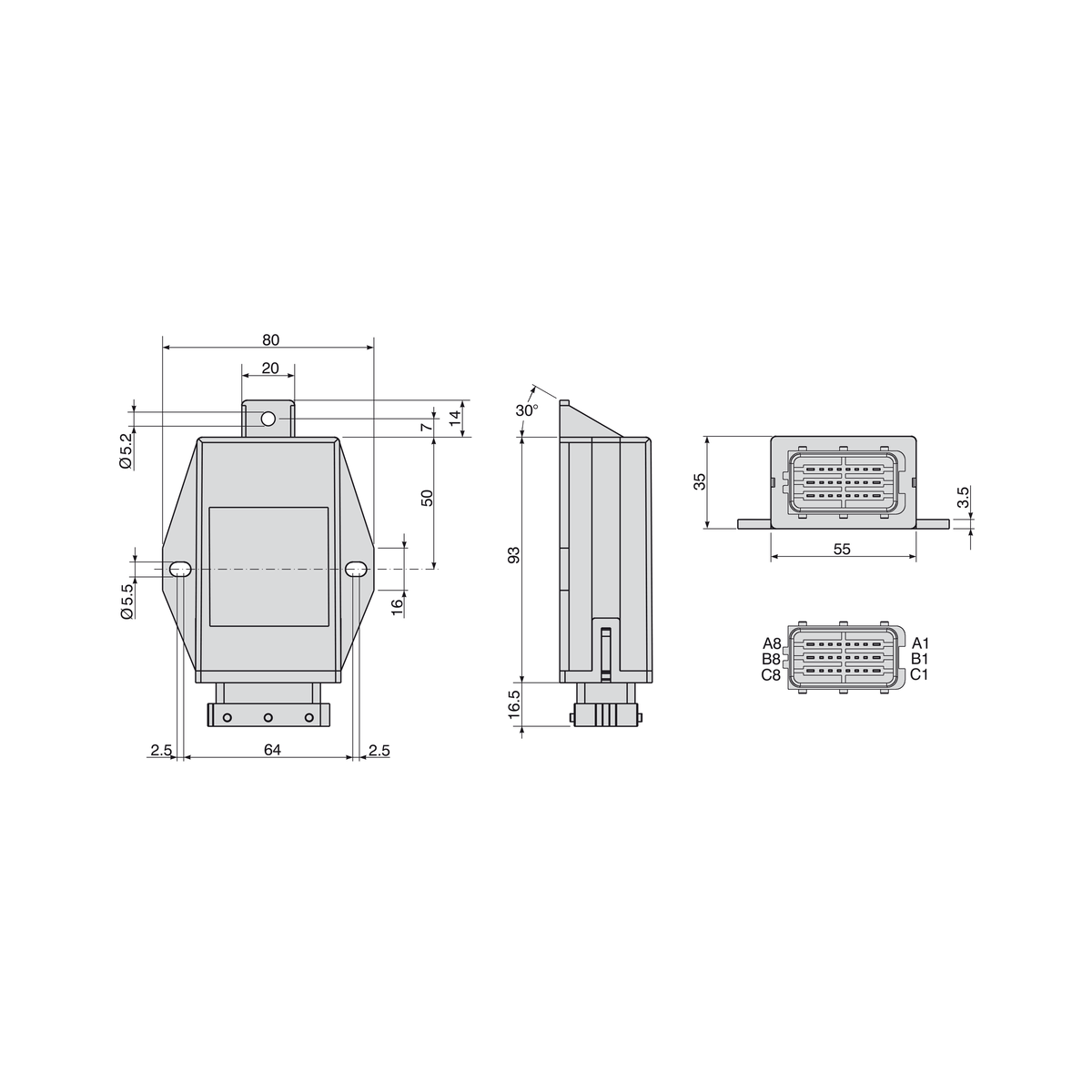

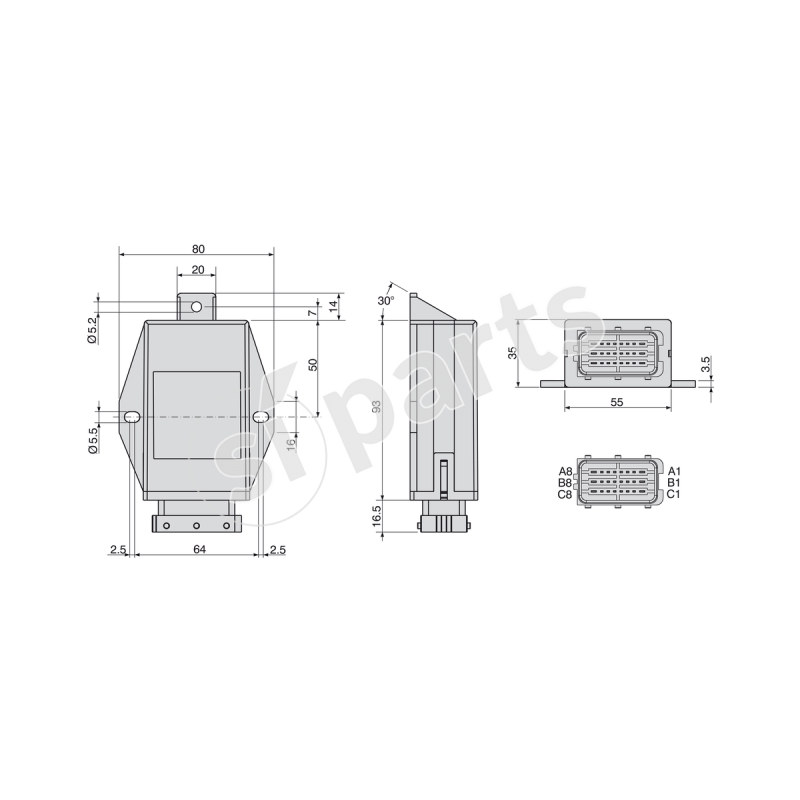

dimensions mm
123.5 x 80 x 35 mm
weight
100 g
installation
horizontal/vertical, 3 screws
ce standard according 2004/104/ce
iso 7637 - emc 2001/ce
