GEARCASE

COBO (Original product)
1030691

Code: 34.0135.0000.01

Doc. Code: 34-0135-0000-01

€380.11
tax excluded

(463.73 € tax incl.)

Quantity

Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

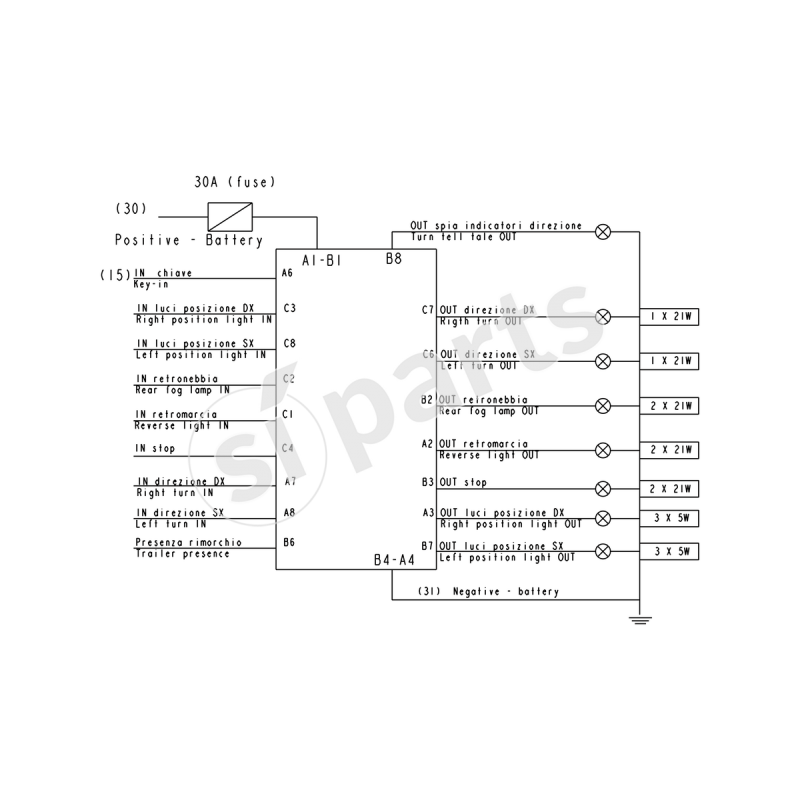

Description The switch lever controller can manage all lightings activated by a cabin switch lever through direct input lines. It is fully protected against short circuits and overcurrents.
INPUTSOUTPUTSCONFIGURATIONNR. I/O
INPUTSDigital, On/Off, Low Side5
OUTPUTSDigital, High SideOn/Off, 1.5 A6
REAL TIME CLOCK RTC
NO
POWER SUPPLY VOLTAGE V
9-16V
LOAD DUMP PROTECTION
Yes
STORAGE TEMPERATURE
From - 30 °C to +80 °C from - 22 °F to +176 °F
OPERATING TEMPERATURE
From - 40 °C to +90 °C from - 40 °F to +194 °F
SEALING IEC 529
IP65
HOUSING
ABS ENFORCED PA66
CONNECTOR
1 X 24 POLES AUTOMOTIVE
GORETEX VALVE
NO

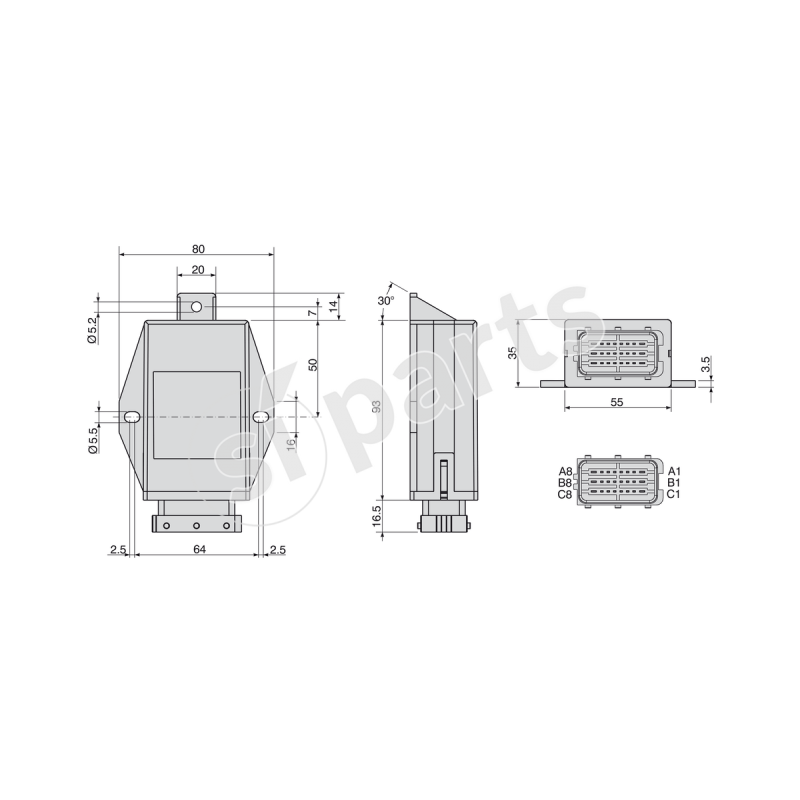

DIMENSIONS MM
123.5 x 80 x 35 mm
WEIGHT
100 g
INSTALLATION
HORIZONTAL/VERTICAL, 3 SCREWS
CE STANDARD ACCORDING 2004/104/CE
Yes
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
