The image shown here is for illustrative purposes only.
CONTROL UNIT
Code: 34.0115.0000.01
Doc. Code: 34-0115-0000-01
€180.09
Tax excluded
(219.71 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
trailer lighting controller can manage all typical trailer lightings through direct input lines. it is fully protected against short circuits and overcurrents. it can manage lightings up to 21w.

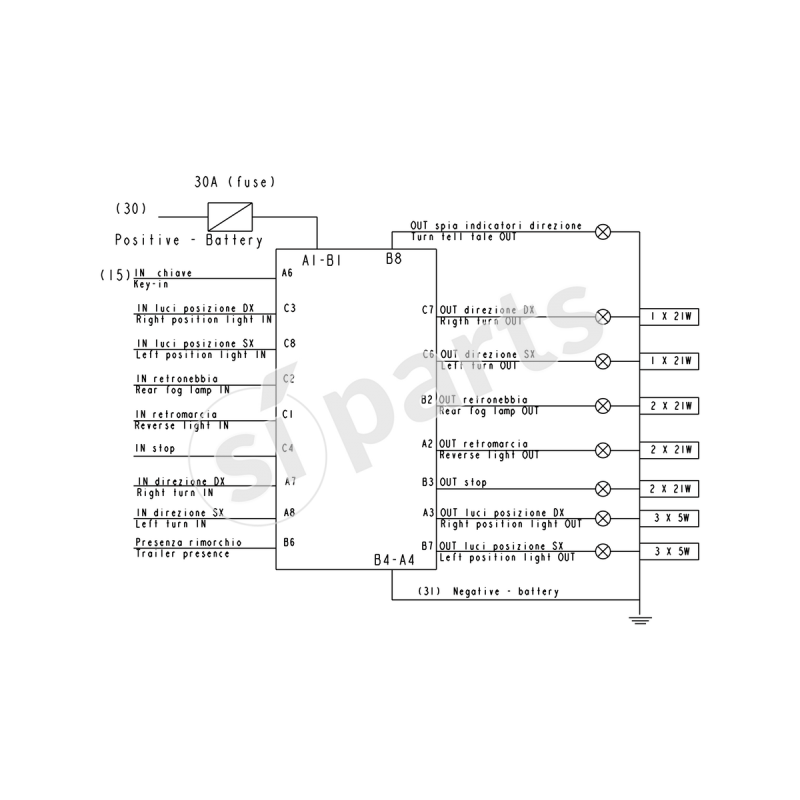

| inputsoutputs | configuration | nr. i/o |
|---|---|---|
| inputs | direzione destra - direction right | 1 |
| inputs | direzione sinistra - direction left | 1 |
| inputs | retromarcia - reverse gear | 1 |
| inputs | retronebbia - rear fog lamp | 1 |
| inputs | luci posizione dx - position light rh | 1 |
| inputs | luci posizione sx - position light lh | 1 |
| inputs | presenza rimorchio trailer presence | 1 |
| inputs | freno - stop | 1 |
| outputs | luci direzione dx - direction light rh (1x21w) | 1 |
| outputs | luci direzione sx - direction light lh (1x21w) | 1 |
| outputs | luci posizione dx - position light rh (3x5w) | 1 |
| outputs | luci posizione sx - position light lh (3x5w) | 1 |
| outputs | luci retromarcia - reverse light (2x21w) | 1 |
| outputs | luci stop - stop lights (2x21w) | 1 |
| outputs | spia luci posizione - position warning light (led) | 1 |
| outputs | luci retronebbia - rear fog lamp light (2x21w) | 1 |
real time clock rtc
no
power supply voltage v
9-16v
load dump protection
yes
storage temperature
from - 30 °c to +80 °c from - 22 °f to +176 °f
operating temperature
from - 40 °c to +90 °c from - 40 °f to +194 °f
sealing iec 529
ip66
housing
abs enforced pa66
connector
1 x 24 poles automotive
goretex valve
no

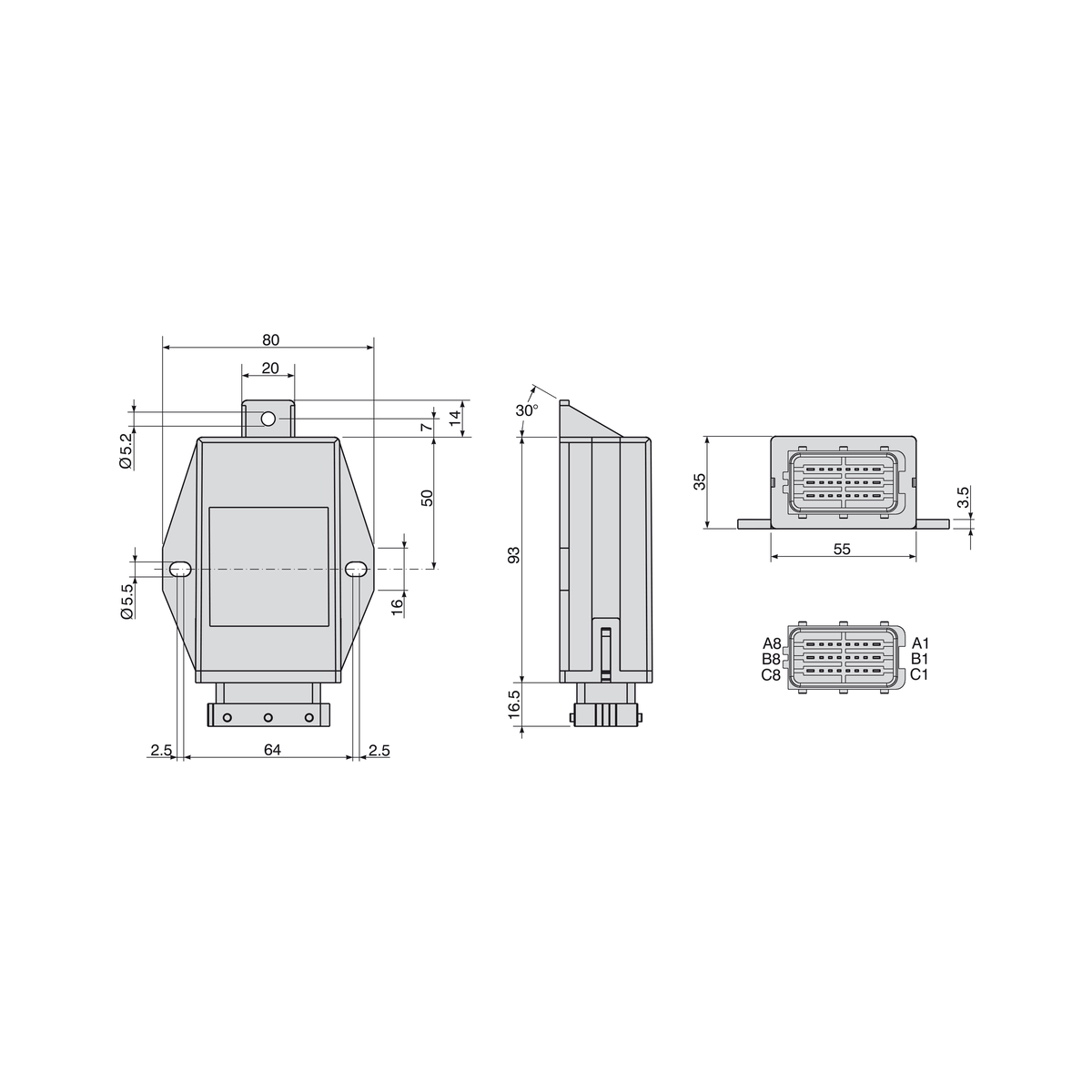

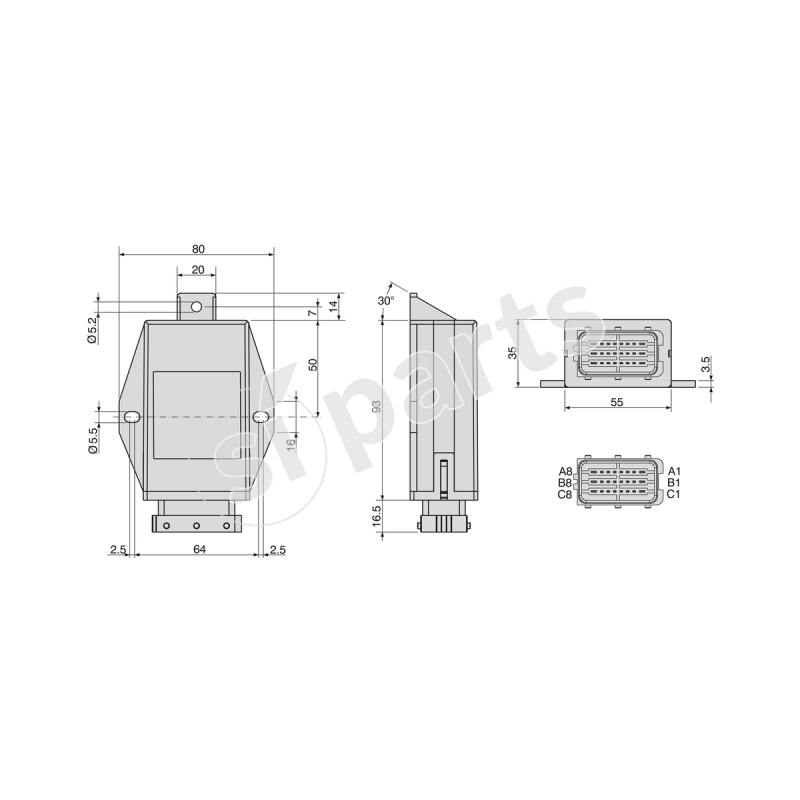

dimensions mm
123.5 x 80 x 35 mm
weight
100 g
installation
horizontal/vertical, 3 screws
ce standard according 2004/104/ce
yes
