The image shown here is for illustrative purposes only.

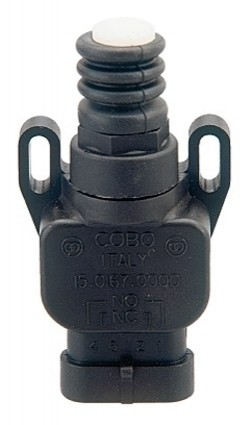

SNAP-ACTION SWITCH
Code: 15.0167.0000.01
Doc. Code: 15-0167-0000-01
Pack 5 pieces.
€163.50
(€32.70 Cad.)
Tax excluded
(199.47 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| rated voltage | max direct current (a) | peak current 5" (a) | sealing (iec 529) | operating temperature (°c) |
|---|---|---|---|---|
| 12 v nc | 12 a resisitivi / resistive | 30 a | ip 67 | -40°c ÷ +85°c |
| 12 v no | 5 a induttivi/inductive | 30 a | ip 67 | -40°c ÷ +85°c |
| 24 v nc | 8 a resisitivi / resistive | 20 a | ip 67 | -40°c ÷ +85°c |
| 24 v no | 3 a induttivi/inductive | 20 a | ip 67 | -40°c ÷ +85°c |
