The image shown here is for illustrative purposes only.

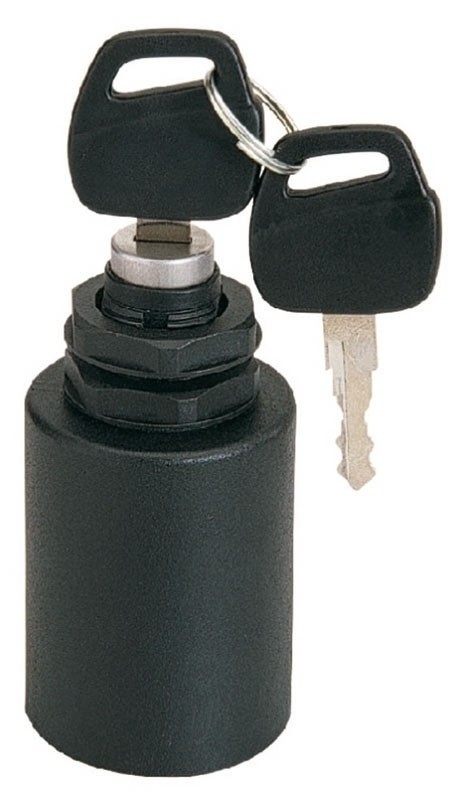

START SWITCH
Code: 14.0312.0000.01
Doc. Code: 14-0312-0000-01
€70.35
Tax excluded
(85.83 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
before starting the engine again, tuen the key into position "0"

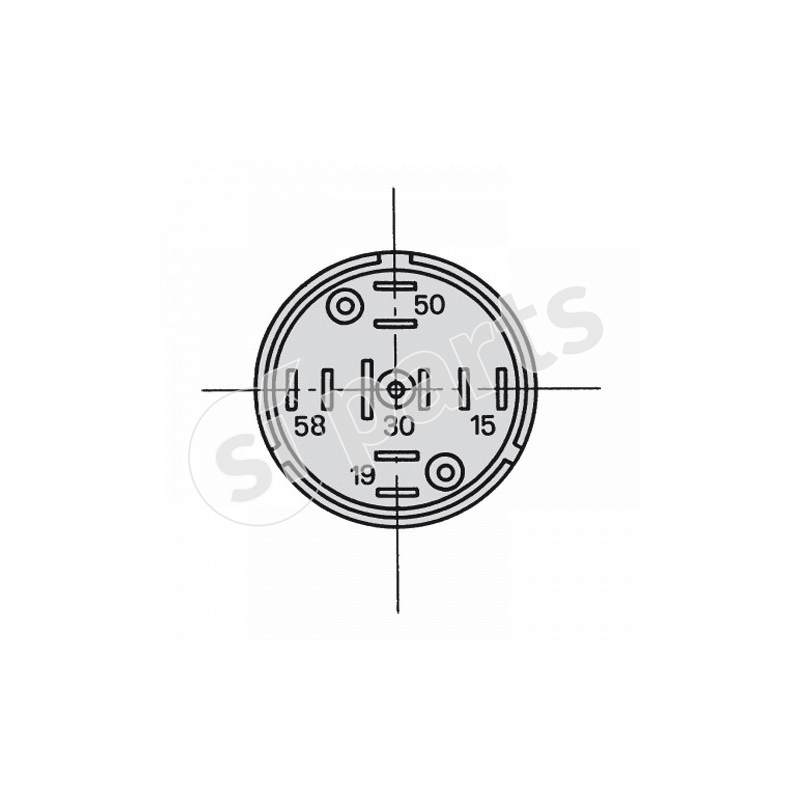

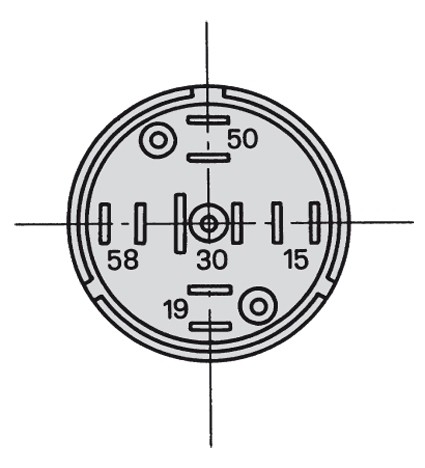

| key position | connection | max current 12v | max connec. time | function | max current 24v | notes | connected terminals |
|---|---|---|---|---|---|---|---|
| 0 | 30a | inf. | removable key | 30<15 | |||
| 1 | 30a | inf. | removable key | 30<50 | |||
| 2 | 30a | inf. | momentary position | 19<58 |
key removable
only in position 0
housing
black polyamide
sealing iec 529
ip65
temperatura d'impiego °c
- 20 ÷ + 85
restart inhibitor
yes
