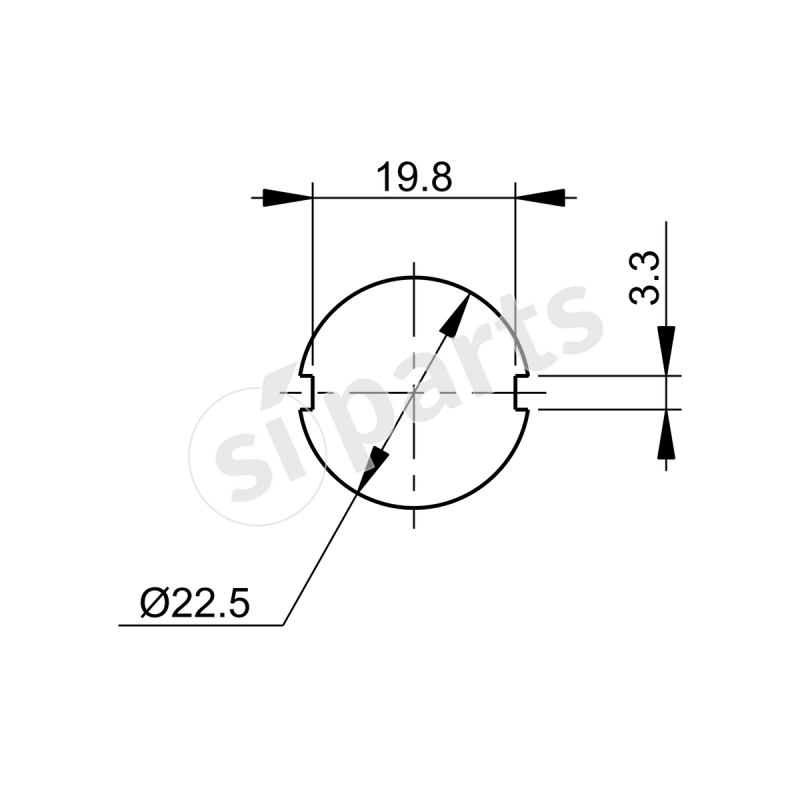

The image shown here is for illustrative purposes only.
IGNITION SWITCH
Code: 14.0323.0000.11
Doc. Code: 14-0323-0000-11
€75.75
Tax excluded
(92.42 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description safety lock
restart inhibitor
restart inhibitor
| key position | connection | max current 12v | max connec. time | function | max current 24v | notes |
|---|---|---|---|---|---|---|
| p | 8a | inf. | 5a | removable key | ||
| 0 | 35a | inf. | 15a | removable key | ||
| 1 | 60a | 2min. | 25a | removable key | ||
| 2 | 60a | 1min. | 25a | momentary position | ||
| 3 | 60/18a | spunto-peak/1min. | 30/10a | momentary position |
key removable
only in position p-0
housing
blsck acetal resin
temperatura d'impiego °c
-40 -+ 85
sealing iec 529
ip65
