The image shown here is for illustrative purposes only.

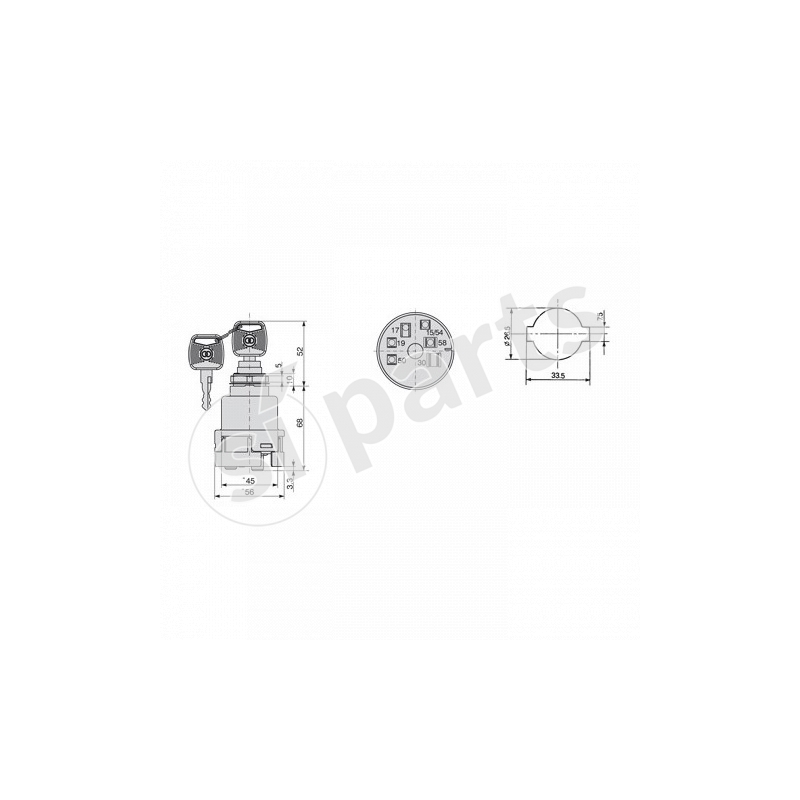

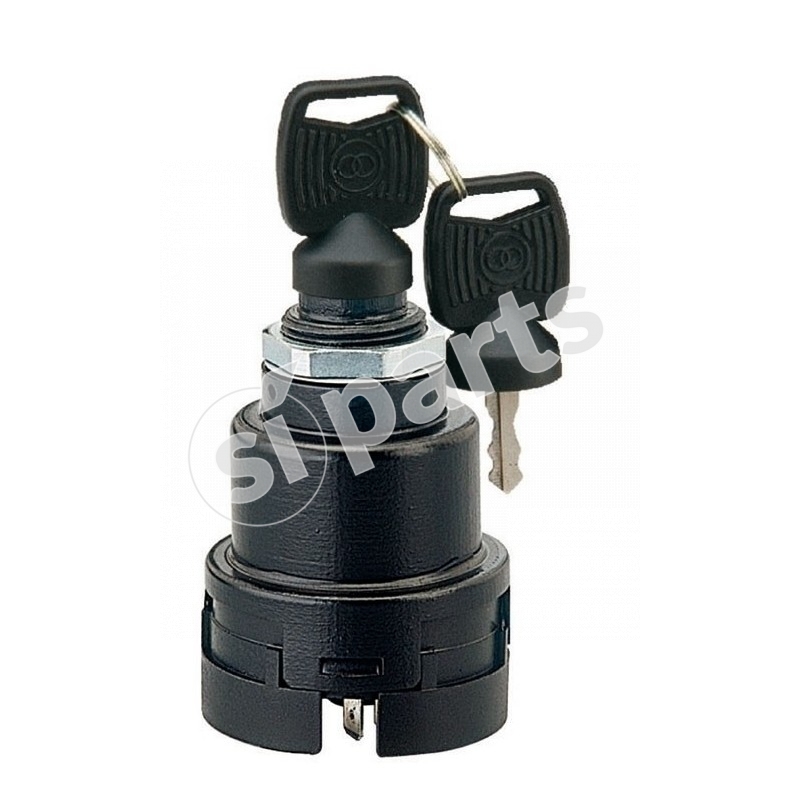

IGNITION SWITCH
Code: 14.0324.0000.11
Doc. Code: 14-0324-0000-11
€81.00
Tax excluded
(98.82 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| key position | connection | max current 12v | max connec. time | function | max current 24v | notes |
|---|---|---|---|---|---|---|
| 0 | 8a | inf. | 4a | removable key | ||
| 1 | 40a | inf. | 20a | removable key | ||
| 2 | 8a | inf. | 4a | removable key | ||
| 3 | 10a | 1 min. | 5a | momentary position | ||
| 4 | 40a | 1min. | 10a | momentary position |
key removable
only in position 0
housing
blsck acetal resin
temperatura d'impiego °c
-40 -+ 85
sealing iec 529
ip65
