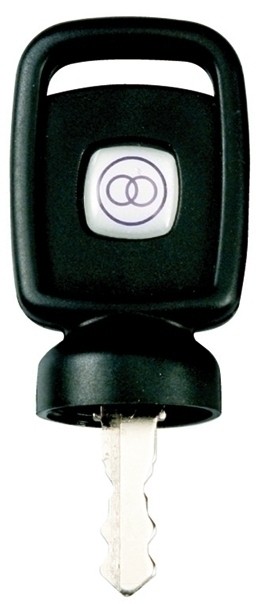

The image shown here is for illustrative purposes only.

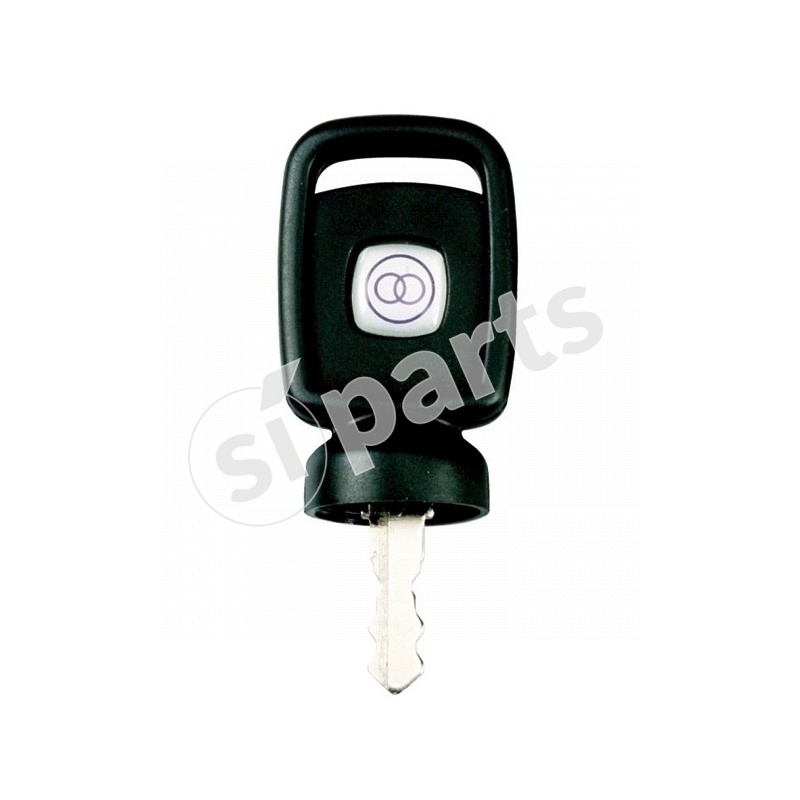

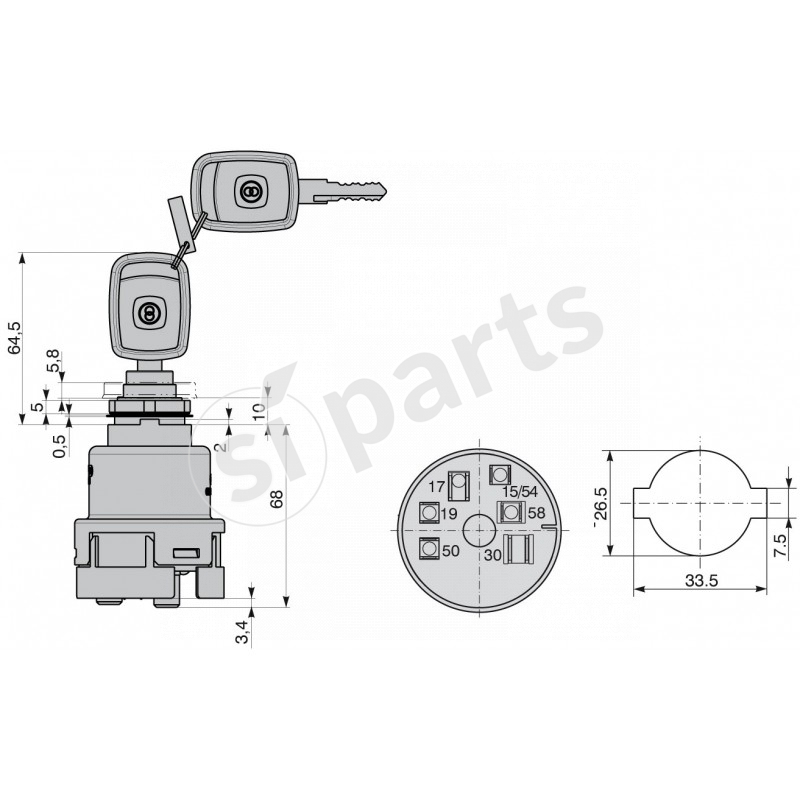

IGNITION SWITCH
Code: 14.0341.1000.11
Doc. Code: 14-0341-1000
€87.65
Tax excluded
(106.93 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

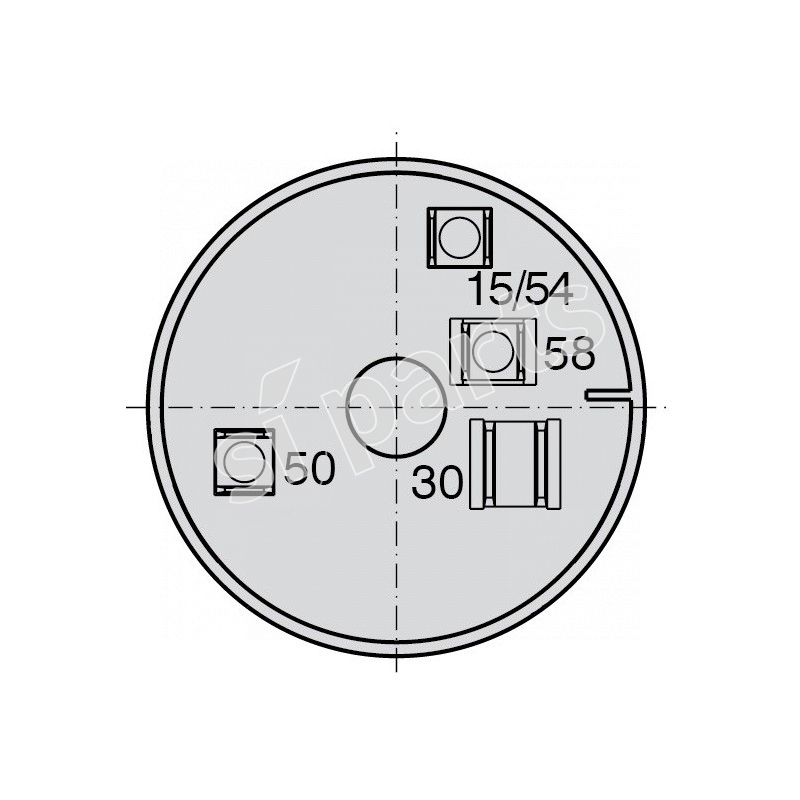

| key position | connection | max current 12v | max connec. time | function | max current 24v | notes | connected terminals |
|---|---|---|---|---|---|---|---|
| p | 8a | inf. | 5a | removable key | 30 < 58 | ||
| 0 | 35a | inf. | 15a | removable key | 30 < 15 | ||
| 1 | 60/18a | spunto-peak/1 min. | 30/10a | removable key | 30 < 50 | ||
| 2 | momentary position |
key thickness
1,8mm
housing
blsck acetal resin
sealing iec 529
ip65
temperatura d'impiego °c
- 40÷ + 85
electrical lifes cycles
25.000
n° key code
1
