The image shown here is for illustrative purposes only.

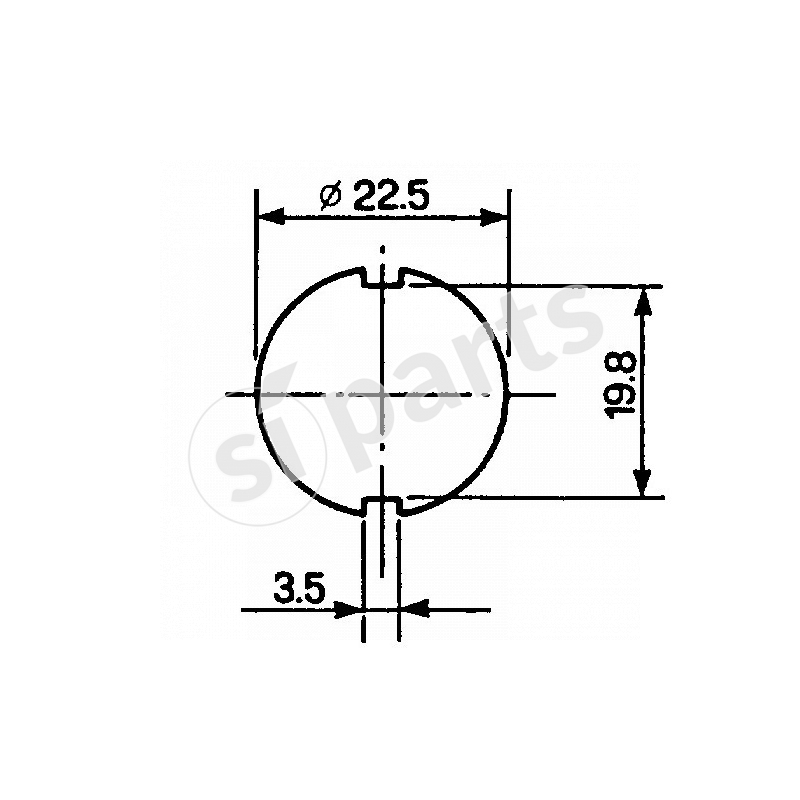

IGNITION SWITCH
Code: 14.0358.0000.11
Doc. Code: 14-0358-0000-11
€78.35
Tax excluded
(95.59 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
key without protection cap- without key

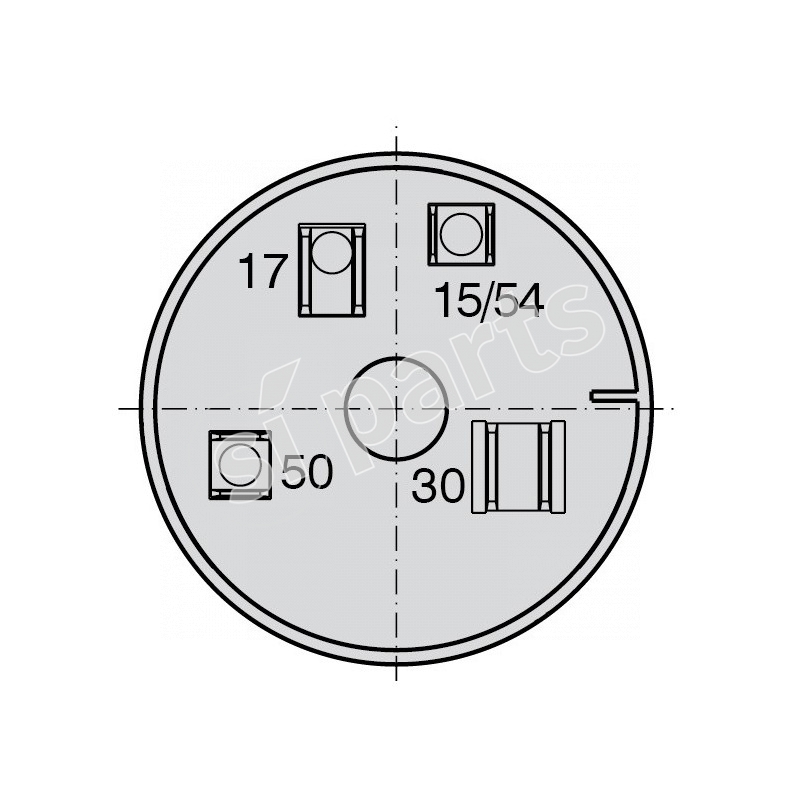

| key position | connection | max current 12v | max connec. time | function | max current 24v | notes | connected terminals |
|---|---|---|---|---|---|---|---|
| 0 | 35a | inf. | 15a | removable key | 30 > 15 | ||
| 1 | 35a | inf. | 15a | removable key | 30 > 17 | ||
| 2 | 60/18a | spunto-peak/1min. | 30/10a | momentary position | 30 > 50 |
housing
blsck acetal resin
temperatura d'impiego °c
-40 -+ 85
sealing iec 529
ip65
restart inhibitor
yes
