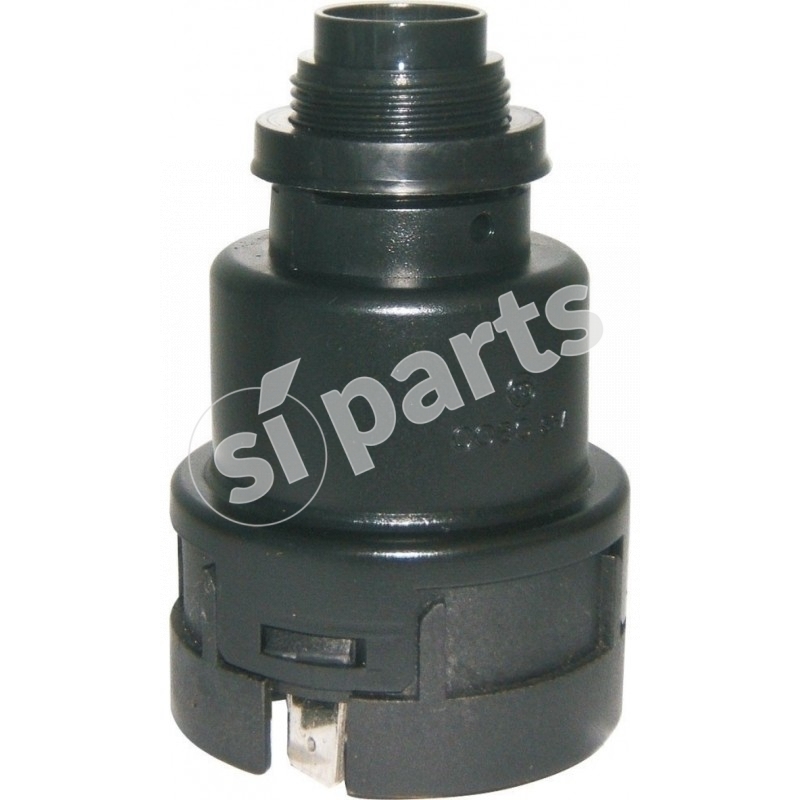

The image shown here is for illustrative purposes only.

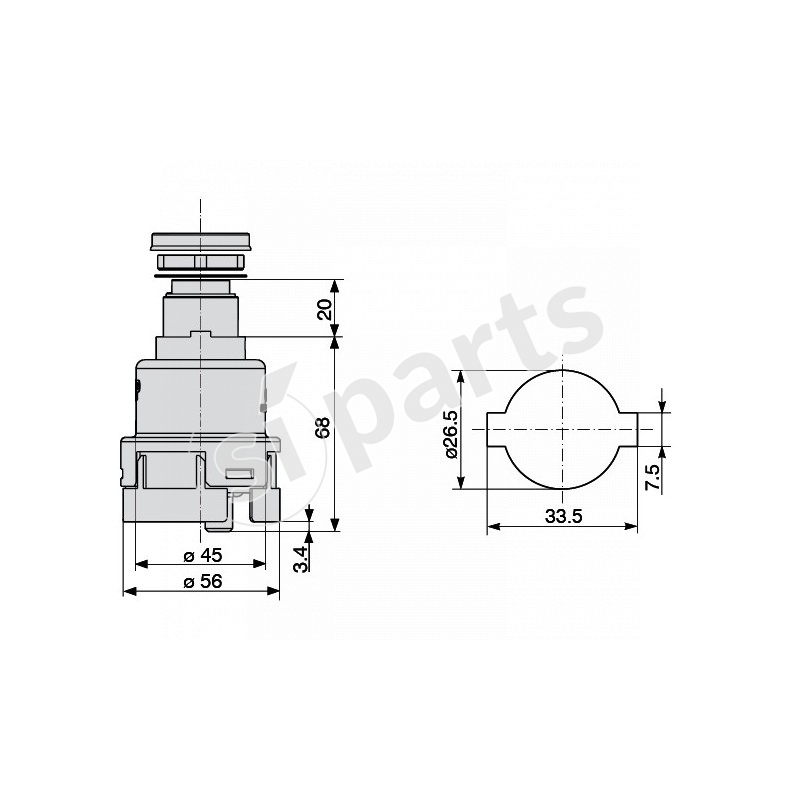

IGNITION SWITCH
Code: 14.0431.0100.11
Doc. Code: 14-0431-0100-11
€69.50
Tax excluded
(84.79 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
with standard lock for doors/tank cap
once assembled, the lock can't be removed
once assembled, the lock can't be removed

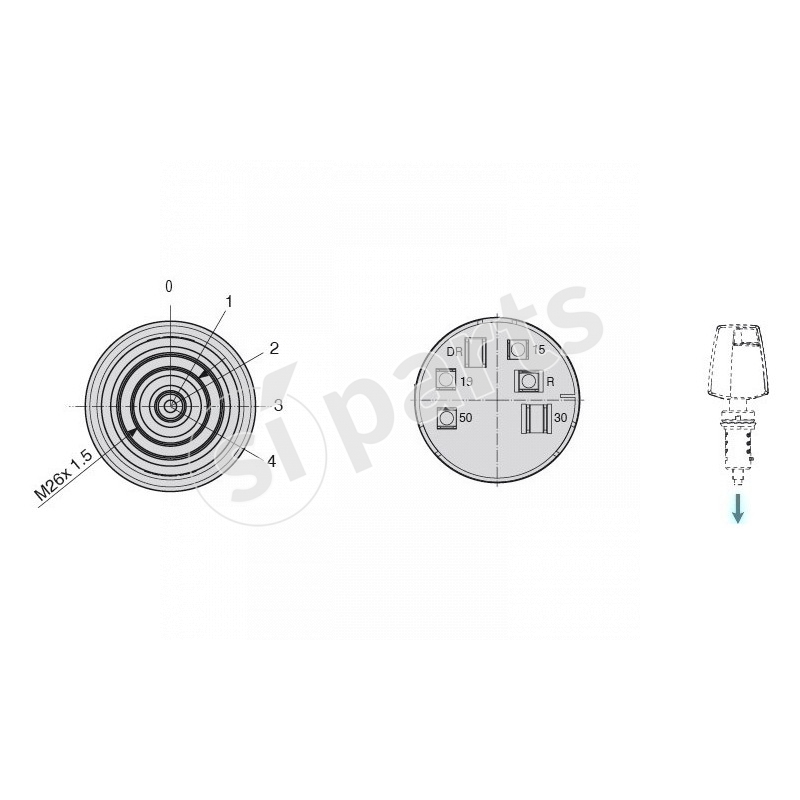

| key position | connection | max current 12v | max connec. time | function | max current 24v | notes | connected terminals |
|---|---|---|---|---|---|---|---|
| 0 | 8a res. | inf. | 4a res. | removable key | 30>r | ||
| 1 | 40a indutt. | inf. | 20a indutt. | removable key | 30>15 | ||
| 2 | 8a indutt. | inf. | 4a indutt. | removable key | 30>19 | ||
| 3 | 10a resist. | inf. | 5a resist. | momentary position | 30>dr | ||
| 4 | 40a indutt. | 1 min. | 40a indutt. | momentary position | 30>50 |
housing
blsck acetal resin
temperatura d'impiego °c
-40 -+ 85
sealing iec 529
ip65
electrical lifes cycles
25.000 cicli
