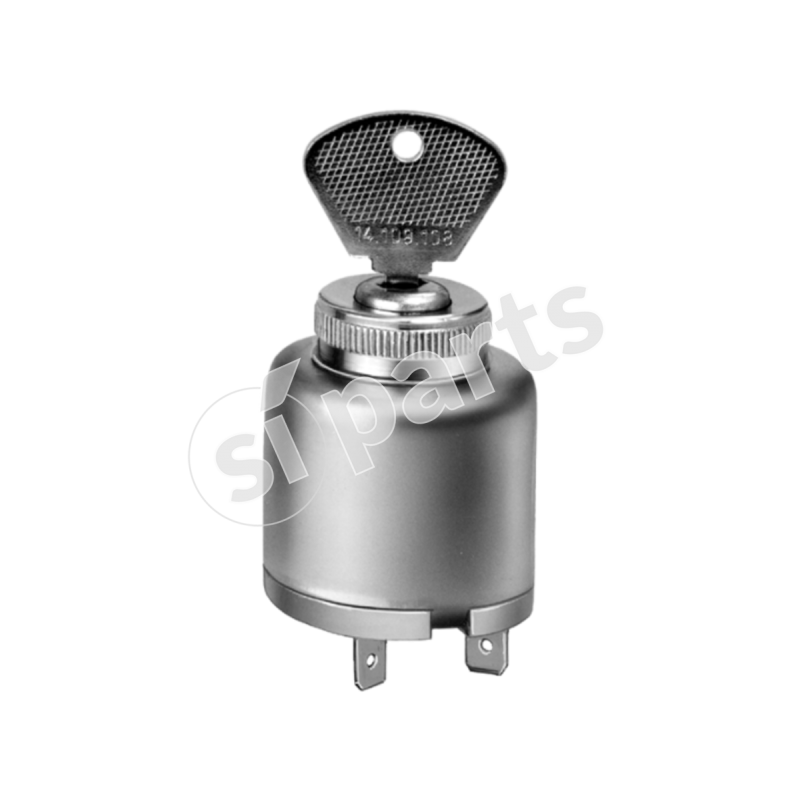

The image shown here is for illustrative purposes only.
START SWICH
Code: 14.111.000.11
Doc. Code: 14-111-000
€47.95
Tax excluded
(58.5 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

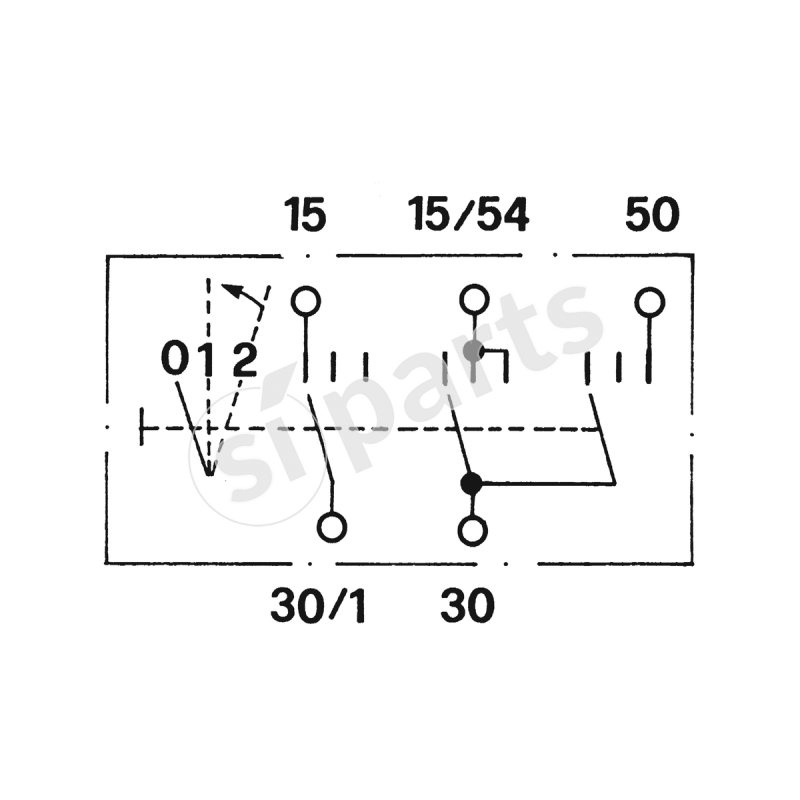

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| 0 | 30/1-15 | 20 a | inf. | engine stop |
| 1 | 30-15/54 | 20 a | inf. | gear |
| 2 | 30-15/54 | 20 a | inf. | gear/start |
| 2 | 30-50 | 50 a | 1 min. |
key removable
only in position 0
type contact
break contact mechanism
