The image shown here is for illustrative purposes only.

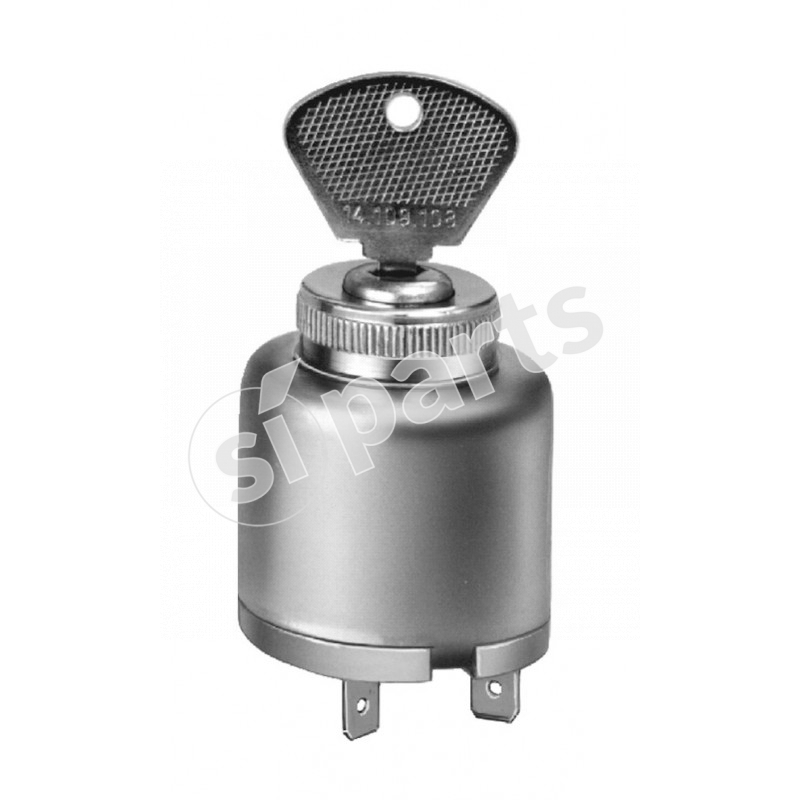

IGNITION SWITCH
Code: 14.120.000.11
€50.00
Tax excluded
(61 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

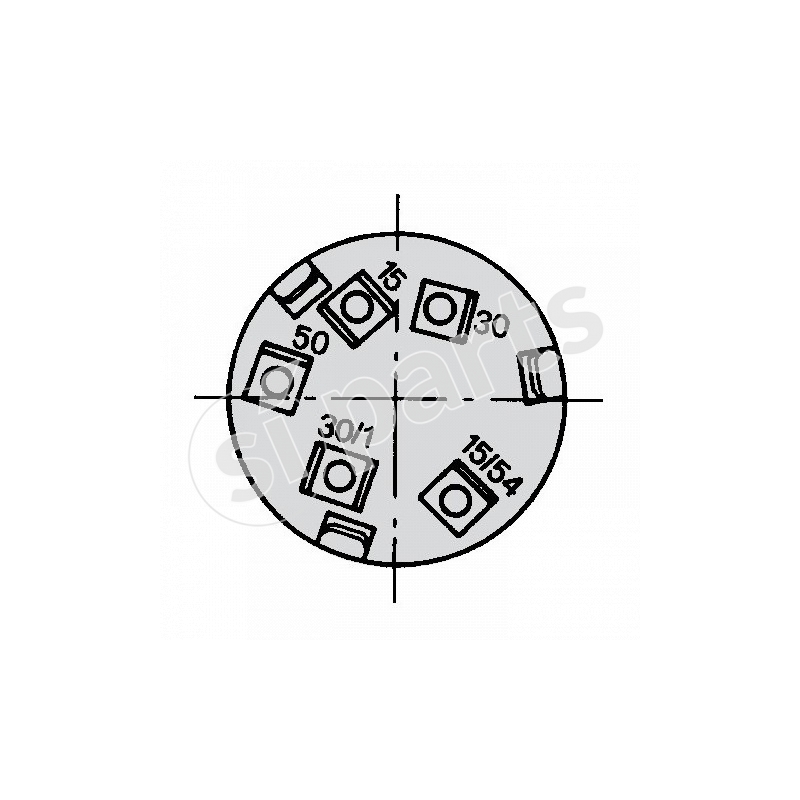

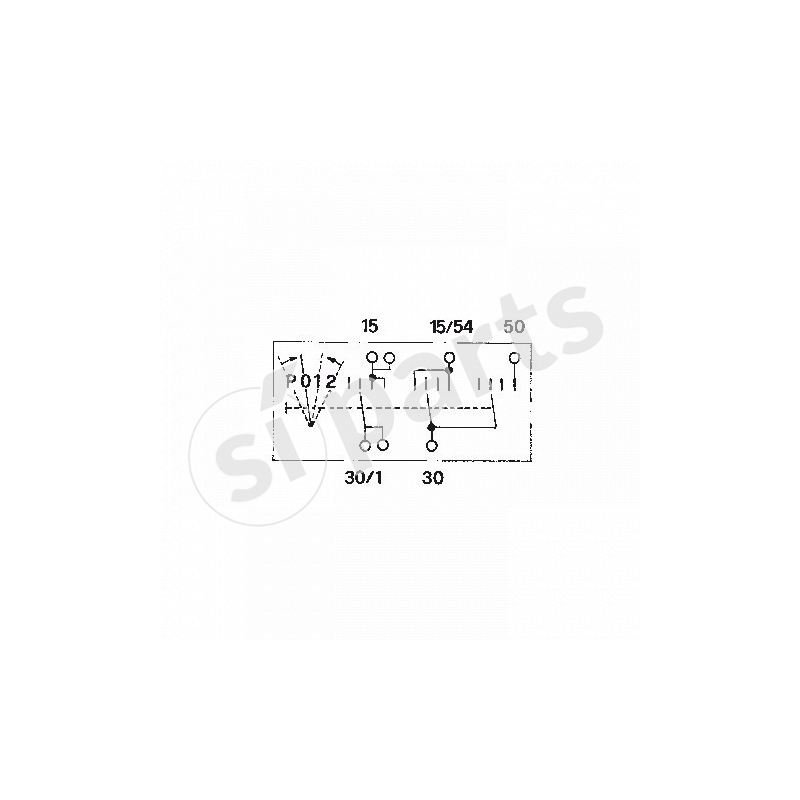

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| p | 30-15/54 | 25 a | 1 min. | preheating |
| 0 | ||||
| 1 | 30/1-15 | 30 a | inf. | gear |
| 2 | 30/1-15 | 30 a | inf. | gear/preheating/start |
| 2 | 30-15/54 | 25 a | inf. | |
| 2 | 30-50 | 50 a | 1 min. |
key removable
only in position 0
type contact
break contact mechanism
