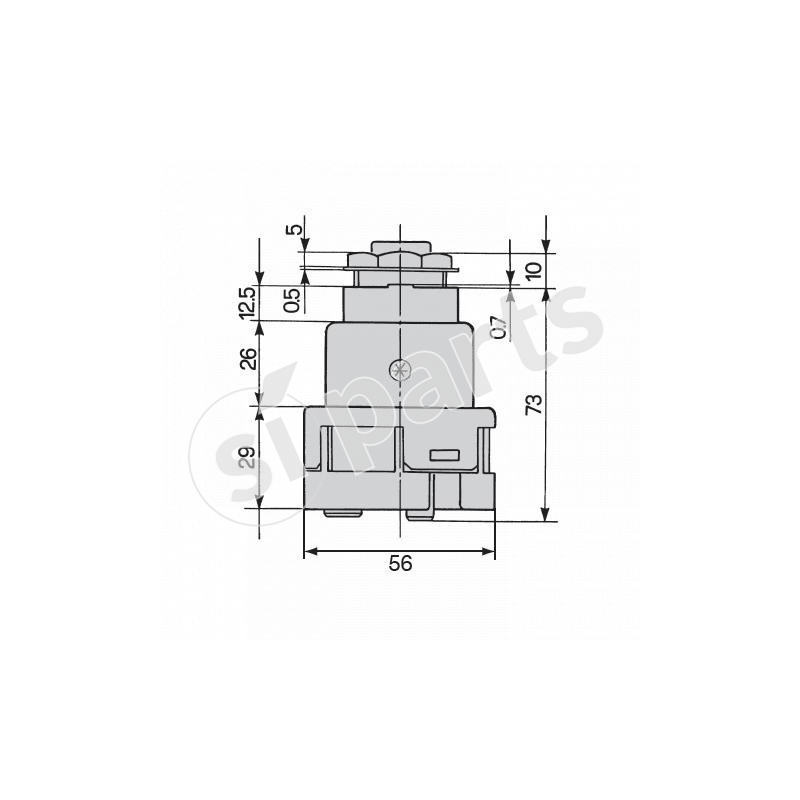

The image shown here is for illustrative purposes only.
START SWICH
Code: 14.157.000.11
Doc. Code: 14-157-000
€70.35
Tax excluded
(85.83 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

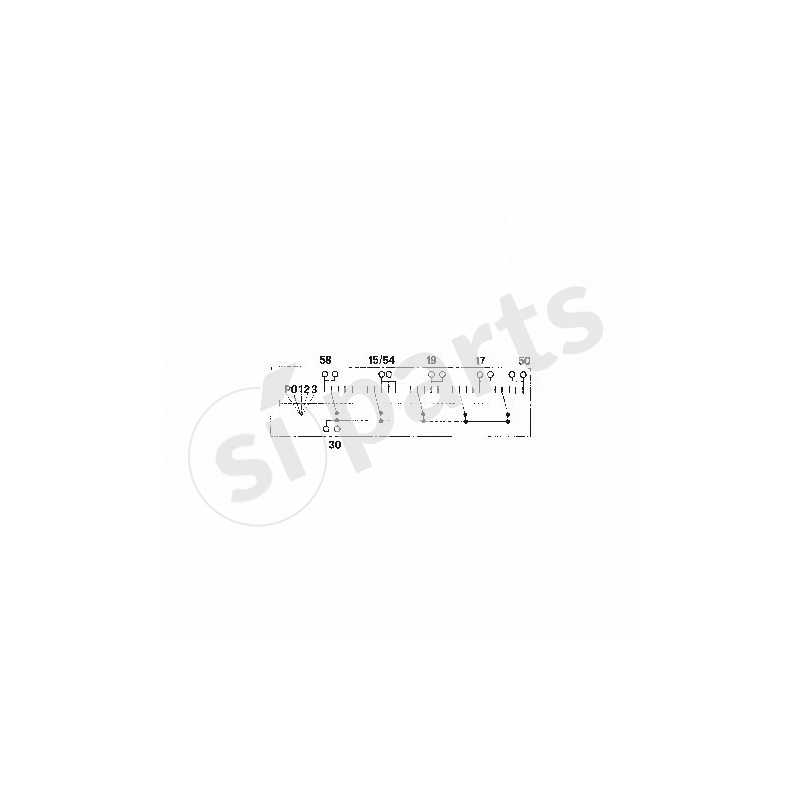

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| p | 30-58 | 8 a | inf. | parking lights |
| 0 | ||||
| 1 | 30-15/54 | 35 a | inf. | gear |
| 2 | 30-15/54 | 35 a | inf. | gear/preheating |
| 2 | 30-19 | 60 a | 2 min. | |
| 3 | 30-15/54 | 35 a | inf. | gear/preheating/start |
| 3 | 30 a-17 | 60 a | 1 min. | |
| 3 | 30-50 | 60 a/18 a | 1 min. |
type contact
break contact mechanism
key removable
only in position p-0
colour
black
housing
acetal resin
temperatura d'impiego °c
-40°c ÷ +85°c
electrical lifes cycles
25000
sealing iec 529
ip54
