The image shown here is for illustrative purposes only.

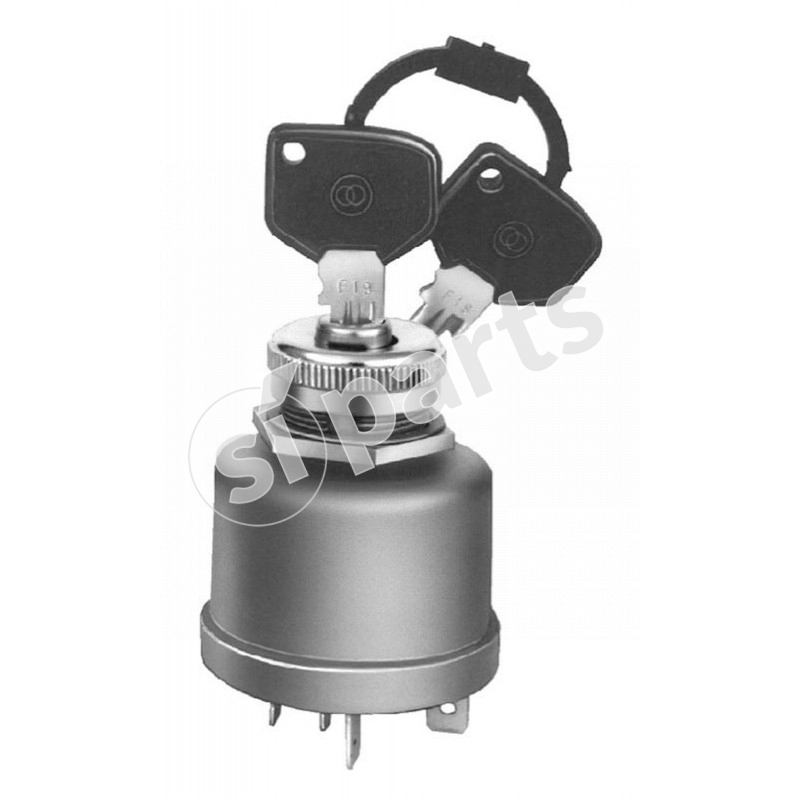

START SWITCH
Code: 14.174.000.11
Doc. Code: 14-174-000
€65.30
Tax excluded
(79.67 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

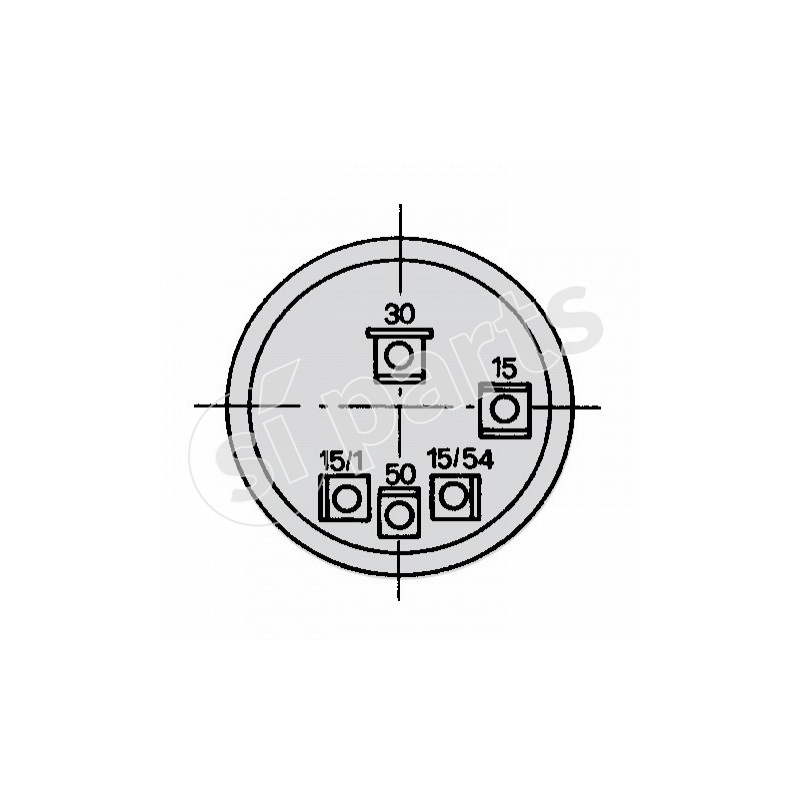

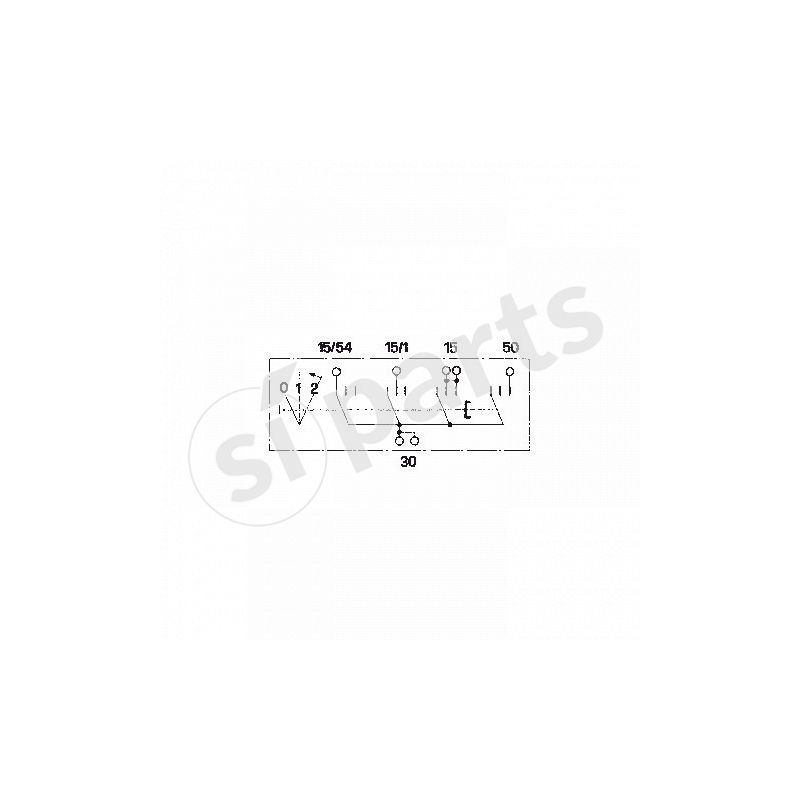

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| 0 | 30-15/54 | 15 a | inf. | auxiliary functions |
| 1 | 30-15/1 | 25 a | inf. | auxiliary functions/gear |
| 1 | 30-15 | 25 a | inf. | |
| 2 | 30-15 | 25 a | inf. | gear/start |
| 2 | 30-50 | 25 a | 1 min. |
key removable
only in position 0
type contact
contact strips
device type
with restart inhibitor
