The image shown here is for illustrative purposes only.

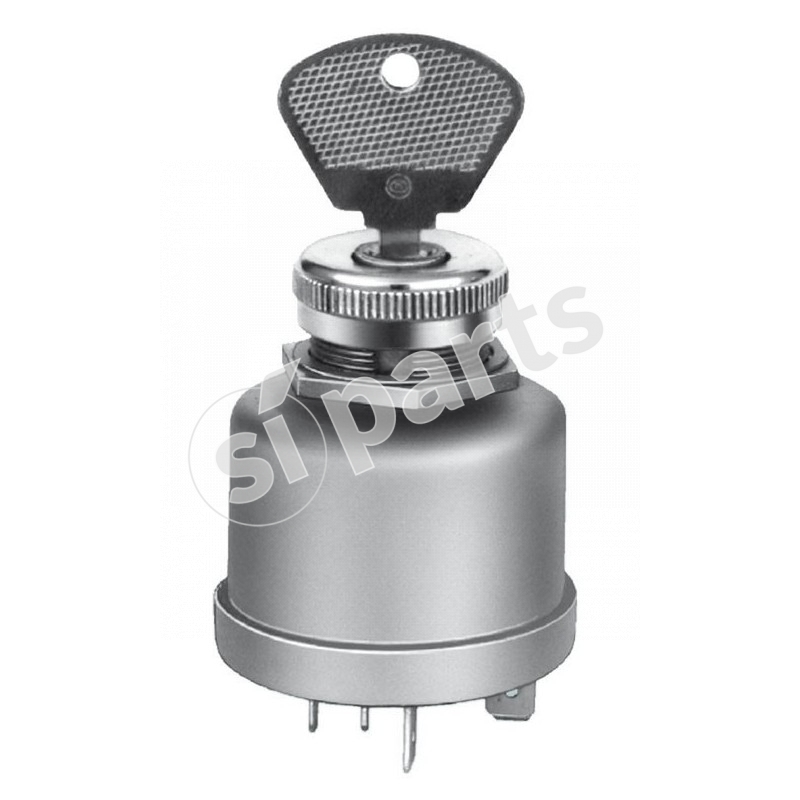

START SWICH
Code: 14.179.000.11
Doc. Code: 14-179-000
€49.00
Tax excluded
(59.78 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

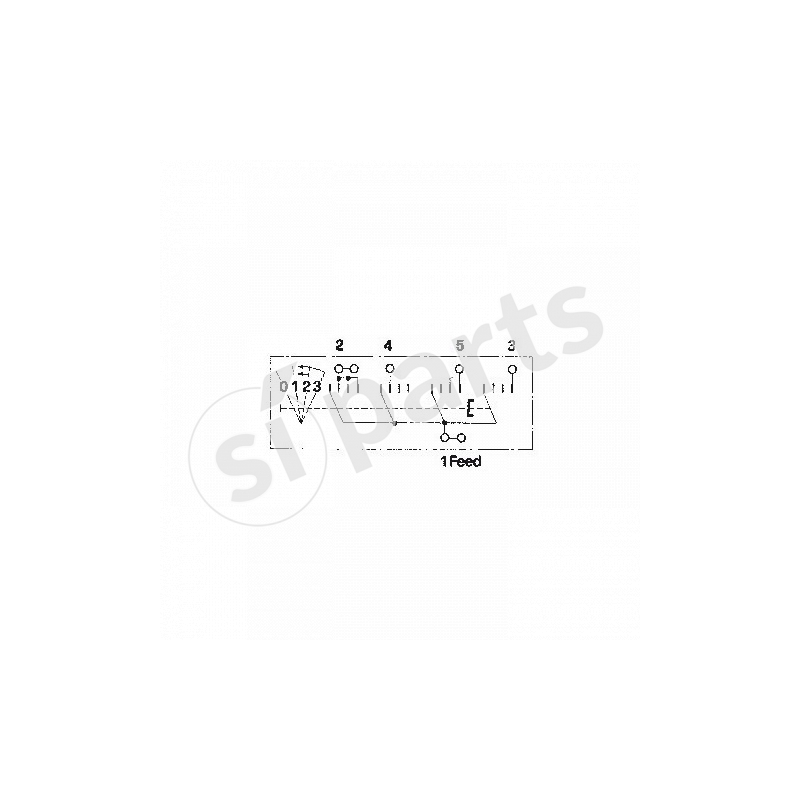

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| 0 | ||||
| 1 | 2-1 | 25 a | inf. | auxiliary functions/alternator |
| 1 | 2-4 | 25 a | inf. | |
| 2 | 2-1 | 25 a | inf. | auxiliary functions/preheating |
| 2 | 2-5 | 20 a | 1 min. | |
| 3 | 2-1 | 25 a | inf. | auxiliary functions/preheating/start |
| 3 | 2-5 | 20 a | 1 min. | |
| 3 | 2-3 | 35 a | 1 min. |
key removable
only in position 0
type contact
contact strips
device type
with restart inhibitor
