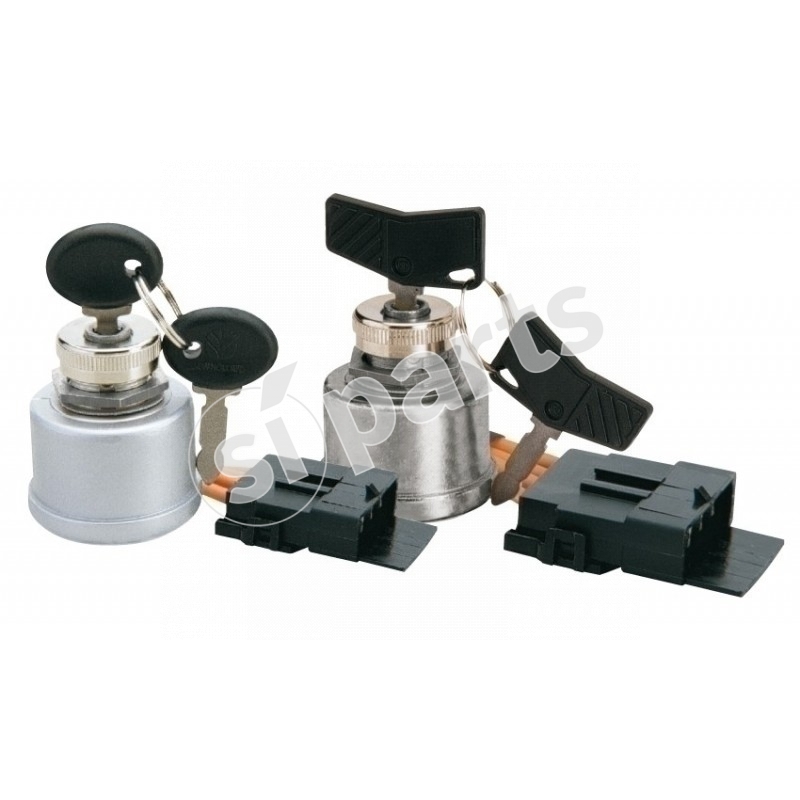

The image shown here is for illustrative purposes only.
START SWICH
Code: 14.194.000.01
Doc. Code: 14-194-000
€53.05
Tax excluded
(64.72 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

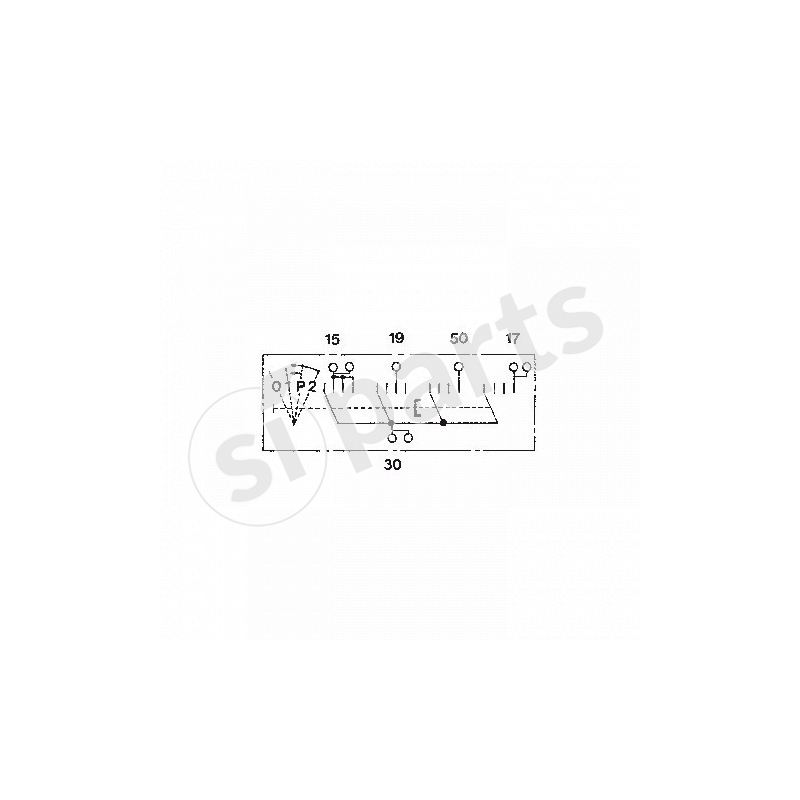

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| 0 | ||||
| 1 | 30-15 | 25 a | inf. | gear |
| p | 30-15 | 25 a | inf. | gear/preheating |
| p | 30-19 | 20 a | 1 min. | |
| 2 | 30-15 | 25 a | inf. | gear/start |
| 2 | 30-17 | 20 a | 1 min. | |
| 2 | 30-50 | 35 a | 1 min. |
key removable
only in position 0
type contact
contact strips
