DYNAMOMETER 04 TX (KG 50000)

Electronic dynamometer composed by an aluminum traction load cell where is placed an electronic with a LCD display 5 digit h=1,7 cm, designed for traction static forces measurement and static loads with radio transmission to the hand receiver instrument model RX DI02 or RX02 PORT with transmission frequencies 868 MHz up to a distance of 50 meters . Functions are provided for: digital zero and weight settings, digital filter selection (greater attenuation of weight oscillations), automatic power-off selection, peak function and Hold function and measuring units selection (kg – N – kN - lb).

INCLUDED IN THE SUPPLY:

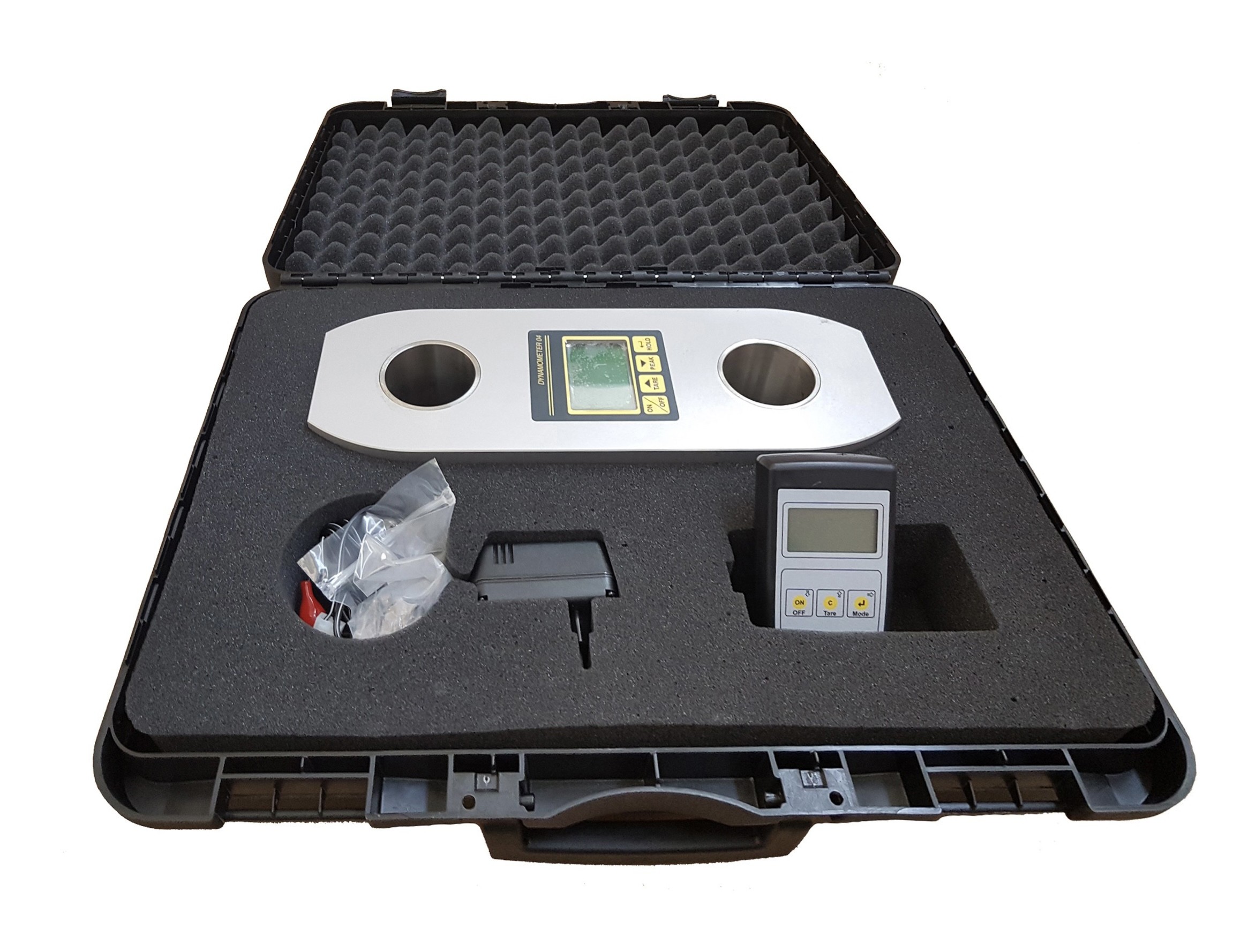

- PVC carrying case.

OPTIONAL
Hand Receivers: for the TX models (with handheld receiver), it is necessary to add the separately priced Palmtop cost compared to the dynamometer, choice between:
- Code 0000027 - RXDI 02 Multichannel Handheld Receiver.
- Code 0000028 - RXDI 02 PORT Multichannel Handheld Receiver.

NOTE
- The crickets are included in the price only for capacities of 2.5t - 3.2t - 5t and 6.3t;
- The ns. laboratory is able to perform calibrations with traceability credited up to 50t;
- For dynamometers with a higher flow rate, if calibration is required up to the nominal capacity, it must be quoted separately and carried out by an external specialized body.

MAIN FEATURES
Tare reset and load recovery
Lock-release of the displayed load
Acquisition of the maximum load achieved
Indication of gross, net and tare weight
Selection of the unit of measurement (kg—> t—> ton—> Lbs—> daN—> kN)
Selection of reading speed
Auto-off enable
Zero and weight calibration
LCD display with 5 digits 17 mm high
NiMh rechargeable battery (100h battery life)
Choice of unit of measure (kg—> t—> ton—> Lbs—> daN—> kN)
Resetting the keyboard tare
Peak measurement function
Overload indication on the display (110% f.s.)
Display speed of the measurement that can be set from the keyboard
