• Original product

DYNAMOMETER 05 M (Kg 10000)

0000007

New Code: 0000007

CONTACT US FOR MORE INFORMATION

€1,100.00

(1100.00 € tax incl.)

Quantity

  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
  • Original articles, guaranteed. Original articles, guaranteed.

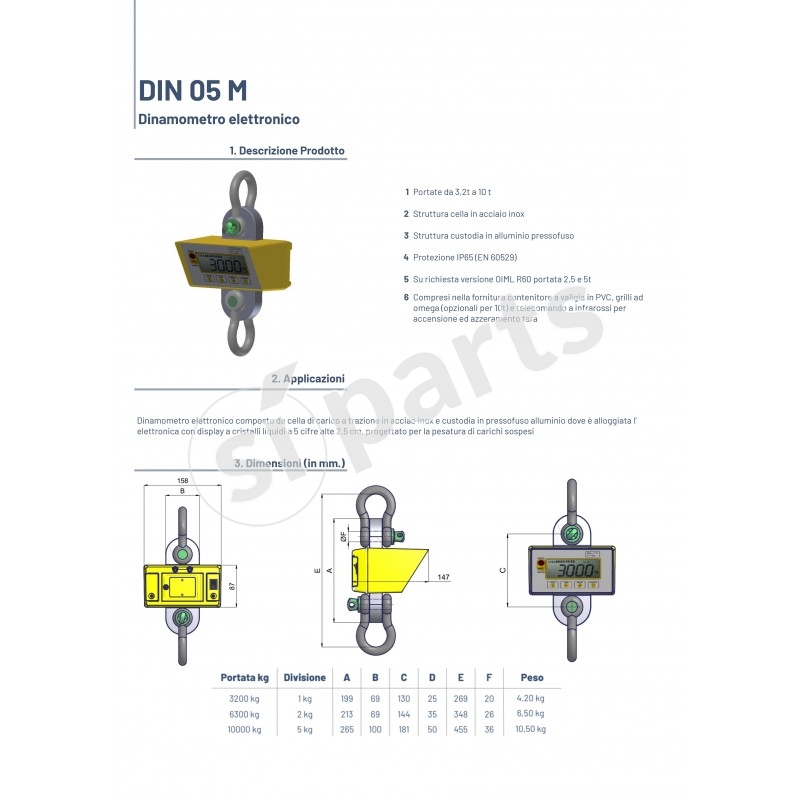

DescriptionsDYNAMOMETER 05 M Kg. 10000
Electronic dynamometer composed by a stainless steel traction load cell and an aluminium housing where is placed an electronic with a liquid crystal display 5 digit h=2,5, designed for weighing suspended loads. Functions are provided for: digital zero and weight settings, digital filter selection (greater attenuation of weight oscillations), automatic power-off selection, peak function and Hold function and measuring units selection (kg – N – kN - lb).

INCLUDED IN THE SUPPLY:
- Infrared remote control for power-on and tare zeroing;
- Suitcase in PVC;
- Grills and omega (optional for 10 tons).

NOTE

- The crickets are included in the price only for capacities of 2.5t - 3.2t - 5t and 6.3t;
- The ns. laboratory is able to perform calibrations with traceability credited up to 50t;
- For dynamometers with a higher flow rate, if calibration is required up to the nominal capacity, it must be quoted separately and carried out by an external specialized body.

APPLICATIONS
CONSTRUCTION
- load cell in stainless steel with die-cast aluminum housing
ADMISSIBLE SAFETY LOAD
- 200% of the nominal capacity
SAFETY AND BREAKING COEFFICIENT
- >5
PROTECTION
- IP65 (EN 60529)
WORKING TEMPERATURE
- -5°C ÷ +55°C
MEASUREMENT ACCURACY
- ± 0,1% of the nominal capacity
SUPPLY
- 3 "AA" type batteries (180 hours autonomy)
INDICATIONS ON THE DISPLAY
- 5 digits, stable weight, autonomy, unit of measurement. Digit size: 25 mm x14 mm
MULTI-CHANNEL RADIO TRANSMISSION
FUNCTIONS
- Tare reset and keyboard weight calibration
- Selectable digital weight stabilization filters
- Automatic switch-off selectable from the keyboard
- Storage of peak (peak) and displayed weight (hold)
- Measurement unit selectable from the keyboard (kg-N-kN-lb)
APPLICAZIONI
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
0000007
