CIAM PRODUCTS- Original product
dynamometer 05 txl (kg 600)
DIN.05.TXL.600
Code: DIN.05.TXL.600
New Code: DIN.05.TXL.600
CONTACT US FOR MORE INFORMATION

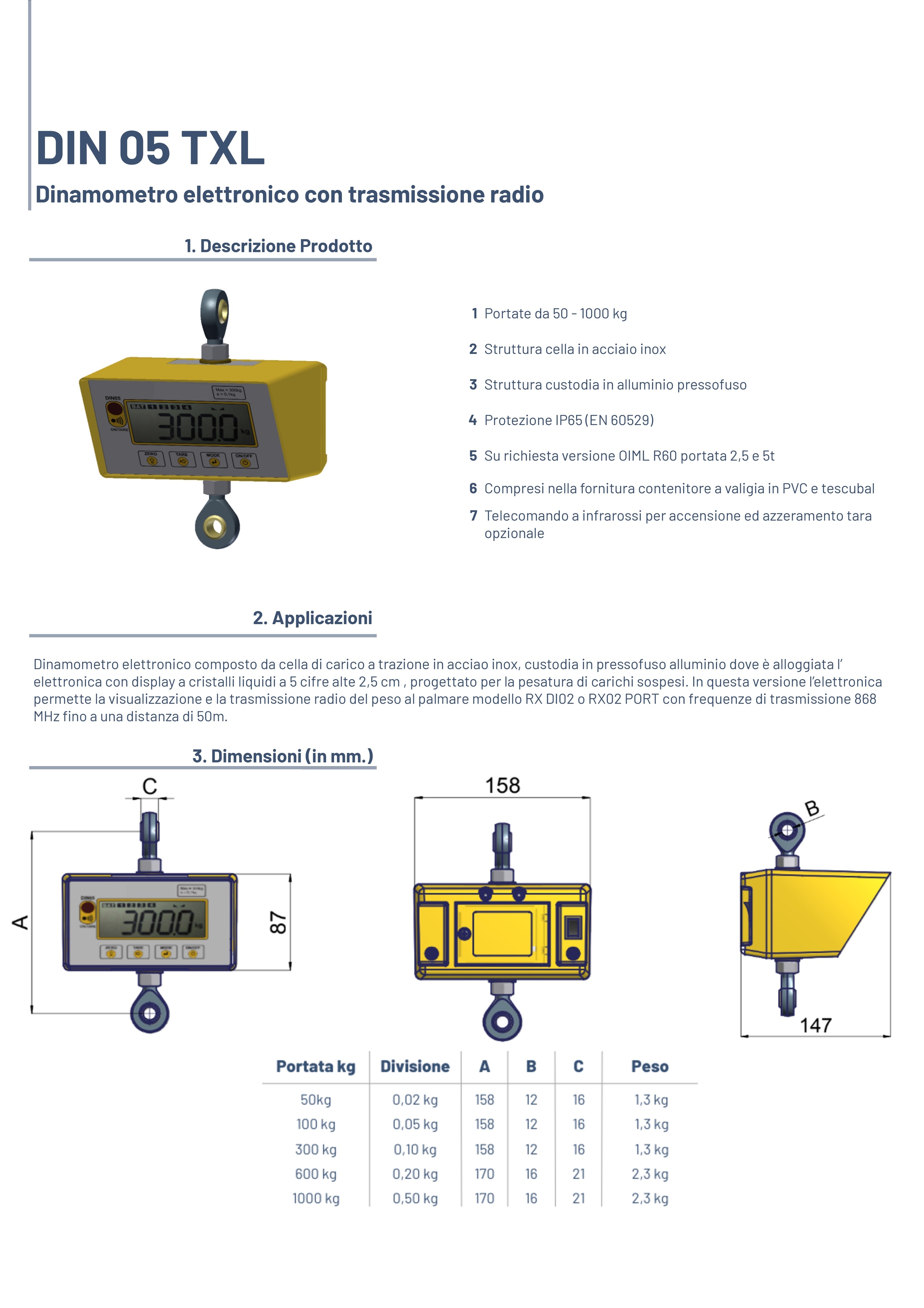

descriptionsdynamometer 05 txl kg. 600

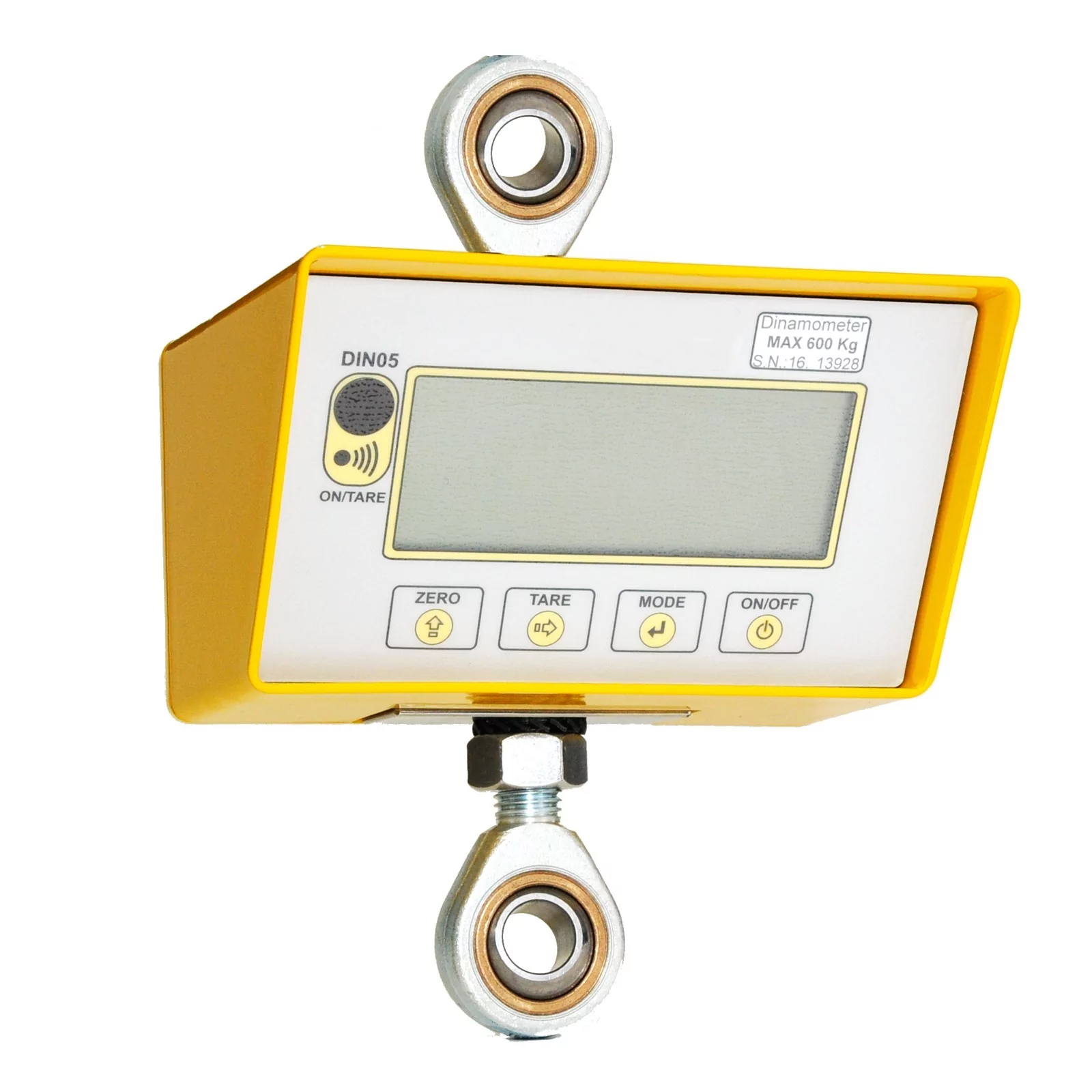

electronic dynamometer composed by a stainless steel traction load cell and an aluminium housing where is placed an electronic with a liquid crystal display 5 digit h=2,5, designed for weighing suspended loads with radio transmission to the hand receiver instrument model rx di02 or rx02 port with transmission frequencies 868 mhz up to a distance of 50 meters . functions are provided for: digital zero and weight settings, digital filter selection (greater attenuation of weight oscillations), automatic power-off selection, peak function and hold function and measuring units selection (kg – n – kn - lb).
included in the supply:
- pvc carrying case.
optional
hand receivers: for the tx models (with handheld receiver), it is necessary to add the separately priced palmtop cost compared to the dynamometer, choice between:
- code 0000027 - rxdi 02 multichannel handheld receiver.
- code 0000028 - rxdi 02 port multichannel handheld receiver.
note
- the crickets are included in the price only for capacities of 2.5t - 3.2t - 5t and 6.3t;
- the ns. laboratory is able to perform calibrations with traceability credited up to 50t;
- for dynamometers with a higher flow rate, if calibration is required up to the nominal capacity, it must be quoted separately and carried out by an external specialized body.
included in the supply:
- pvc carrying case.
optional
hand receivers: for the tx models (with handheld receiver), it is necessary to add the separately priced palmtop cost compared to the dynamometer, choice between:
- code 0000027 - rxdi 02 multichannel handheld receiver.
- code 0000028 - rxdi 02 port multichannel handheld receiver.
note
- the crickets are included in the price only for capacities of 2.5t - 3.2t - 5t and 6.3t;
- the ns. laboratory is able to perform calibrations with traceability credited up to 50t;
- for dynamometers with a higher flow rate, if calibration is required up to the nominal capacity, it must be quoted separately and carried out by an external specialized body.

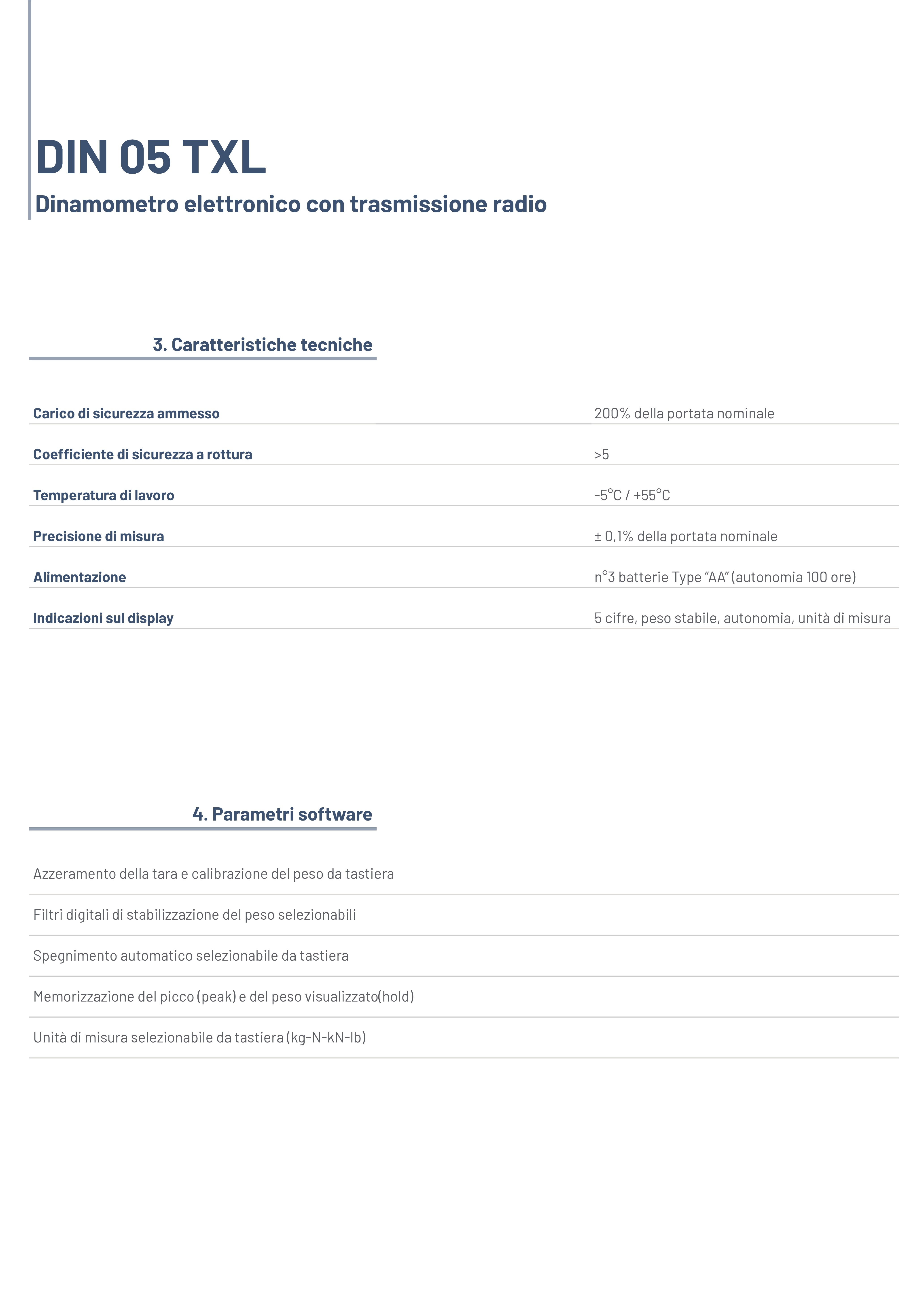

applications
construction
- load cell in stainless steel (600-1000kg) and aluminum (50-100-300kg) with die-cast aluminum housing
admissible safety load
- 200% of the nominal capacity
safety and breaking coefficient
- >5
protection
- ip65 (en 60529)
working temperature
- -5°c ÷ +55°c
measurement accuracy
- ± 0,1% of the nominal capacity
supply
- 3 "aa" type batteries (180 hours autonomy)
indications on the display
- 5 digits, stable weight, autonomy, unit of measurement. digit size: 25 mm x14 mm
multi-channel radio transmission
functions
functions
- tare reset and keyboard weight calibration
- selectable digital weight stabilization filters
- automatic switch-off selectable from the keyboard
- storage of peak (peak) and displayed weight (hold)
- measurement unit selectable from the keyboard (kg-n-kn-lb)
- can be combined with rxdi02 or rx02-port receiver
- selectable digital weight stabilization filters
- automatic switch-off selectable from the keyboard
- storage of peak (peak) and displayed weight (hold)
- measurement unit selectable from the keyboard (kg-n-kn-lb)
- can be combined with rxdi02 or rx02-port receiver
