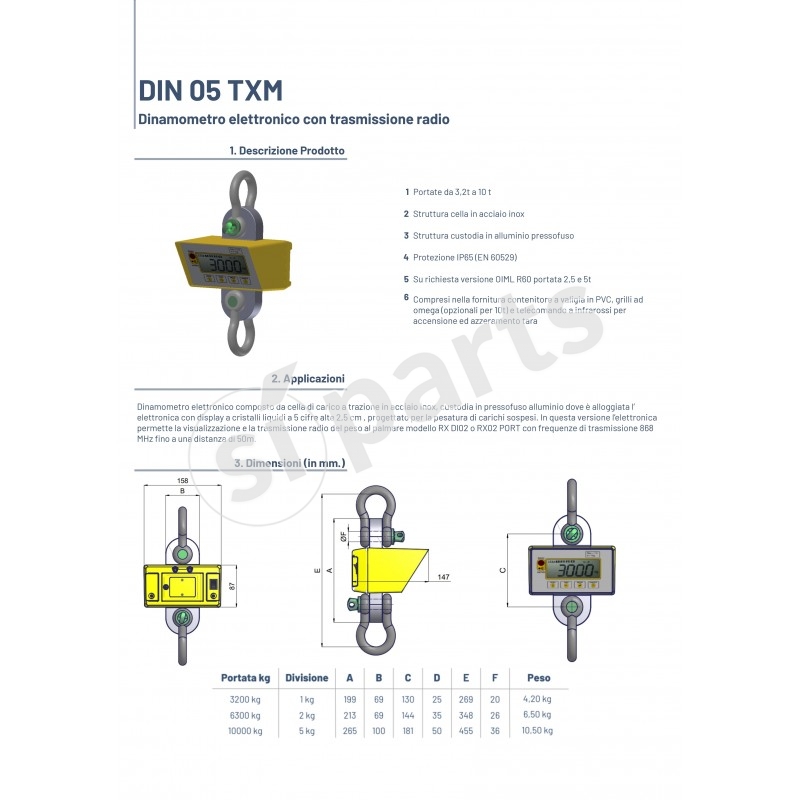

Electronic dynamometer composed by a stainless steel traction load cell and an aluminium housing where is placed an electronic with a liquid crystal display 5 digit h=2,5, designed for weighing suspended loads with radio transmission to the hand receiver instrument model RX DI02 or RX02 PORT with transmission frequencies 868 MHz up to a distance of 50 meters . Functions are provided for: digital zero and weight settings, digital filter selection (greater attenuation of weight oscillations), automatic power-off selection, peak function and Hold function and measuring units selection (kg – N – kN - lb).
INCLUDED IN THE SUPPLY: - Infrared remote control for power-on and tare zeroing; - Suitcase in PVC; - Grills and omega (optional for 10 tons).
OPTIONAL Hand Receivers: for the TX models (with handheld receiver), it is necessary to add the separately priced Palmtop cost compared to the dynamometer, choice between: - Code 0000027 - RXDI 02 Multichannel Handheld Receiver. - Code 0000028 - RXDI 02 PORT Multichannel Handheld Receiver.
NOTE - The crickets are included in the price only for capacities of 2.5t - 3.2t - 5t and 6.3t; - The ns. laboratory is able to perform calibrations with traceability credited up to 50t; - For dynamometers with a higher flow rate, if calibration is required up to the nominal capacity, it must be quoted separately and carried out by an external specialized body.
APPLICATIONS
CONSTRUCTION
- load cell in stainless steel with die-cast aluminum housing

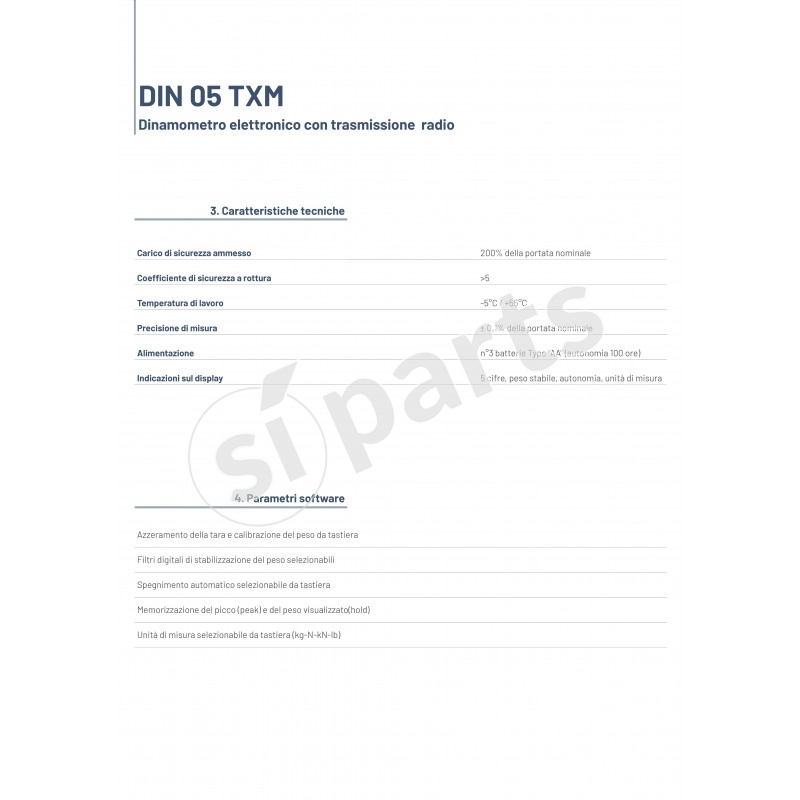

ADMISSIBLE SAFETY LOAD
- 200% of the nominal capacity
SAFETY AND BREAKING COEFFICIENT
- >5
PROTECTION
- IP65 (EN 60529)
WORKING TEMPERATURE
- -5°C ÷ +55°C
MEASUREMENT ACCURACY
- ± 0,1% of the nominal capacity
SUPPLY
- 3 "AA" type batteries (100 hours autonomy)
INDICATIONS ON THE DISPLAY
- 5 digits, stable weight, autonomy, unit of measurement. Digit size: 25 mm x14 mm
MULTI-CHANNEL RADIO TRANSMISSION FUNCTIONS
- Tare reset and keyboard weight calibration - Selectable digital weight stabilization filters - Automatic switch-off selectable from the keyboard - Storage of peak (peak) and displayed weight (hold) - Measurement unit selectable from the keyboard (kg-N-kN-lb) - Can be combined with RxDi02 or Rx02-Port receiver
APPLICAZIONI
Components for access platforms telescopic - cranes
