The image shown here is for illustrative purposes only.
FUSE BOX + RELAY
Code: 24.0266.0200.01
Doc. Code: 24-0266-0200-01
€41.30
Tax excluded
(50.39 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

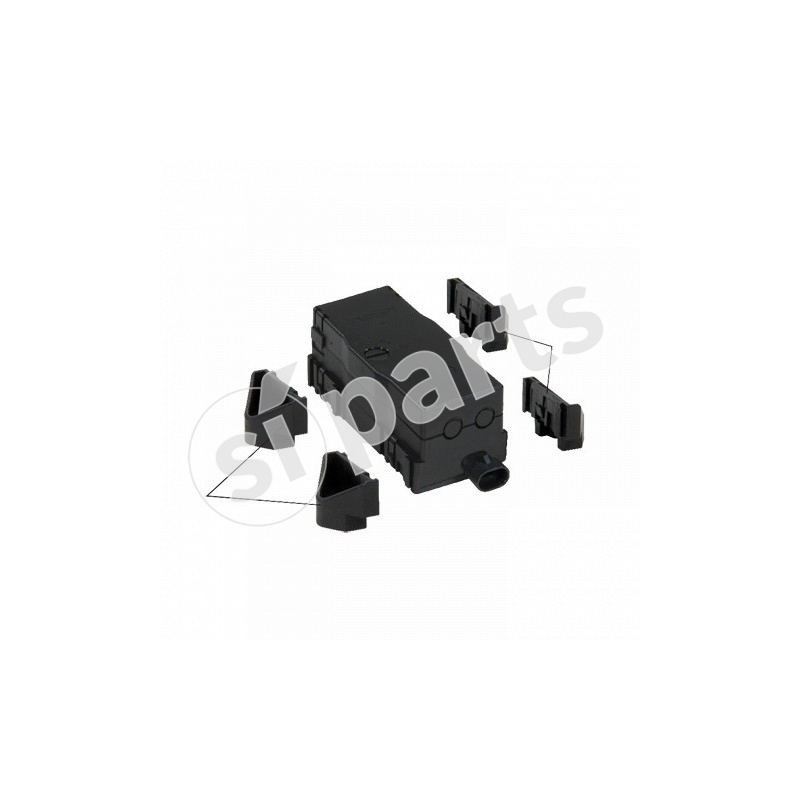

base module with:
- 4 brackets
- 2 connection tab
- nuts

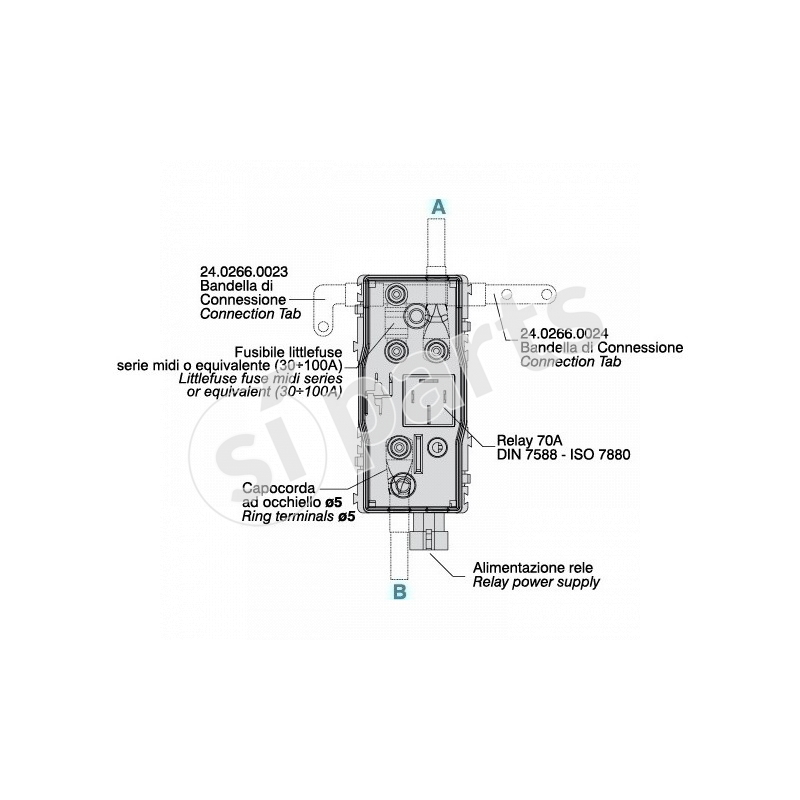

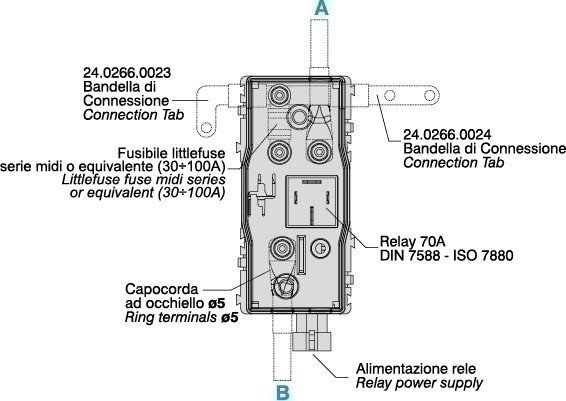

the relay module can be used in combined version with the base
module or independently; in the fi rst power supply is derived
from the base module through the connection tab, while in the second
power is supplied by an external cable (a). for both versions the
output (b) is driven by a 70a relay (supplied by a 2-way amp superseal
connector) and protected by a 30-100a fuse ( series or equivalent).
- 4 brackets
- 2 connection tab
- nuts
the relay module can be used in combined version with the base
module or independently; in the fi rst power supply is derived
from the base module through the connection tab, while in the second
power is supplied by an external cable (a). for both versions the
output (b) is driven by a 70a relay (supplied by a 2-way amp superseal
connector) and protected by a 30-100a fuse ( series or equivalent).
module
modulo porta relè e fusibili
housing material
pbt + 15% gf
operating temperature
- 40°c ÷ +120°c
sealing
ip30
operating voltage
32v max
