CIAM PRODUCTS- Original product
FUSE & RELAY
Description

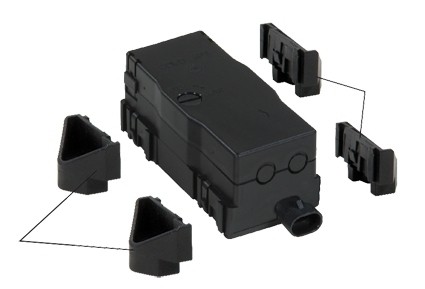

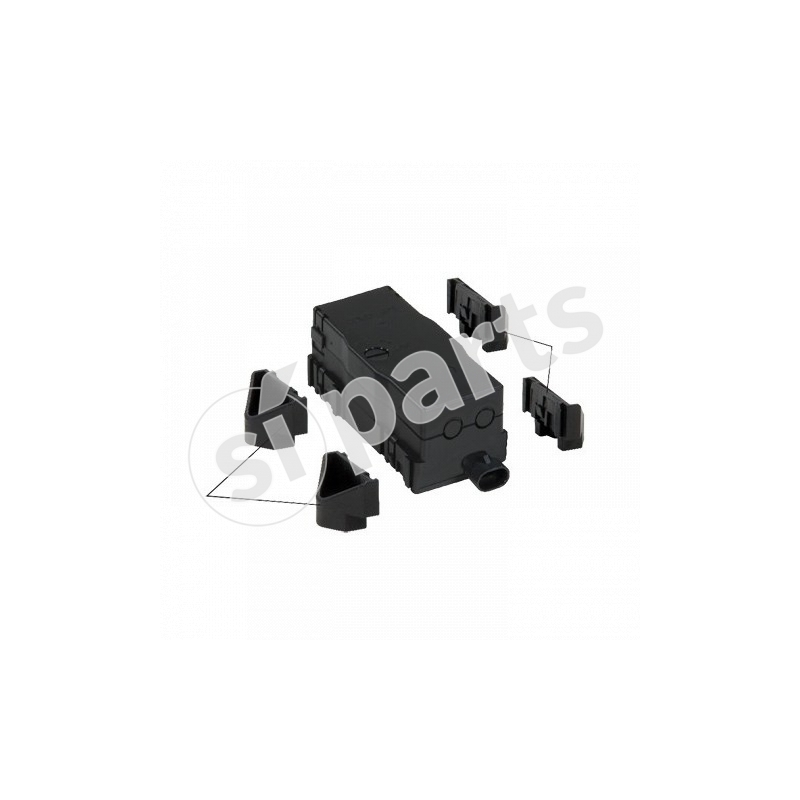

Base module with:
- 2 connection tab
- nuts

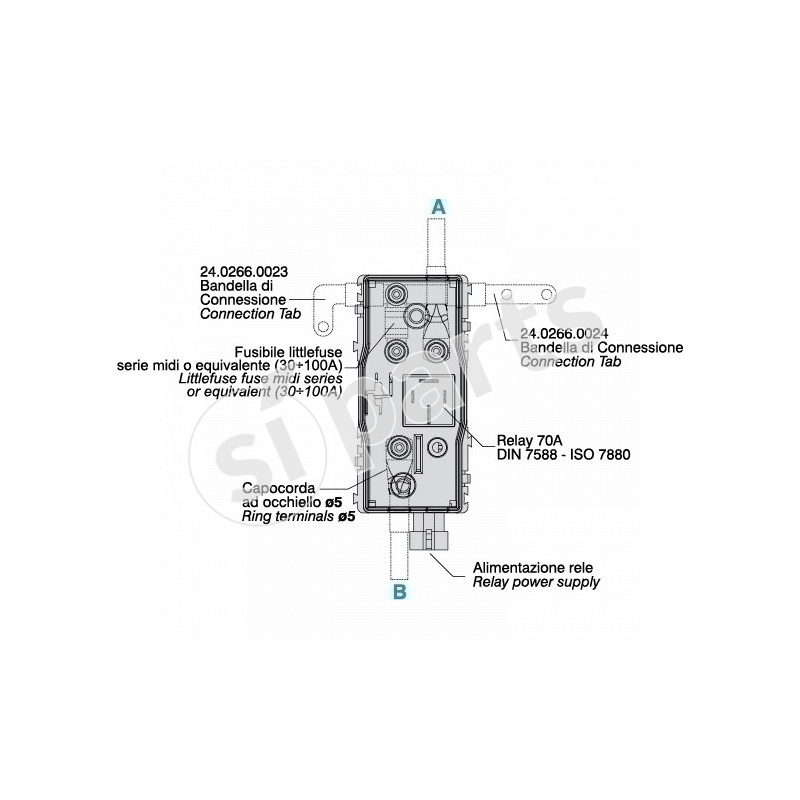

The relay module can be used in combined version with the base
module or independently; in the fi rst case power supply is derived
from the base module through the connection tab, while in the second
case power is supplied by an external cable (A). For both versions the
output (B) is driven by a 70A relay (supplied by a 2-way AMP Superseal
connector) and protected by a 30-100A fuse (Midi series or equivalent).
- 2 connection tab
- nuts
The relay module can be used in combined version with the base
module or independently; in the fi rst case power supply is derived
from the base module through the connection tab, while in the second
case power is supplied by an external cable (A). For both versions the
output (B) is driven by a 70A relay (supplied by a 2-way AMP Superseal
connector) and protected by a 30-100A fuse (Midi series or equivalent).
MODULE
MODULO PORTA RELÈ E FUSIBILI
HOUSING MATERIAL
PBT + 15% GF
OPERATING TEMPERATURE
- 40°C ÷ +120°C
SEALING
IP30
OPERATING VOLTAGE
32V max
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027871
Code: 24.0266.0250.02
Doc. Code: 24-0266-0250-02
Pack 40 pieces.
