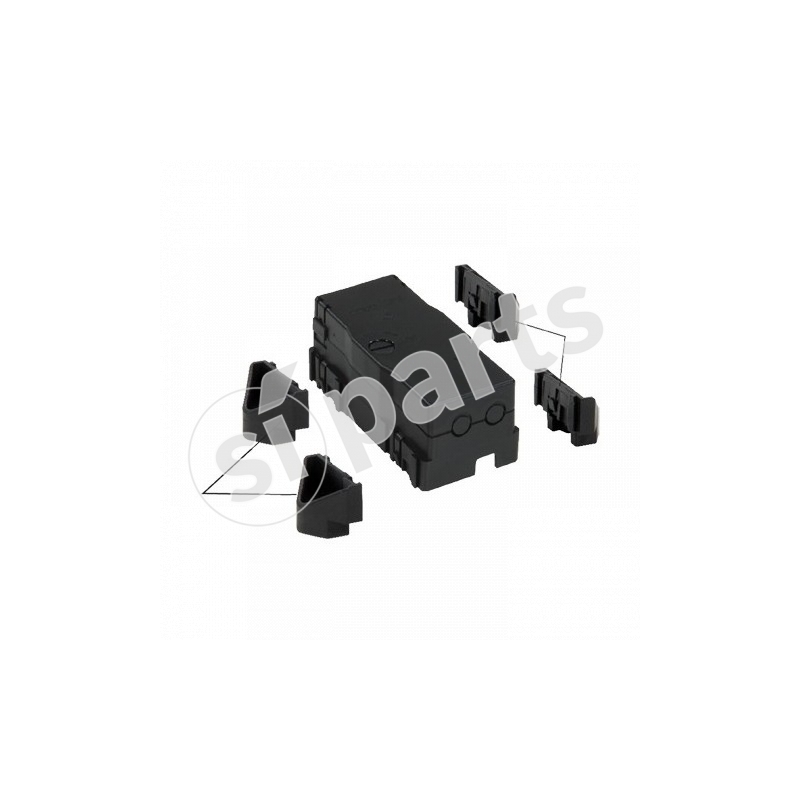

FUSE BOX
Code: 24.0266.0300.01
Doc. Code: 24-0266-0300-01
€26.55
Tax excluded
(32.39 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
base module with:
- 4 brackets
- connection tab
- nuts

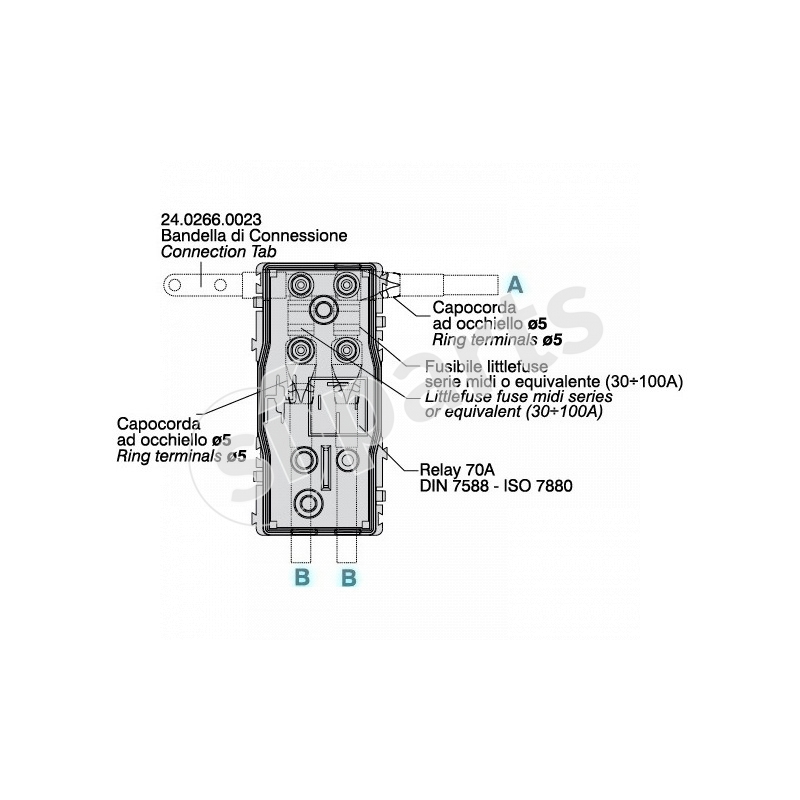

the double fuse module can be used in combined version with the base
module or independently; in the fi rst power supply is derived from
the base module through the connection tab, while in the second
power is supplied by an external cable (a). for both versions the outputs
(b) are protected by a 30 -100a fuse ( series or equivalent).
- 4 brackets
- connection tab
- nuts
the double fuse module can be used in combined version with the base
module or independently; in the fi rst power supply is derived from
the base module through the connection tab, while in the second
power is supplied by an external cable (a). for both versions the outputs
(b) are protected by a 30 -100a fuse ( series or equivalent).
module
double fuse module
housing material
pbt + 15% gf
operating temperature
- 40°c ÷ +120°c
sealing
ip30
operating voltage
32v max
