CIAM PRODUCTS- Original product
Description

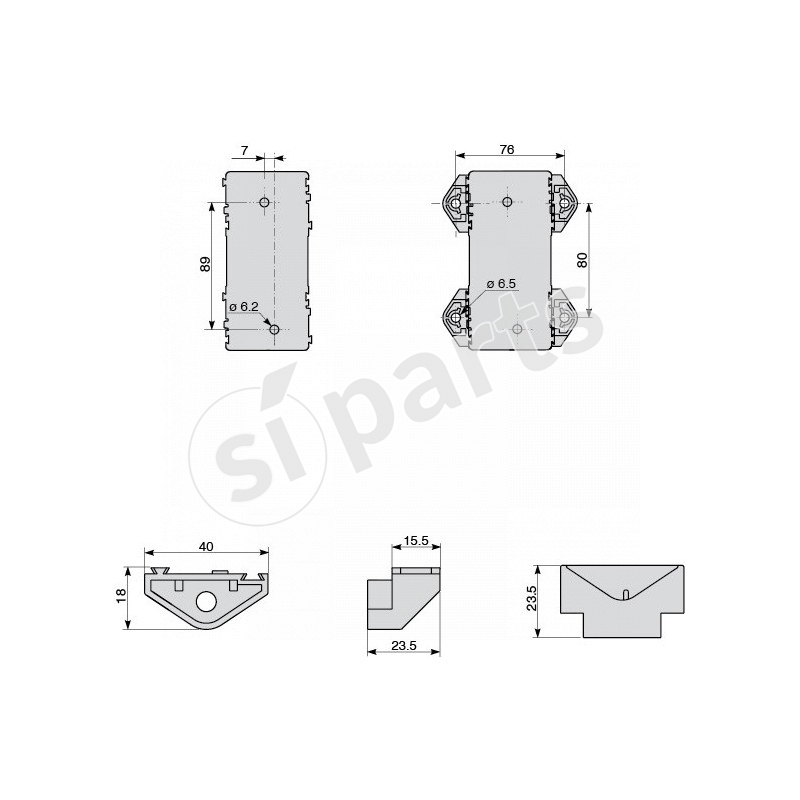

Base module with:
- 4 brackets
- connection tab
- nuts

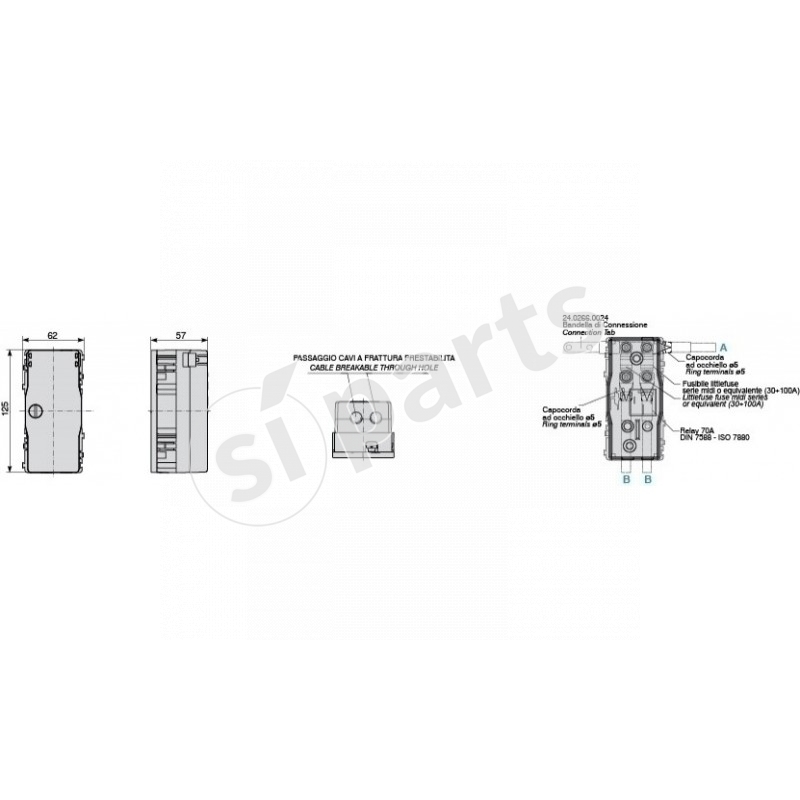

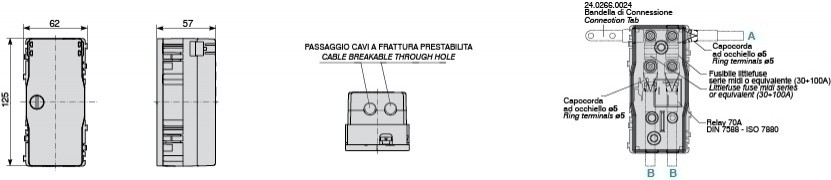

The double fuse module can be used in combined version with the base
module or independently; in the fi rst case power supply is derived from
the base module through the connection tab, while in the second case
power is supplied by an external cable (A). For both versions the outputs
(B) are protected by a 30 -100A fuse (Midi series or equivalent).
- 4 brackets
- connection tab
- nuts
The double fuse module can be used in combined version with the base
module or independently; in the fi rst case power supply is derived from
the base module through the connection tab, while in the second case
power is supplied by an external cable (A). For both versions the outputs
(B) are protected by a 30 -100A fuse (Midi series or equivalent).
MODULE

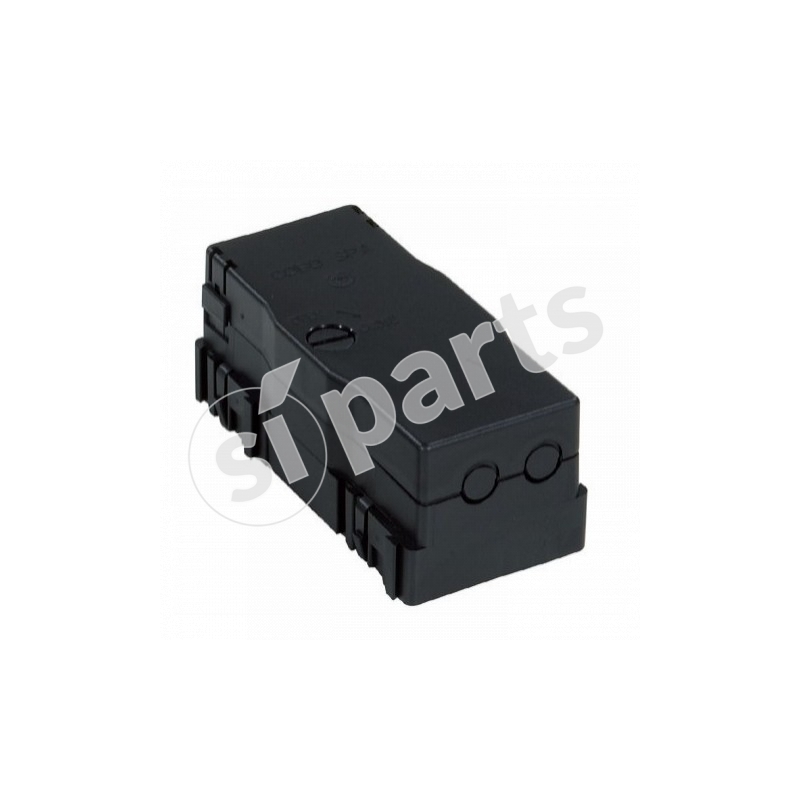

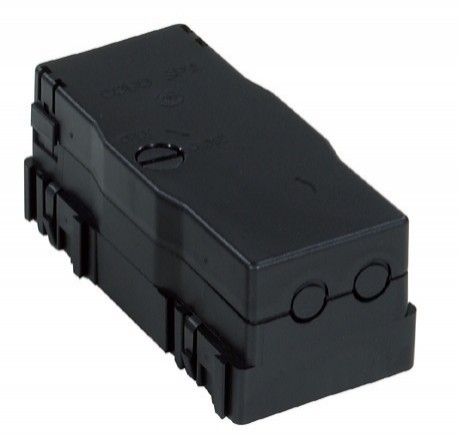

DOUBLE FUSE MODULE WITH BASE COVERING
HOUSING MATERIAL
PBT + 15% GF
OPERATING TEMPERATURE
- 40°C ÷ +120°C
SEALING
IP30
OPERATING VOLTAGE
32V max
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027877
Code: 24.0266.0400.01
Doc. Code: 24-0266-0400-01
