HI POWER NODE : HIGH POWER ON/OFF MODULES
description power node is a family of programmable controllers with high power outputs for applications on mobile machines.
the outputs (up to 35a) allow direct actuators activation without relays or fuses, relays or fuses, simplifying a lot machine cabling.
inputs and outputs are protected with self-diagnosis, wide configurability and possibility also to activate electric motors.
programmable in c language or iec 61131, using vt3 software development tool.
available versions
- hi power node
controller with high-power outputs for cabin applications or machine system.
- power node
controller with many high-power inputs and outputs.
applications
- fans and compressors control for air conditioning
- s control and diagnostics
- bilge pumps activation
- on/off electric motors activation
the outputs (up to 35a) allow direct actuators activation without relays or fuses, relays or fuses, simplifying a lot machine cabling.
inputs and outputs are protected with self-diagnosis, wide configurability and possibility also to activate electric motors.
programmable in c language or iec 61131, using vt3 software development tool.
available versions
- hi power node
controller with high-power outputs for cabin applications or machine system.
- power node
controller with many high-power inputs and outputs.
applications
- fans and compressors control for air conditioning
- s control and diagnostics
- bilge pumps activation
- on/off electric motors activation
| inputsoutputs | configuration | nr. i/o |
|---|---|---|
| multifunctional inputs | digital high side/low side | 9 |
| inputs | digital high side | 0 |
| inputs | digital low side | 0 |
| outputs | on/off high side 3 a, diagnostic and protected | 0 |
| outputs | on/off high side 5 a, diagnostic and protected | 15 |
| outputs | on/off high side 8 a, diagnostic and protected | 2 |
| outputs | on/off high side 25 a, diagnostic and protected | 1 |
| outputs | on/off high side 35 a, diagnostic and protected | 1 |
| outputs | on/off low side 8 a, diagnostic and protected (for | 0 |
microcontroller cpu
freescale 16 bit, 40 mhz
flash memory
256 kb
ram memory
12 kb
eeprom memory
64 kb
real time clock rtc
no
programming mode
master o slave mode
programming language
c language
software
iec61131 vt3 development tool
power supply voltage v
8 - 32v full operational, suitable for machine battery direct connection
cold ranking
5v
idle current consumption
2 ma stop mode, 12 ma sleep mode
load dump protection
iso7637-2
can bus
1 can-bus, 2.0b high speed, 11 or 29 bit identifier ,iso 11898-2 ompliant
1 can-bus, 2.0b fault tolerant, up to 125 kbit/s
1 can-bus, 2.0b fault tolerant, up to 125 kbit/s
storage temperature
from - 40 °c to +85 °c from - 40 °f to +185 °f
operating temperature
from - 40°c a +70°c from - 40°f to 158 °f
sealing iec 529
ip67
housing
nylon sealed with thermo conductive voratron resin, 4 led for monitoring status.
connector
2 x amp 35p bianco, nero, 1x amp 8p
goretex valve
no

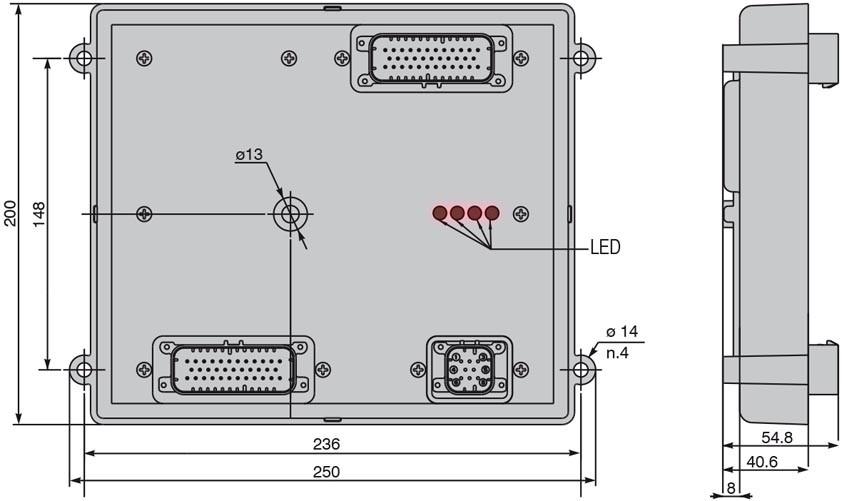

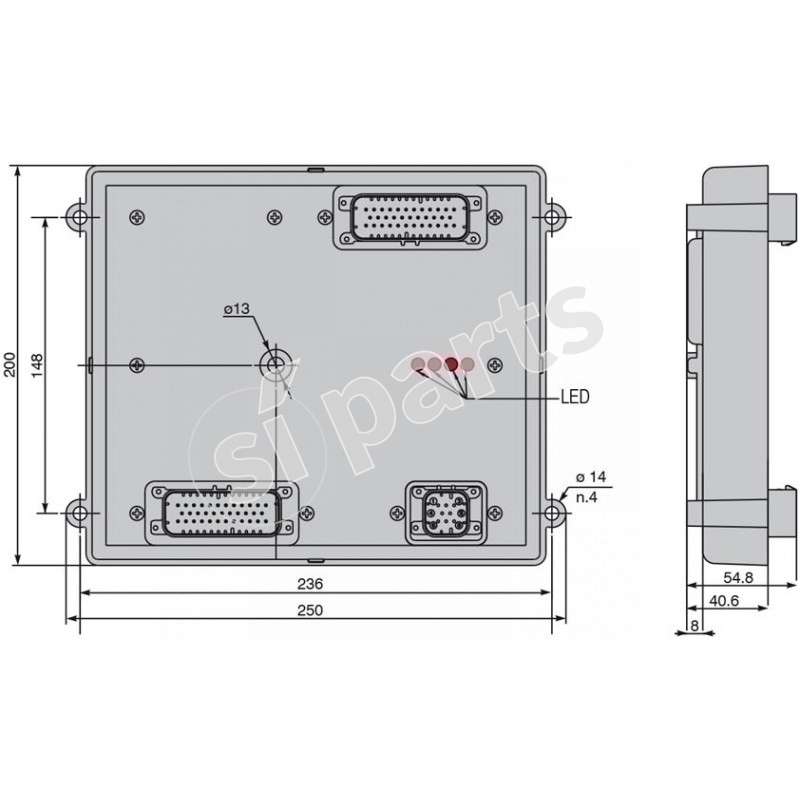

dimensions mm
250 x 200 x 54.8 mm
weight
1700 g
installation
horizontal/vertical, 4 screws
emc standards by 89/336 ce ce mark-emc emissioni/immunità
en 61000 - 6 - 3 2006
en 55022 rf emission
en 61000 - 6 - 2 2005
en 61000 - 4 - 2 electrostatic discharge
en 61000 - 4 - 3 radio frequency
en 61000 - 4 - 4 burst
en 61000 - 4 - 6 conducted disturbance
en 55022 rf emission
en 61000 - 6 - 2 2005
en 61000 - 4 - 2 electrostatic discharge
en 61000 - 4 - 3 radio frequency
en 61000 - 4 - 4 burst
en 61000 - 4 - 6 conducted disturbance
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
43.90.0200a0.01
