IO-CAB : SMALL SIZE GENERIC CONTROLLER WITH HIGH POWER OUTPUTS

COBO (Original product)
1032949

Code: 43.90.0000A0.02

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

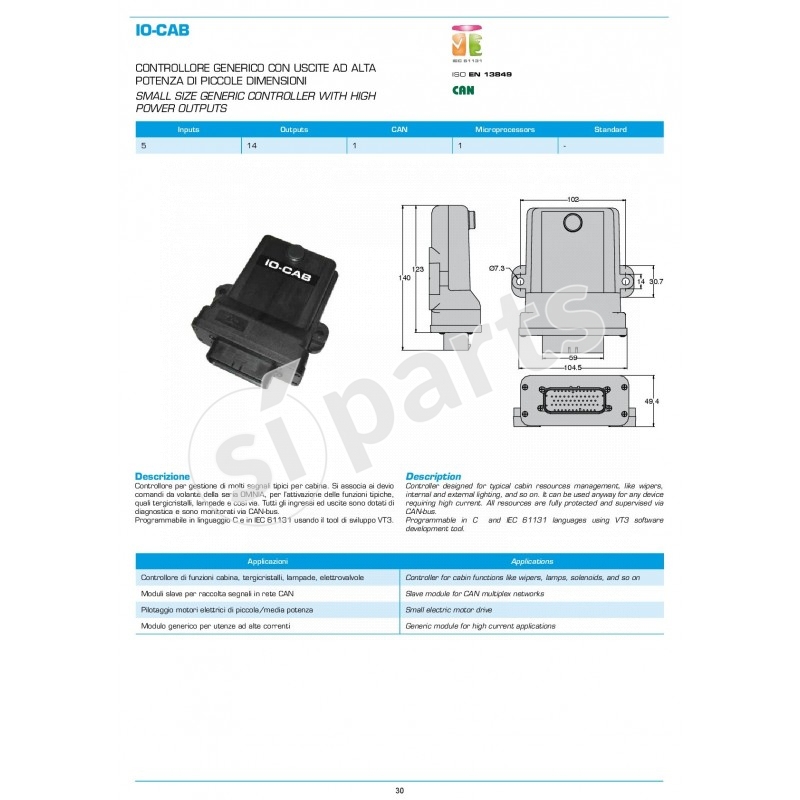

Description Controller designed for typical cabin resources management, like wipers, internal and external lighting, and so on. It can be used anyway for any device requiring high current. All resources are fully protected and supervised via CAN-bus.
Programmable in C and IEC 61131 languages using VT3 software development tool.

APPLICATIONS
- Controller for cabin functions like wipers, lamps, solenoids, and so on
- Slave module for CAN multiplex networks
- Small electric motor drive
- Generic module for high current applications

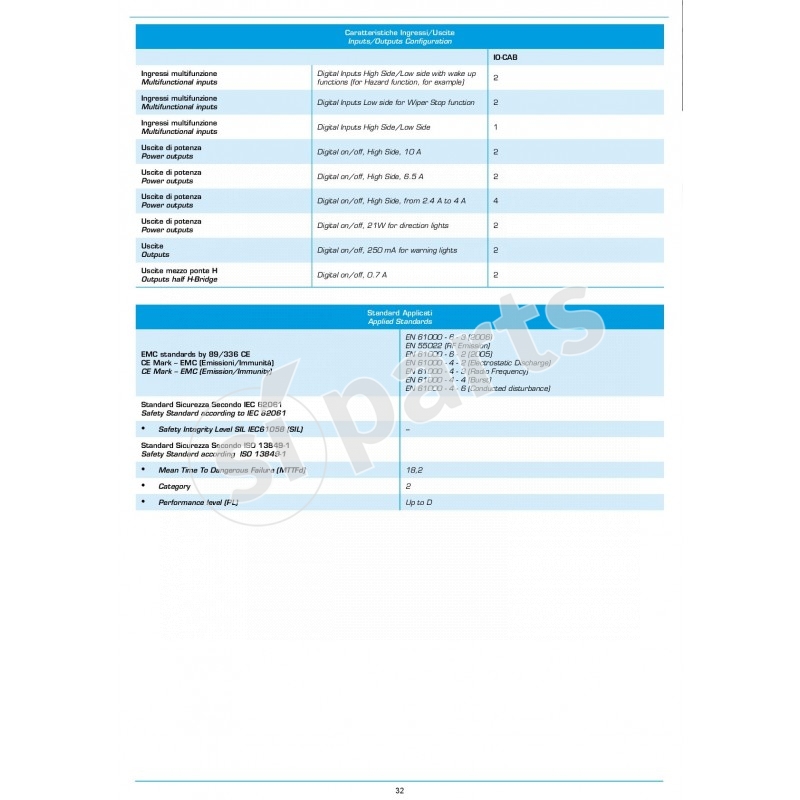

INPUTSOUTPUTSCONFIGURATIONNR. I/O
MULTIFUNCTIONAL INPUTS Digital Inputs High Side/Low side with wake up fun 2
MULTIFUNCTIONAL INPUTS Digital Inputs Low side for Wiper Stop function 2
MULTIFUNCTIONAL INPUTS Digital Inputs High Side/Low Side 1
POWER OUTPUT Digital on/off, High Side, 10 A 2
POWER OUTPUT Digital on/off, High Side, 6.5 A 2
POWER OUTPUT Digital on/off, High Side, from 2.4 A to 4 A 4
POWER OUTPUT Digital on/off, 21W for direction lights 2
OUTPUTS Digital on/off, 250 mA for warning lights 2
OUTPUTS HALF H-BRIDGE Digital on/off, 0.7 A 2

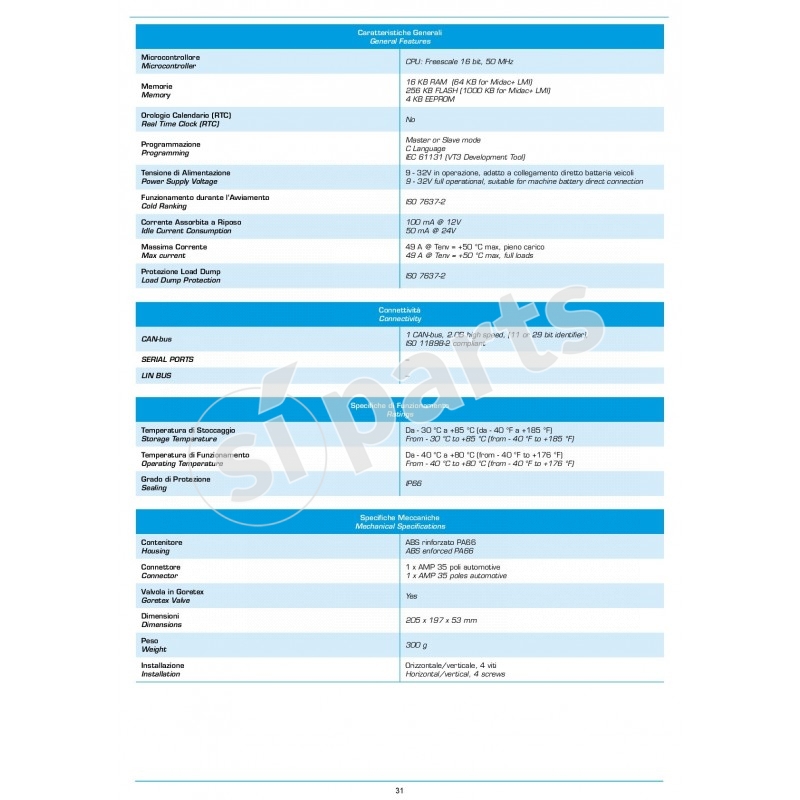

MICROCONTROLLER CPU
Freescale 16 bit, 50 MHz
RAM MEMORY
12 KB
FLASH MEMORY
256 KB 1000 KB for Midac+ LMI
EEPROM MEMORY
4 KB EEPROM
REAL TIME CLOCK RTC
NO
PROGRAMMING MODE
Master or Slave mode
PROGRAMMING LANGUAGE
C Language
SOFTWARE
IEC 61131 VT3 Development Tool
POWER SUPPLY VOLTAGE V
9 - 32V full operational, suitable for machine battery direct connection
COLD RANKING
ISO 7637-2
100 mA @ 12V - 50 mA @ 24V
LOAD DUMP PROTECTION
ISO 7637-2
CAN BUS
1 CAN-bus, 2.0B high speed, 11 or 29 bit identifier, ISO 11898-2 compliant
STORAGE TEMPERATURE
From - 30 °C to +85 °C from - 40 °F to +185 °F
OPERATING TEMPERATURE
From - 40 °C to +80 °C from - 40 °F to +176 °F
SEALING IEC 529
IP66
HOUSING
ABS ENFORCED PA66
CONNECTOR
1 X AMP 35 POLES AUTOMOTIVE
GORETEX VALVE
YES

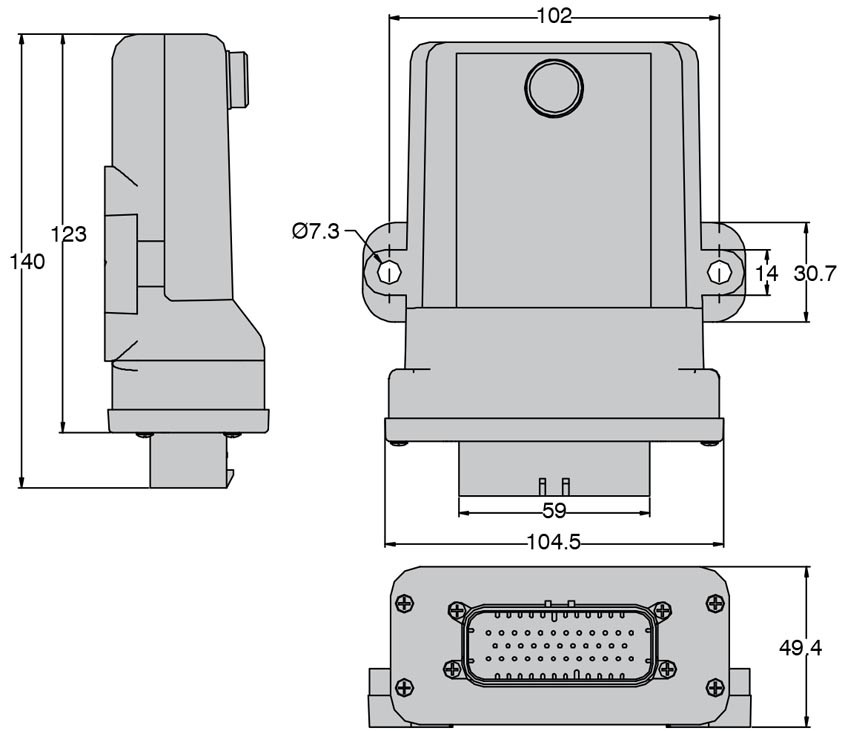

DIMENSIONS MM
205 x 197 x 53 mm
WEIGHT
300 g
INSTALLATION
HORIZONTAL/VERTICAL, 4 SCREWS
EMC STANDARDS BY 89/336 CE CE MARK-EMC EMISSIONI/IMMUNITÀ
EN 61000 - 6 - 3 2006
EN 55022 RF Emission
EN 61000 - 6 - 2 2005
EN 61000 - 4 - 2 Electrostatic Discharge
EN 61000 - 4 - 3 Radio Frequency
EN 61000 - 4 - 4 Burst
EN 61000 - 4 - 6 Conducted disturbance
SAFETY STANDARD ACCORDING ISO 13849-1 MEAN TIME TO DANGEROUS FAILURE MTTFD
18,2
SAFETY STANDARD ACCORDING ISO 13849-1CATEGORY
2
SAFETY STANDARD ACCORDING ISO 13849-1 PERFORMANCE LEVEL PL
Up to D
APPLICATIONS

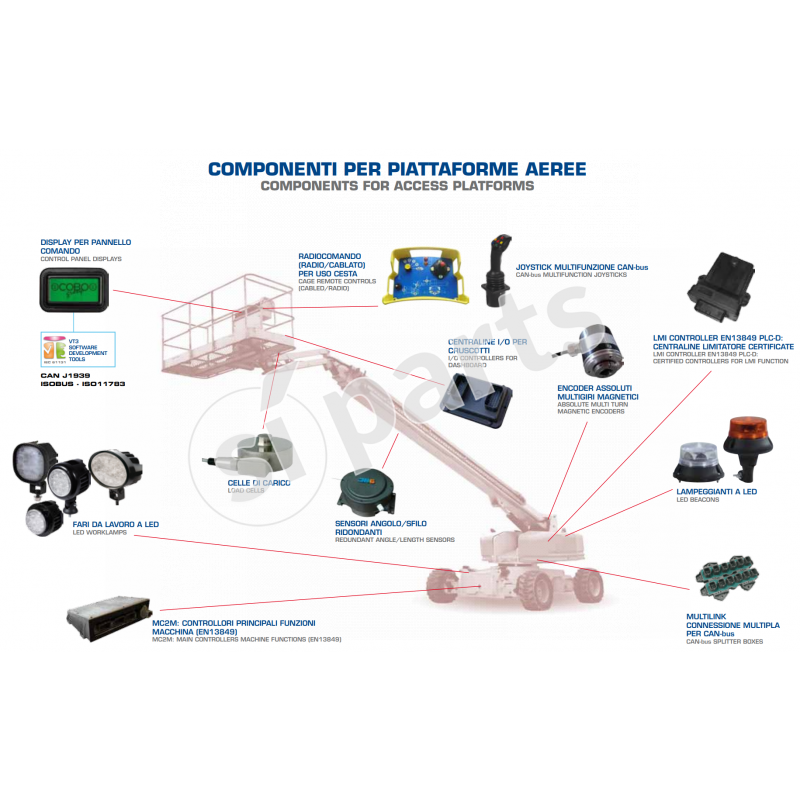

Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
