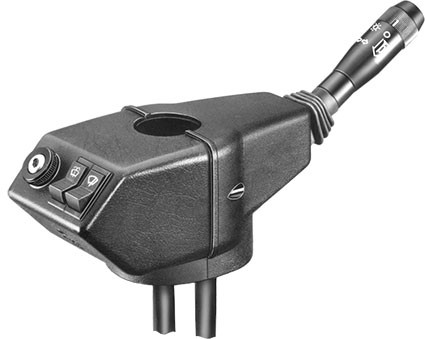

STEERING COLUMN SWITCH

COBO (Original product)
1006642

Code: 01.0874.0000.01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
description
functionpeak load 12vpeak load 24v
horn5a3a
low beam6,5a4,5a
high beam7a5a
flashing7a5a
direction7a5a
main lighting5a3a
length lever mm
201-300
steering height mm
101-200

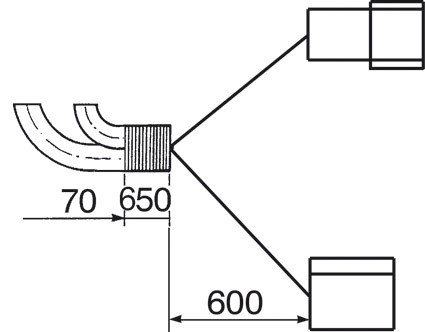

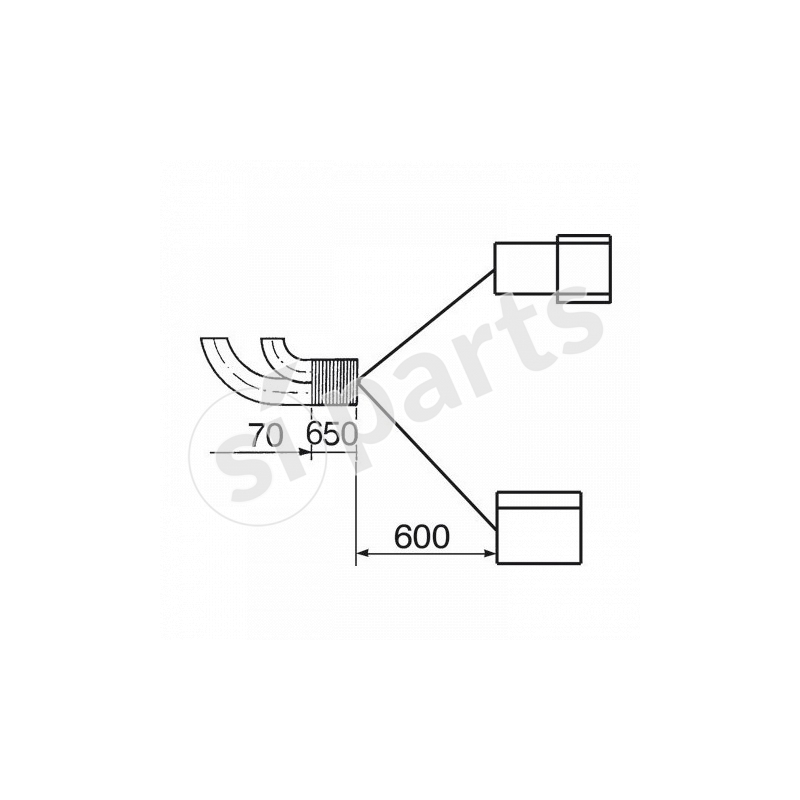

connection length mm
1301-1400
fixing
column 38 mm
type
single
technology
frontali in aria
length lever mm detail
215
steering height mm detail
128
connection length mm detail
1320
model type
serie 190
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
