The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.212.000.01
Doc. Code: 01-212-000-01
€286.45
Tax excluded
(349.47 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers

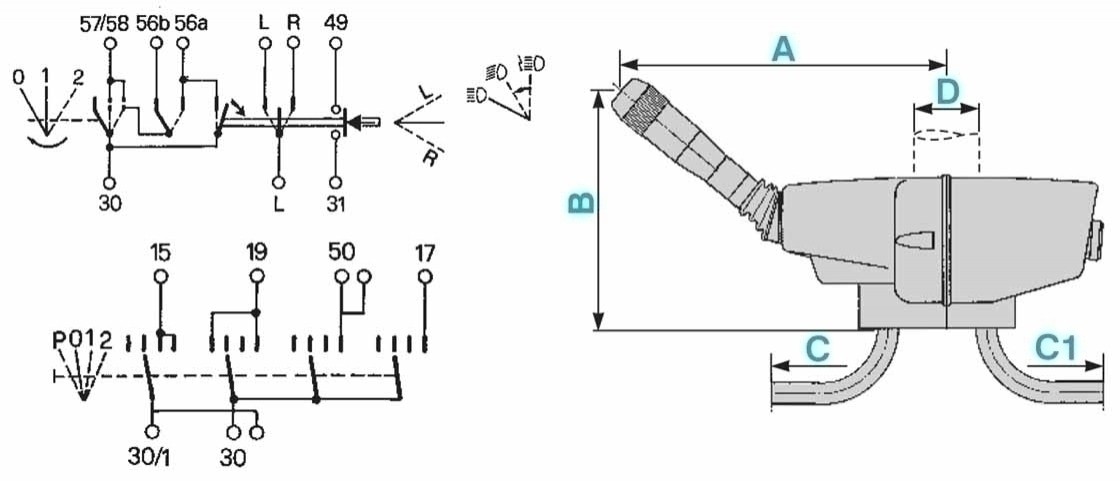

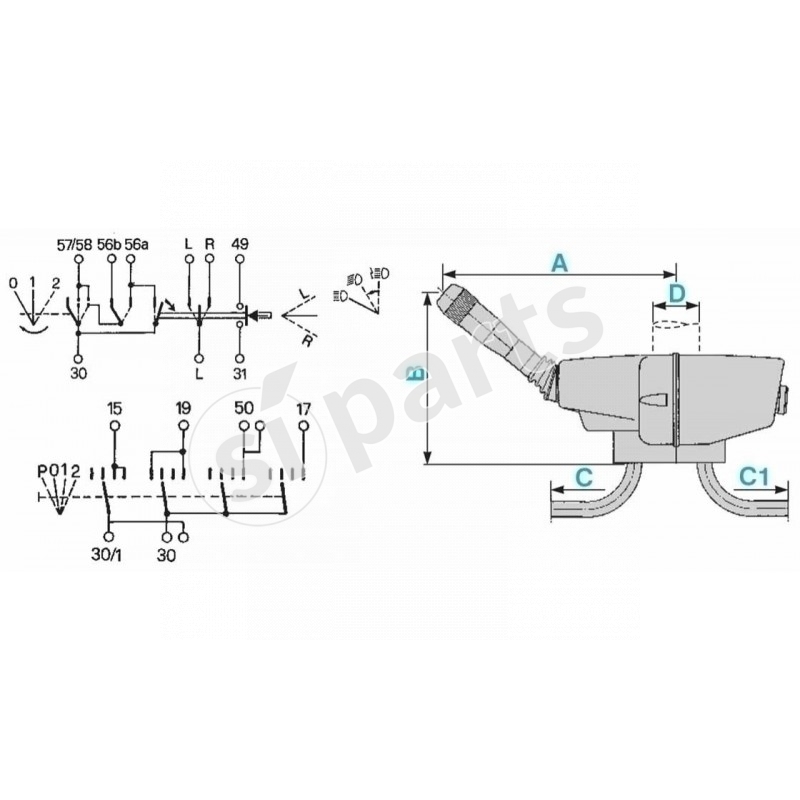

description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |

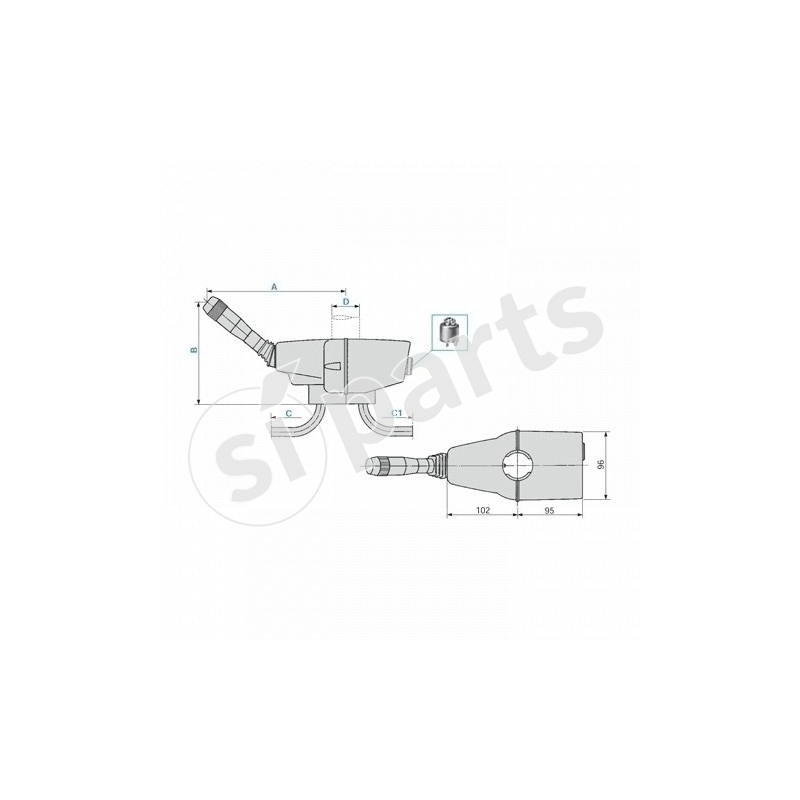

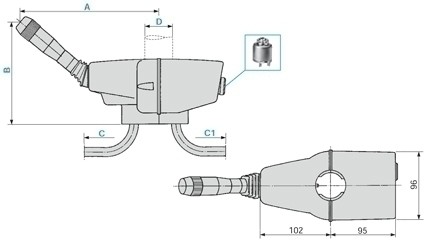

length lever mm
201-300
steering height mm
201-300

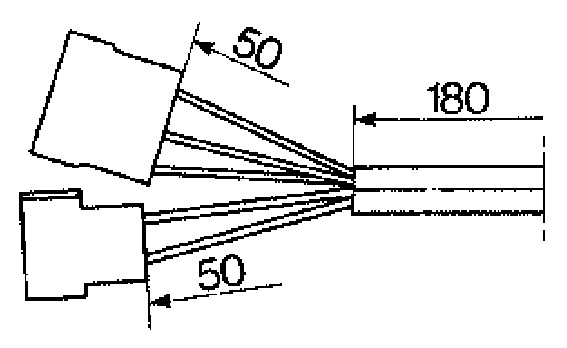

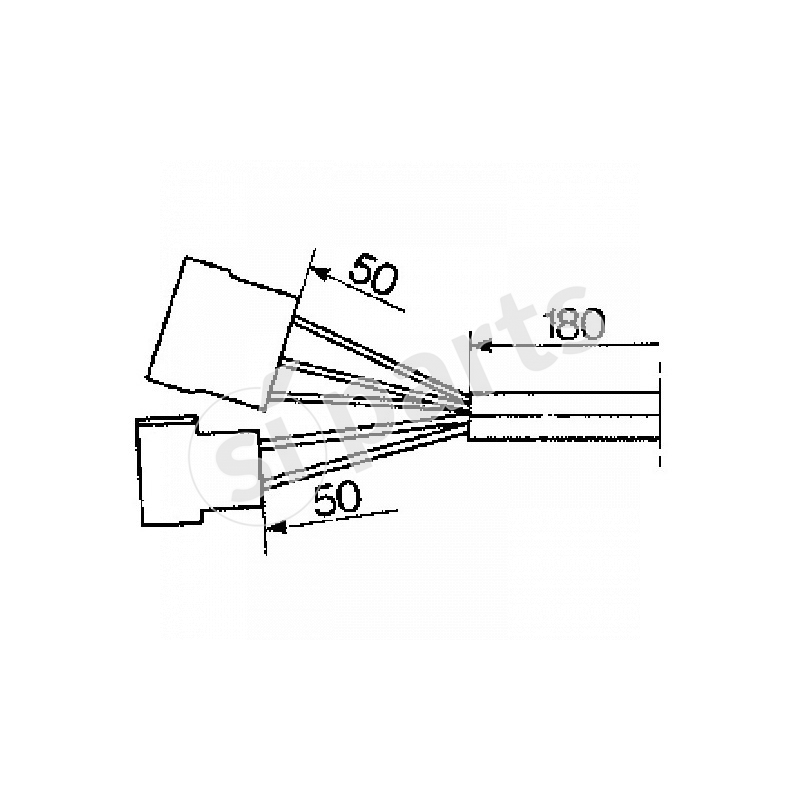

connection length mm
201-300
connection length 1 mm
201-300
fixing
column 38 mm
type
single
technology
frontali in aria
length lever mm detail
215
steering height mm detail
218
connection length mm detail
230
connection length 1 mm detail
230
model type
serie 190
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
