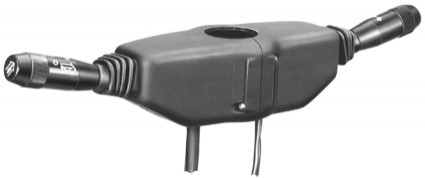

STEERING COLUMN SWITCH

COBO (Original product)
1006545

Code: 01.0783.0000.01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
Description
FUNCTIONPEAK LOAD 12VPEAK LOAD 24V
HORN5A3A
LOW BEAM6,5A4,5A
HIGH BEAM7A5A
FLASHING7A5A
MAIN LIGHTING5A3A
FORWARD GEAR8A5A
REVERSE GEAR8A5A
DIRECTION7A5A
WINDSCREEN WASHER5A3A
WINDSCREEN WIPER 18A5A

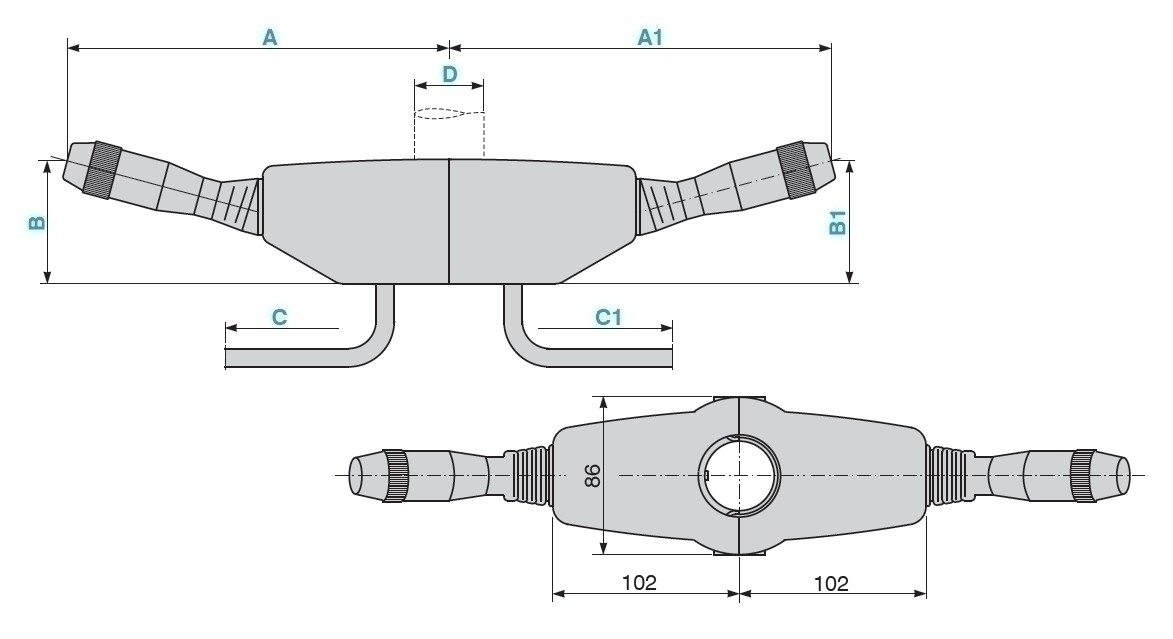

LENGTH LEVER MM
201-300
STEERING HEIGHT MM
0-100
LENGTH LEVER 1 MM
201-300
STEERING HEIGHT 1 MM
0-100
CONNECTION LENGTH MM
301-400
CONNECTION LENGTH 1 MM
301-400
FIXING
COLUMN 45 MM
TYPE
DOPPIO
TECHNOLOGY
FRONTALI IN ARIA
LENGTH LEVER MM DETAIL
209
STEERING HEIGHT MM DETAIL
67
LENGTH LEVER 1 MM DETAIL
203
STEERING HEIGHT 1 MM DETAIL
91
CONNECTION LENGTH MM DETAIL
400
CONNECTION LENGTH 1 MM DETAIL
400
MODEL TYPE
SERIE 190
FUNCTION - HORN
Attivo
FUNCTION - LOW BEAM
Attivo
FUNCTION - HIGH BEAM
Attivo
FUNCTION - FLASHING
Attivo
FUNCTION - DIRECTION
Attivo
FUNCTION - WINDSCREEN WASHER
Attivo
FUNCTION - WINDSCREEN WIPER 1
Attivo
FUNCTION - MAIN LIGHTING
Attivo
FUNCTION - FORWARD GEAR
Attivo
FUNCTION - REVERSE GEAR
Attivo
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
