STEERING COLUMN SWITCH
Code: 01.0825.0000.01
Doc. Code: 01-0825-0000-01
€375.04
Tax excluded
(457.55 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

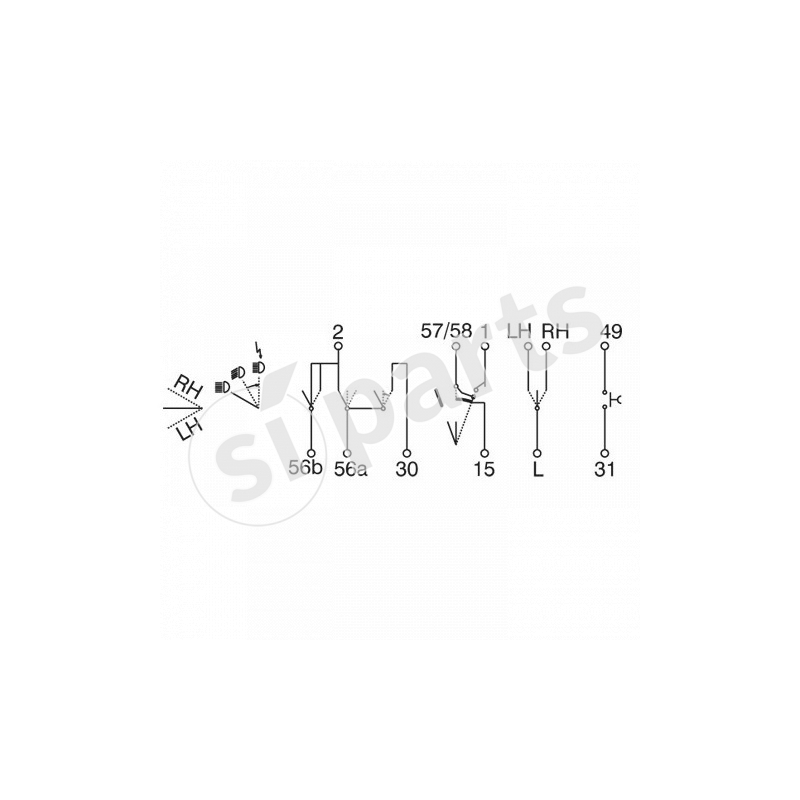

| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 5a | 2,5a |
| windscreen washer | 5a | 2,5a |
| intermittent s | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |
| momentary engine brake | 5a | 2,5a |
| engine brake on | 5a | 2,5a |
length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100

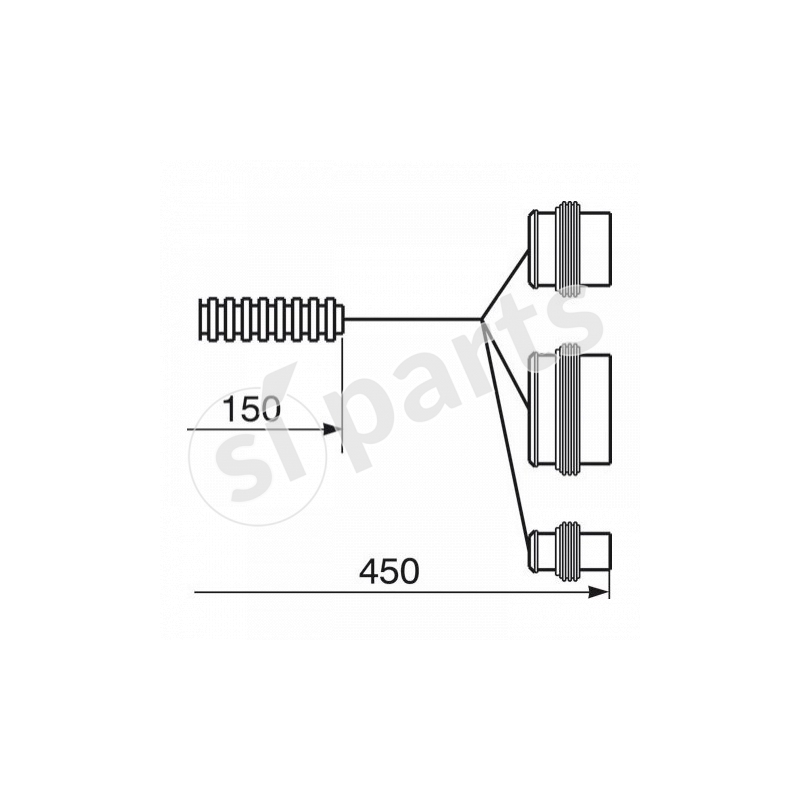

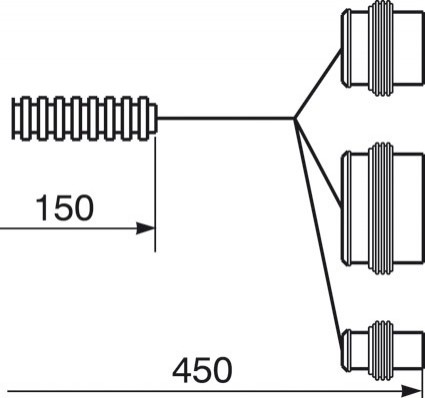

connection length mm
401-500
connection length 1 mm
401-500
fixing
column 45 mm
type
doppio
technology
frontali in aria
length lever mm detail
227
steering height mm detail
50
length lever 1 mm detail
277
steering height 1 mm detail
50
connection length mm detail
450
connection length 1 mm detail
450
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - momentary engine brake
attivo
function - engine brake on
attivo
