The image shown here is for illustrative purposes only.

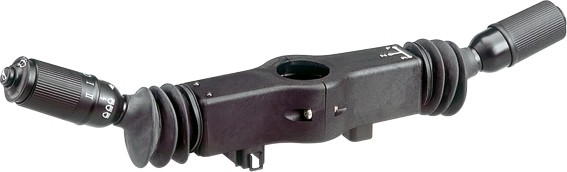

SWITCHES + FORWARD-NEUTRAL-REVERSE SHIFTER + SPEED CONTROL SERIES 2000
Code: 01.1089.0000.01
Doc. Code: 01-1089-0000-01
€433.89
Tax excluded
(529.35 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 3a | 1,5a |
| low beam | 15a | 7a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |
| windscreen washer | 3a | 1,5a |
| intermittent s | 3a | 1,5a |
| windscreen 1 | 3a | 1,5a |
| windscreen 2 | 3a | 1,5a |
| main lighting | 3a | 1,5a |
length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
fixing
column 47,5 mm
type
doppio
technology
frontali in aria
type connection
deutsch 12 vie
deutsch 12 vie

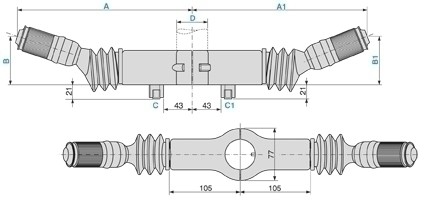

length lever mm detail
236
steering height mm detail
86
length lever 1 mm detail
236
steering height 1 mm detail
84
model type
serie 2000
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - rientro automatico
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - main lighting
attivo
