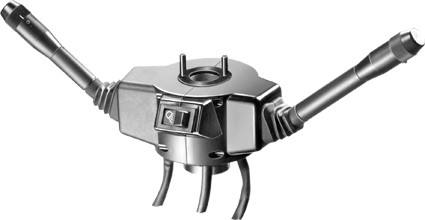

STEERING COLUMN SWITCH
Code: 01.218.000.01
Doc. Code: 01-218-000-01
€265.12
Tax excluded
(323.45 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 3a | 3a |
| windscreen washer | 5a | 3a |
| intermittent s | 1,8a | 1a |
| windscreen 1 | 8a | 5a |
| windscreen 2 | 9a | 6a |

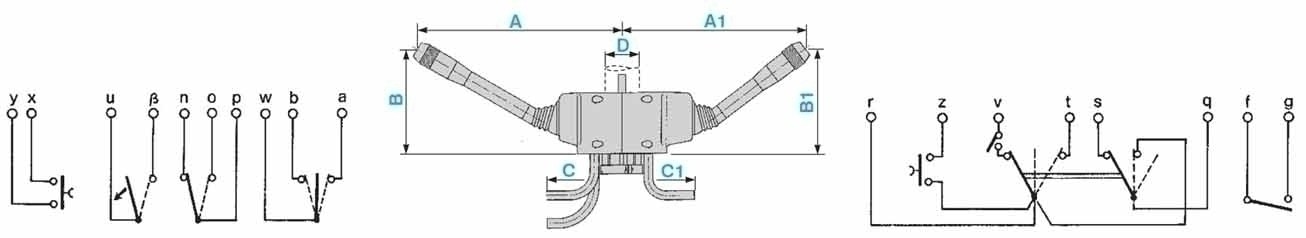

length lever mm
201-300
steering height mm
101-200
connection length mm
401-500
length lever 1 mm
201-300
steering height 1 mm
101-200
connection length 1 mm
401-500
fixing
column 32 mm
type
doppio
technology
frontali in aria
length lever mm detail
265
steering height mm detail
155
connection length mm detail
460
length lever 1 mm detail
235
steering height 1 mm detail
160
connection length 1 mm detail
460
colour
black
model type
serie 246
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - rientro automatico
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - main lighting
attivo
