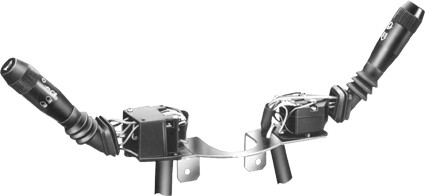

STEERING COLUMN SWITCH

COBO (Original product)
1007154

Code: 01.221.000.01

Doc. Code: 01-221-000-01

€190.11
tax excluded

(231.93 € tax incl.)

Quantity

Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
Description
FUNCTIONPEAK LOAD 12VPEAK LOAD 24V
HORN5A3A
LOW BEAM6,5A4,5A
HIGH BEAM7A5A
FLASHING5A3A
DIRECTION7A5A
MAIN LIGHTING5A3A
WINDSCREEN WASHER18A3A
WINDSCREEN WIPER 18A5A
WINDSCREEN WIPER 29A6A
WINDSCREEN WIPER 39A6A

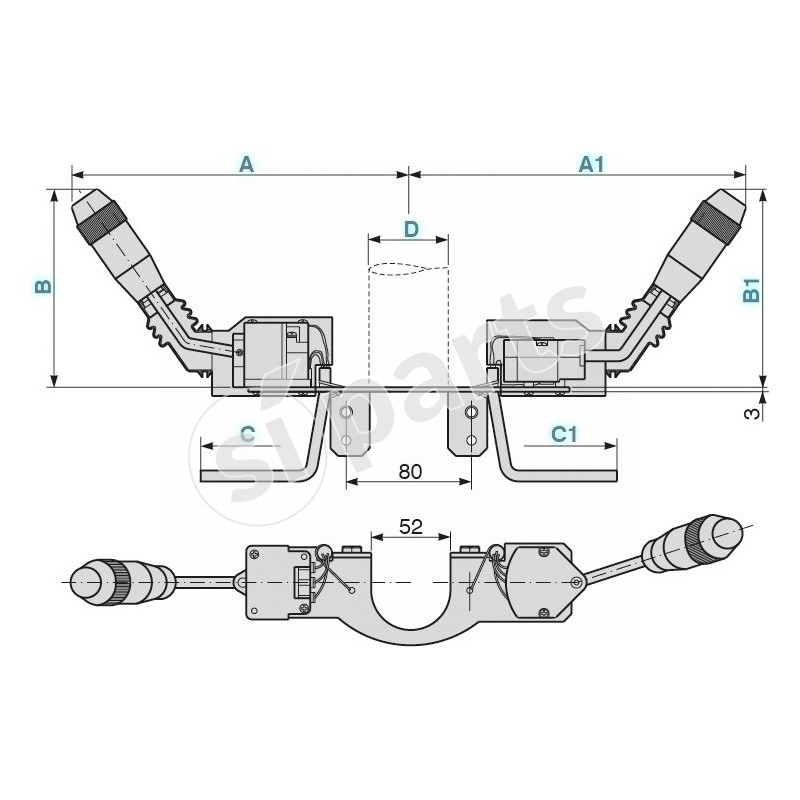

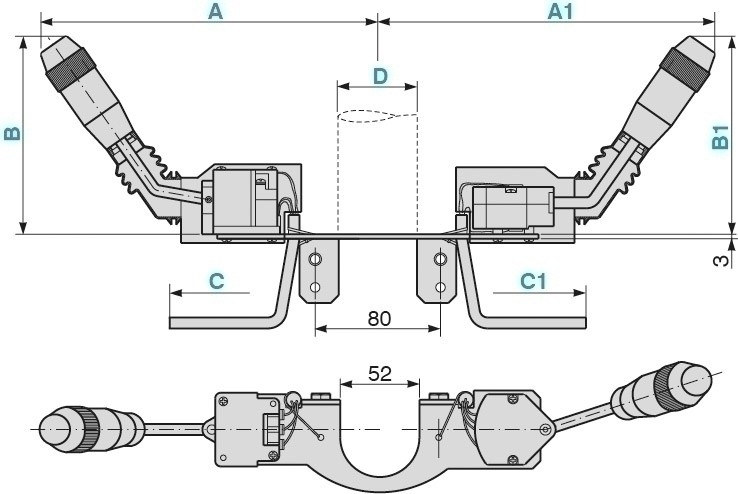

LENGTH LEVER MM
201-300
STEERING HEIGHT MM
101-200
LENGTH LEVER 1 MM
201-300
STEERING HEIGHT 1 MM
101-200
CONNECTION LENGTH MM
1001-1100
CONNECTION LENGTH 1 MM
1001-1100
FIXING
COLUMN 50 MM
TYPE
DOPPIO
TECHNOLOGY
FRONTALI IN ARIA
LENGTH LEVER MM DETAIL
215
STEERING HEIGHT MM DETAIL
128
LENGTH LEVER 1 MM DETAIL
210
STEERING HEIGHT 1 MM DETAIL
128
CONNECTION LENGTH MM DETAIL
1070
CONNECTION LENGTH 1 MM DETAIL
1070
MODEL TYPE
SERIE 190
TYPE OF INTERIOR LEVER
METALLIC
LEVER COVERING
POLYAMIDE + FUNCTIONS SYMBOLS
TYPE OF CAP
NEOPRENE RUBBER
PROTECTION HOUSING
POLYAMIDE
REST BRACKET
ZINC-PLATED STEEL
COLOR OF CAP
BLACK
FUNCTION - HORN
Attivo
FUNCTION - LOW BEAM
Attivo
FUNCTION - HIGH BEAM
Attivo
FUNCTION - FLASHING
Attivo
FUNCTION - DIRECTION
Attivo
FUNCTION - RIENTRO AUTOMATICO
Attivo
FUNCTION - WINDSCREEN WASHER
Attivo
FUNCTION - WINDSCREEN WIPER 1
Attivo
FUNCTION - WINDSCREEN WIPER 2
Attivo
FUNCTION - WINDSCREEN WIPER 3
Attivo
FUNCTION - MAIN LIGHTING
Attivo
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
