The image shown here is for illustrative purposes only.

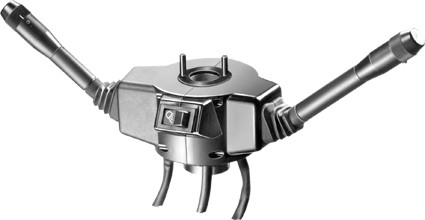

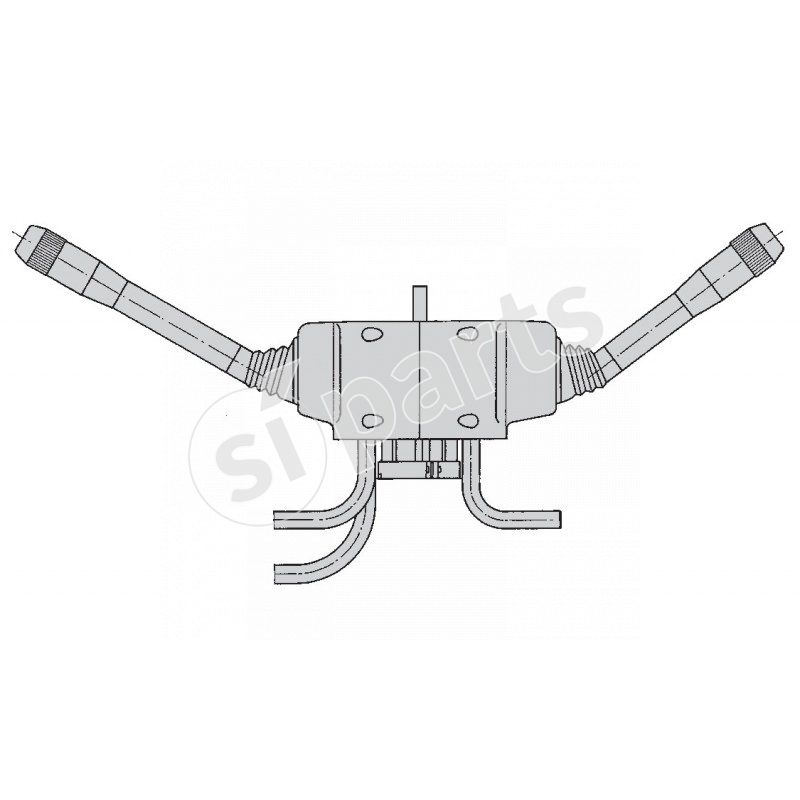

STEERING COLUMN SWITCH
Code: 01.266.000.01
Doc. Code: 01-266-000-01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 3a | 3a |
| windscreen washer | 5a | 3a |
| intermittent s | 1,8a | 1a |
| windscreen 1 | 8a | 5a |
| windscreen 2 | 9a | 6a |
length lever mm
201-300
steering height mm
101-200
connection length mm
801-900
length lever 1 mm
201-300
steering height 1 mm
101-200
connection length 1 mm
801-900
fixing
column 32 mm
type
doppio
technology
frontali in aria
length lever mm detail
277
steering height mm detail
110
connection length mm detail
900
length lever 1 mm detail
252
steering height 1 mm detail
120
connection length 1 mm detail
900
colour
black
model type
serie 246
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - rientro automatico
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - main lighting
attivo
