The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.450.000.01
Doc. Code: 01-450-000-01
€584.00
Tax excluded
(712.48 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |
| main lighting | 5a | 2,5a |
| windscreen washer | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |
| tergilava lunotto | 5a | 2,5a |
| tergilunotto | 5a | 2,5a |

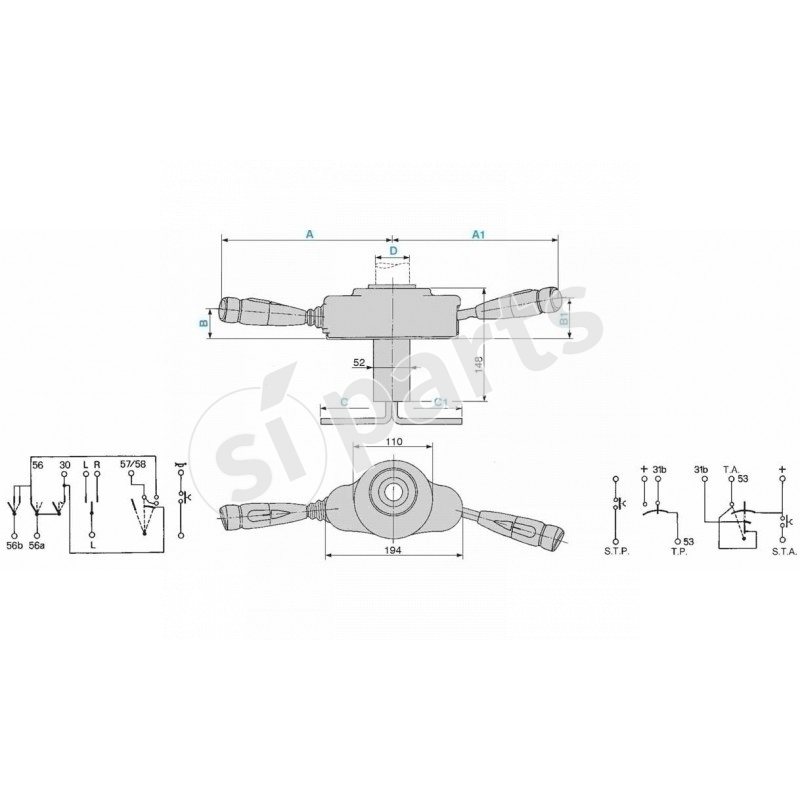

length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length mm
301-400
connection length 1 mm
301-400
fixing
column 45 mm
type
doppio
technology
frontali in aria
length lever mm detail
242
steering height mm detail
28
length lever 1 mm detail
234
steering height 1 mm detail
10
connection length mm detail
350
connection length 1 mm detail
350
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - main lighting
attivo
function - tergilunotto
attivo
function - tergilava lunotto
attivo
