The image shown here is for illustrative purposes only.

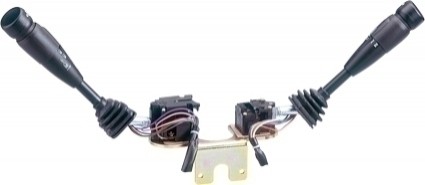

STEERING COLUMN SWITCH
Code: 01.520.000.01
Doc. Code: 01-520-000-01
€762.60
Tax excluded
(930.37 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 2,5a |
| low beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |
| windscreen washer | 5a | 2,5a |
| intermittent s | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |

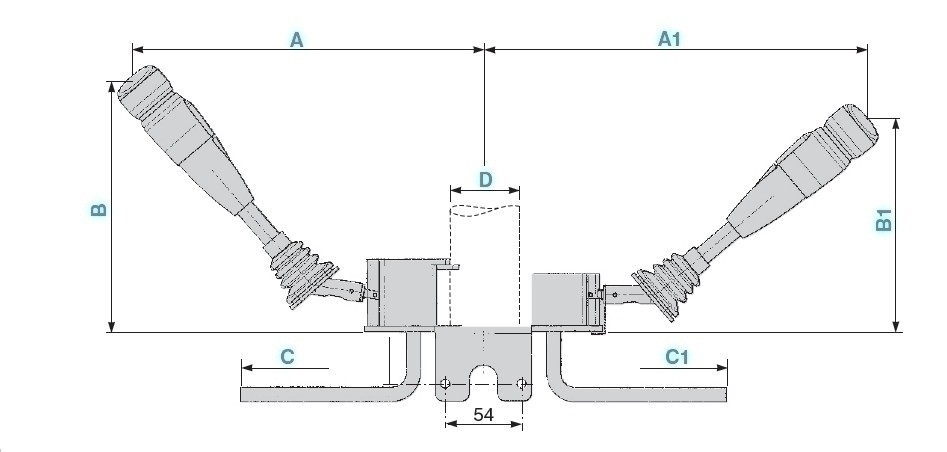

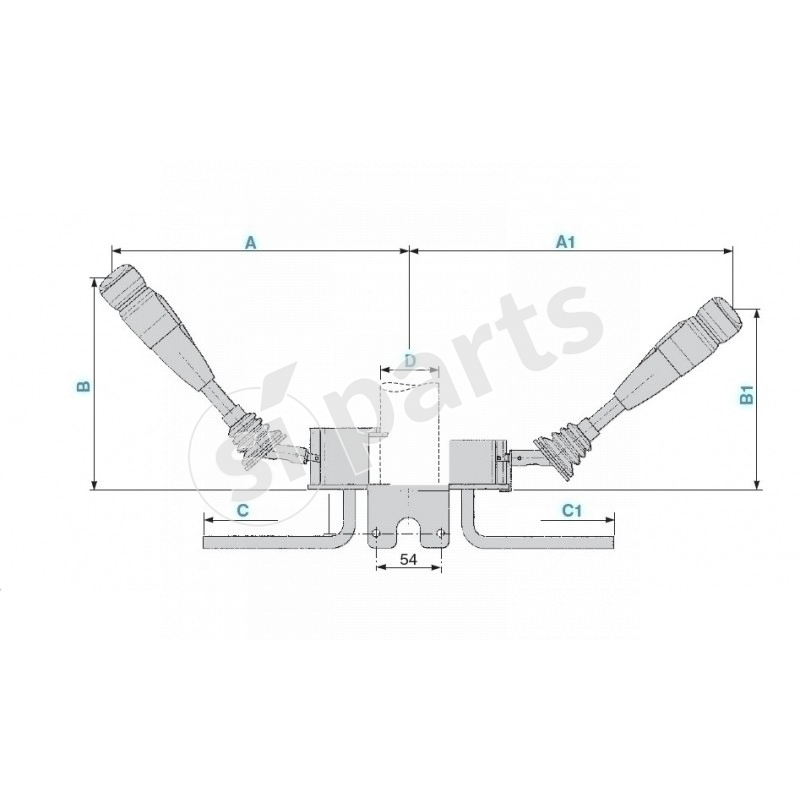

length lever mm
201-300
steering height mm
101-200
length lever 1 mm
201-300
steering height 1 mm
101-200
connection length mm
201-300
connection length 1 mm
201-300
fixing
column 50 mm
type
doppio
technology
frontali in aria
length lever mm detail
245
steering height mm detail
180
length lever 1 mm detail
270
steering height 1 mm detail
150
connection length mm detail
300
connection length 1 mm detail
300
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
