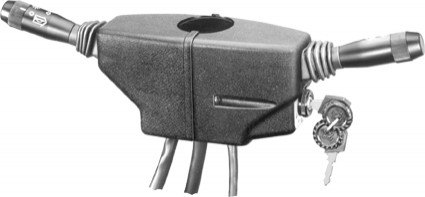

STEERING COLUMN SWITCH

COBO (Original product)
1007701

Code: 01.540.000.01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
description
functionpeak load 12vpeak load 24v
horn5a3a
low beam6,5a4,5a
high beam7a5a
flashing7a5a
direction7a5a
main lighting5a3a
windscreen washer5a3a
windscreen 18a5a
windscreen 29a6a
windscreen 39a6a
length lever mm
201-300
steering height mm
101-200
length lever 1 mm
201-300
steering height 1 mm
101-200
connection length mm
201-300
connection length 1 mm
201-300
fixing
column 38 mm
type
doppio
technology
frontali in aria
length lever mm detail
210
steering height mm detail
102
length lever 1 mm detail
210
steering height 1 mm detail
102

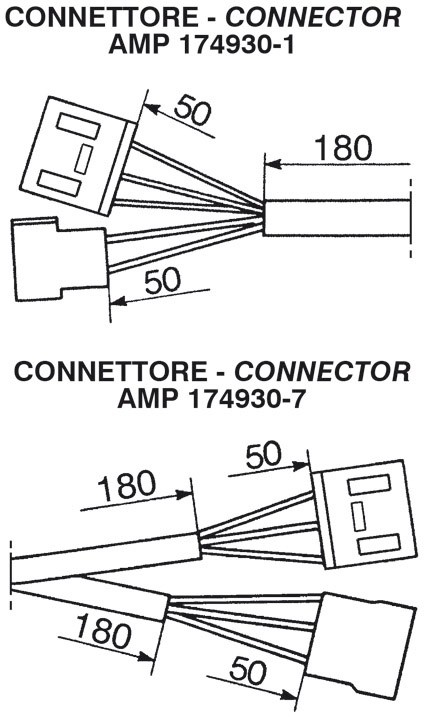

connection length mm detail
230
connection length 1 mm detail
230
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - windscreen 3
attivo
function - main lighting
attivo
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
