The image shown here is for illustrative purposes only.

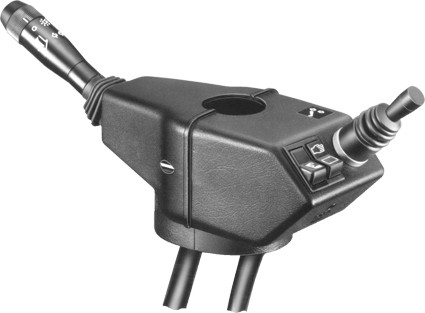

STEERING COLUMN SWITCH
Code: 01.0630.0000.02
Doc. Code: 01-0630-0000-02
Pack 15 pieces.
€11,536.50
(€769.10 Cad.)
Tax excluded
(14074.53 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5 | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
| boom lifting | 10a | 10a |
length lever mm
201-300
steering height mm
101-200
connection length mm
801-900
fixing
column 38 mm
type
single
technology
frontali in aria
length lever mm detail
215
steering height mm detail
110
connection length mm detail
820
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - boom lifting
attivo
