The image shown here is for illustrative purposes only.

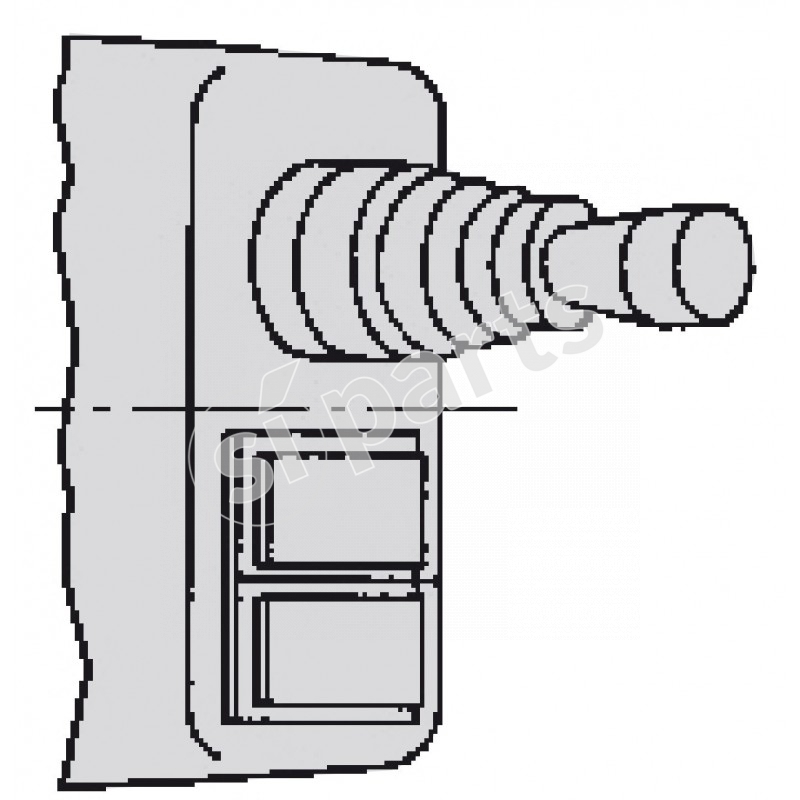

STEERING COLUMN SWITCH
Code: 01.396.000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5 | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
| boom lifting | 10a | 10a |
length lever mm
201-300
steering height mm
101-200
length lever 1 mm
101-200
steering height 1 mm
101-200
connection length mm
801-900
connection length 1 mm
801-900
fixing
column 38 mm
type
doppio
technology
frontali in aria
length lever mm detail
215
steering height mm detail
110
length lever 1 mm detail
133
steering height 1 mm detail
109
connection length mm detail
840
connection length 1 mm detail
840
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - boom lifting
attivo
